VLT® Decentral Drive FCD 302
Operating Guide

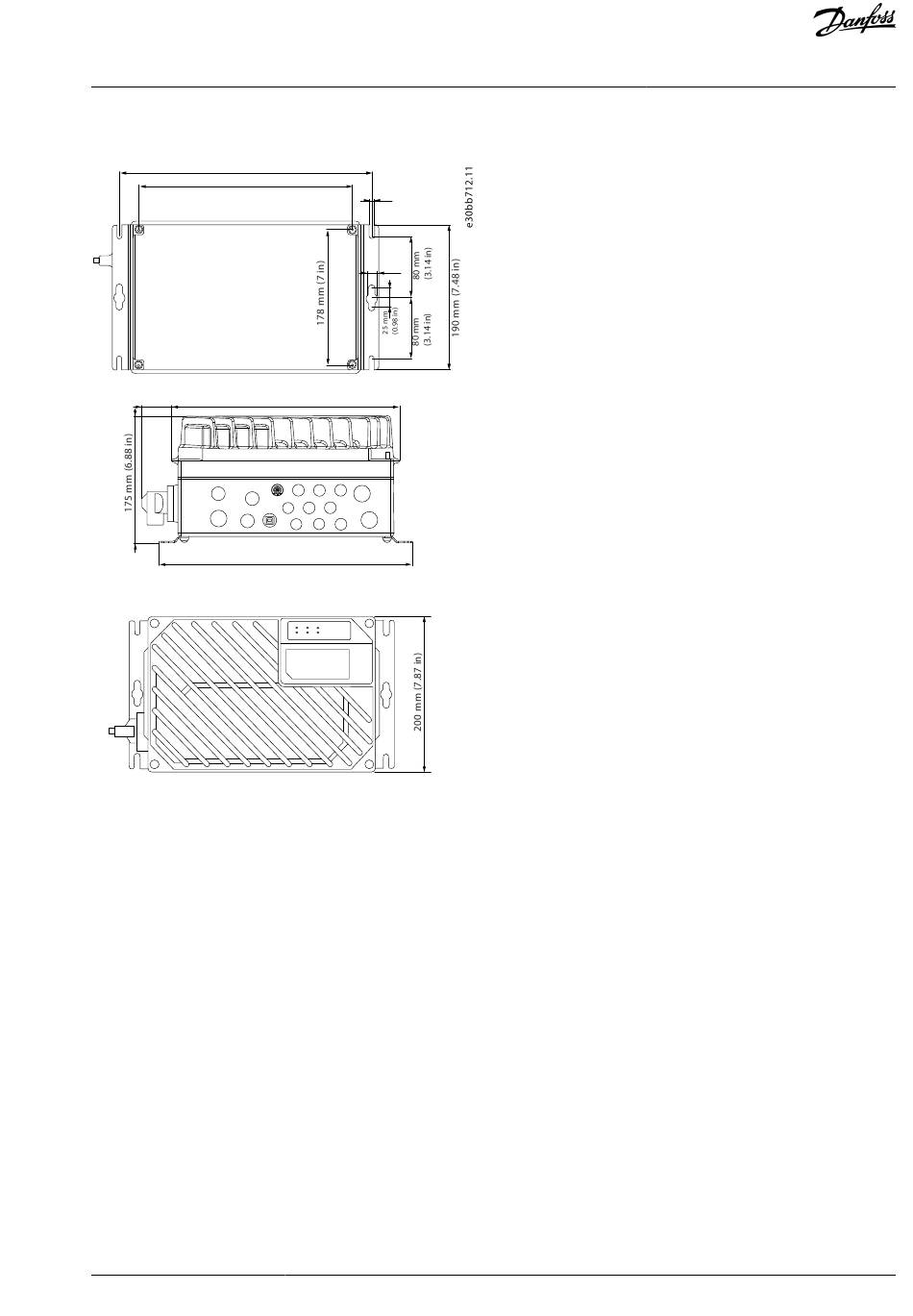

7.8 Mechanical Dimensions
331.5 mm (13.05 in)
280 mm (11.02 in)
41 mm
(1.61 in)
315 mm (12.4 in)
349.5 mm (13.75 in)
Illustration 30: Cable Entries and Hole Sizes (Small Unit)
Danfoss A/S © | 2020.07
6.5 mm
(0.25 in)
Ø13 mm
(0,51 in)
ON
WARNING
ALARM
Bus MS
NS1
NS2
Specifications
AQ267036816112EN-000101 / 130R0208 | 67
