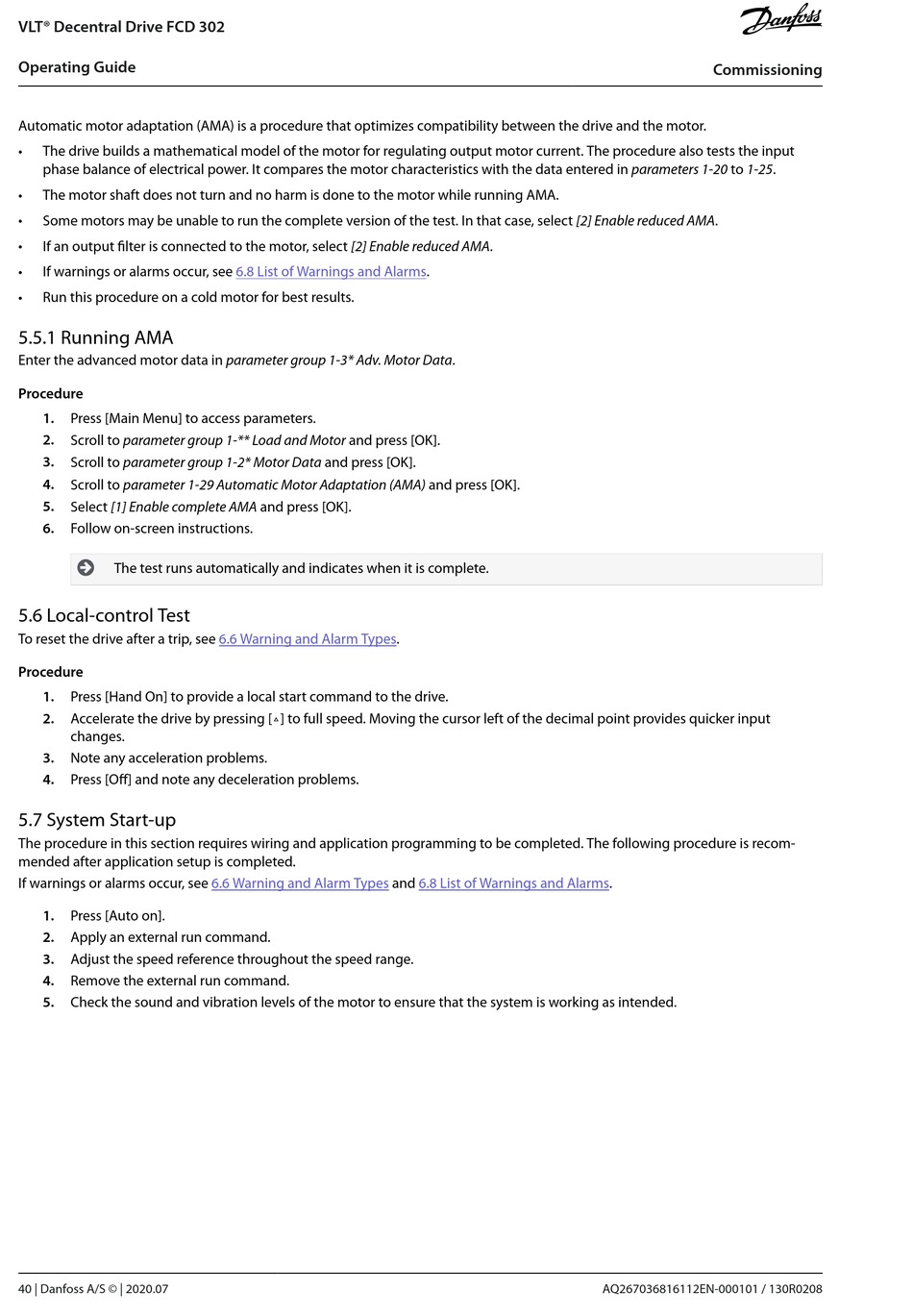

VLT® Decentral Drive FCD 302
Operating Guide
Automatic motor adaptation (AMA) is a procedure that optimizes compatibility between the drive and the motor.
• The drive builds a mathematical model of the motor for regulating output motor current. The procedure also tests the input
phase balance of electrical power. It compares the motor characteristics with the data entered in parameters 1-20 to 1-25.
• The motor shaft does not turn and no harm is done to the motor while running AMA.
•
Some motors may be unable to run the complete version of the test. In that case, select [2] Enable reduced AMA.
•
If an output filter is connected to the motor, select [2] Enable reduced AMA.
• If warnings or alarms occur, see
• Run this procedure on a cold motor for best results.

5.5.1 Running AMA

Enter the advanced motor data in parameter group 1-3* Adv. Motor Data.
Procedure
1.
Press [Main Menu] to access parameters.
2.
Scroll to parameter group 1-** Load and Motor and press [OK].
3.
Scroll to parameter group 1-2* Motor Data and press [OK].
4.
Scroll to parameter 1-29 Automatic Motor Adaptation (AMA) and press [OK].
5.
Select [1] Enable complete AMA and press [OK].
6. Follow on-screen instructions.

The test runs automatically and indicates when it is complete.

5.6 Local-control Test

To reset the drive after a trip, see
Procedure
1.
Press [Hand On] to provide a local start command to the drive.
2. Accelerate the drive by pressing [▵] to full speed. Moving the cursor left of the decimal point provides quicker input
changes.
3. Note any acceleration problems.
4. Press [Off] and note any deceleration problems.

5.7 System Start-up

The procedure in this section requires wiring and application programming to be completed. The following procedure is recom-
mended after application setup is completed.
If warnings or alarms occur, see
1.
Press [Auto on].
2. Apply an external run command.
3.
Adjust the speed reference throughout the speed range.
4. Remove the external run command.
5.
Check the sound and vibration levels of the motor to ensure that the system is working as intended.
40 | Danfoss A/S © | 2020.07
6.8 List of Warnings and Alarms.
6.6 Warning and Alarm Types.
6.6 Warning and Alarm Types and 6.8 List of Warnings and
Commissioning
Alarms.
AQ267036816112EN-000101 / 130R0208
