6.3 Toolbar and Button Definitions
6.3.7

Records Toolbar

The records toolbar allows you to move forward and backward through a PSCSV file for specific
records. Records are noted with a date and time stamp shown in the window.
6.3.8

View Menu

Use the View Menu to control the appearance of data streaming from the Model 1133A. Items that
can be controlled are:
Time Format: Allows the time format accompanying data in either Local or UTC.
Data Filters: Controls the data being viewed on the screen.
Waveform Smoothing: Reduces discontinuities in waveform data.
Time Interval: Changes the time scale for waveform and phasor data - similar to an oscilloscope –
to expand or compress the horizontal scale. Certain values are only available under preset viewing
conditions.
View As: Allows you to view most data in real time or spreadsheet, harmonics also as vertical
bars and phasors as a vector or frequency plot.
Toolbars: Switch any (or all) of the toolbars ON or OFF.
6.3.9

Edit Menu

Copy: Copies the selected data to the clipboard.
Select All: Selects all of the data in the Data Window.
Preferences: Allows you to select the Time as either Local or UTC, Daylight Saving Time
changeovers, colors of the data (graphical or tabular), and font style and size.

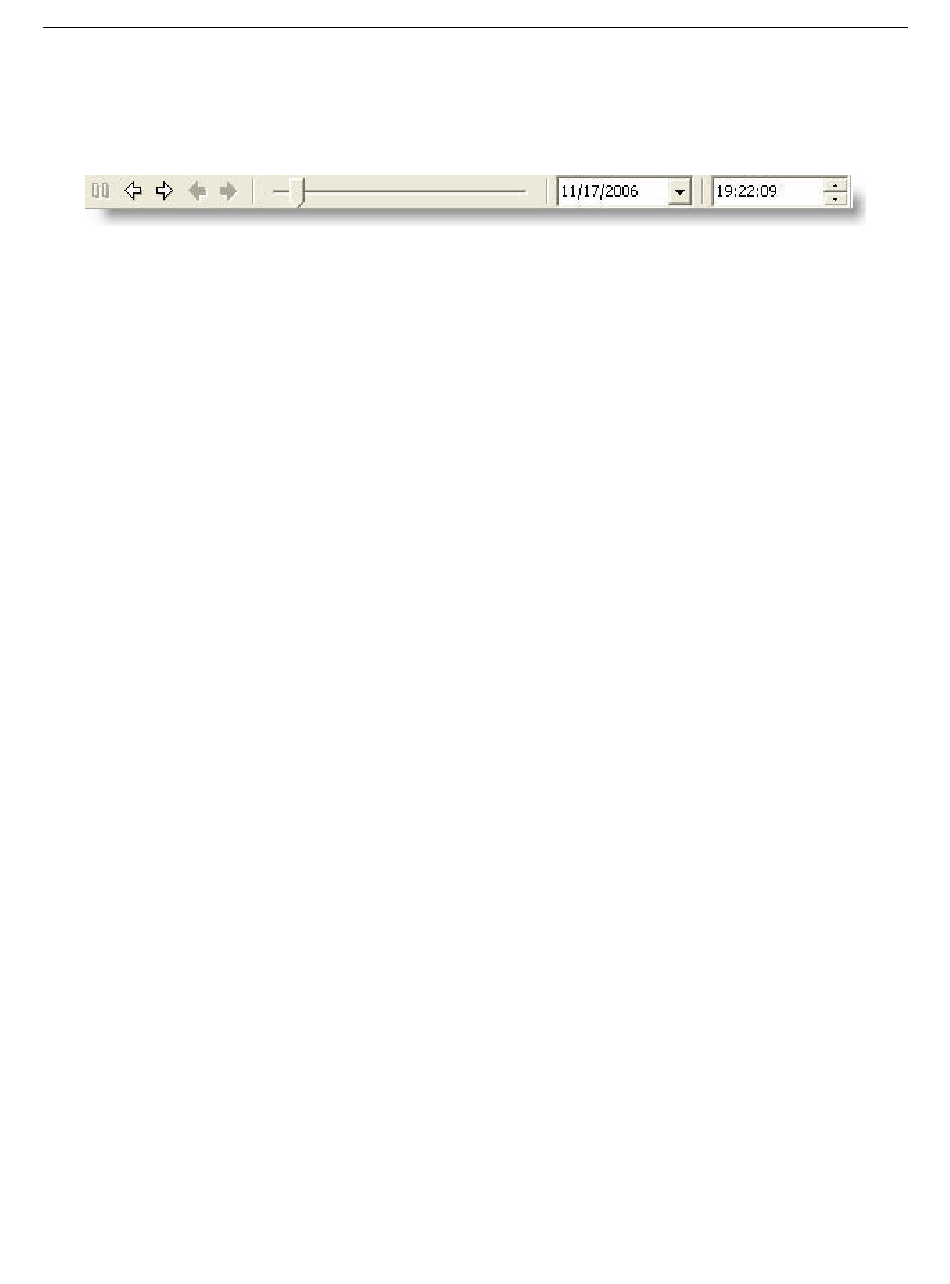

Figure 6.8: Records Toolbar
