Connecting Inlet Power, Input and Output Signals
1133A Single-Phase, Two-Wire, One and One Half Element Circuits with Current and
Potential Transformers

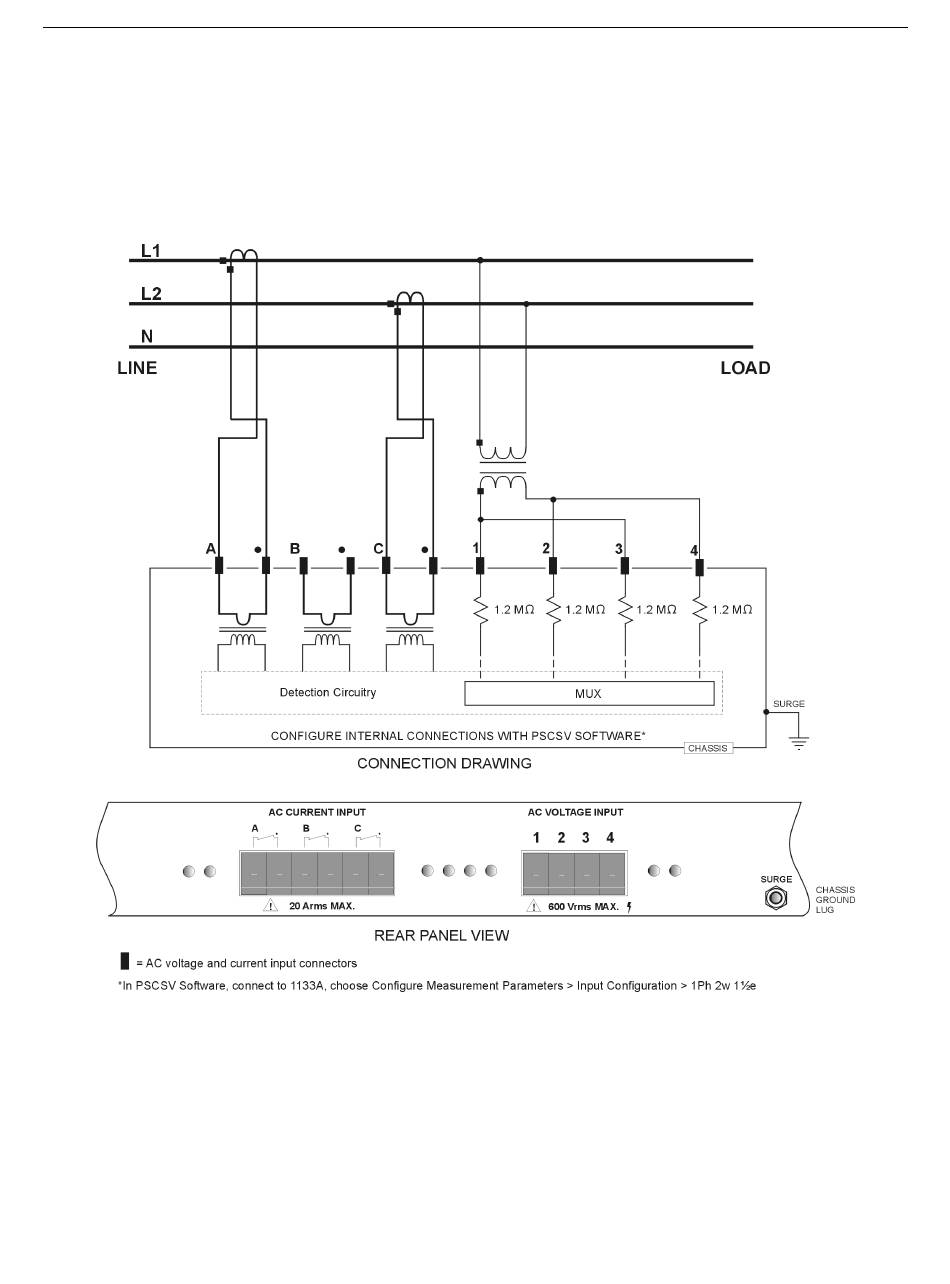

Figure 3.4: Connection Diagram – DSP Notation, 1Ph2W1.5E
