3.2 Connecting Voltage and Current Signals
13
1133A Single-Phase, Two-Wire, One-Element Circuits with Current and Potential
Transformers

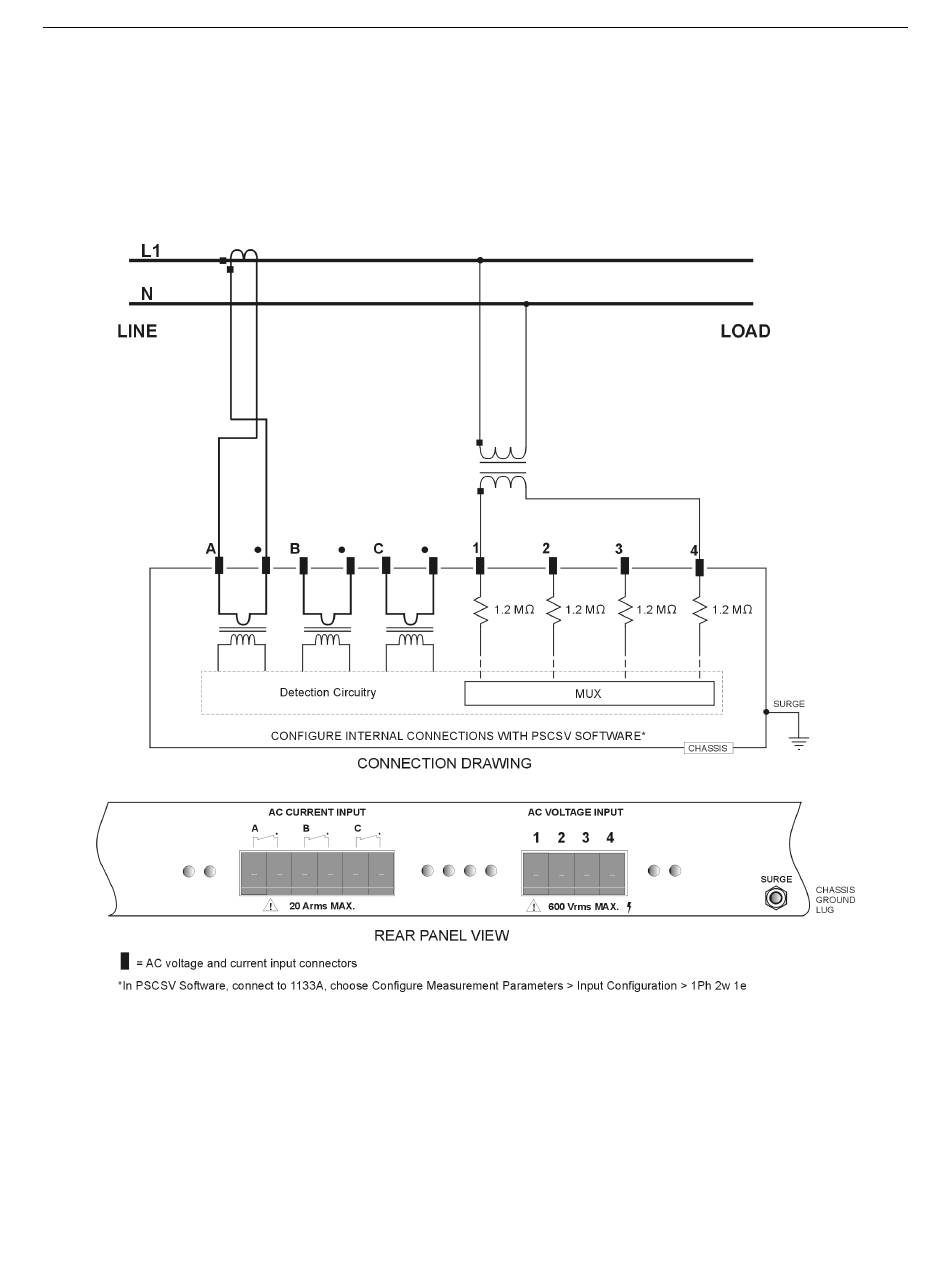

Figure 3.3: Connection Diagram – DSP Notation, 1Ph2W1E
