3.2 Connecting Voltage and Current Signals
15
1133A Single-Phase, Three-Wire, Two Element Circuits with Current and Potential
Transformers

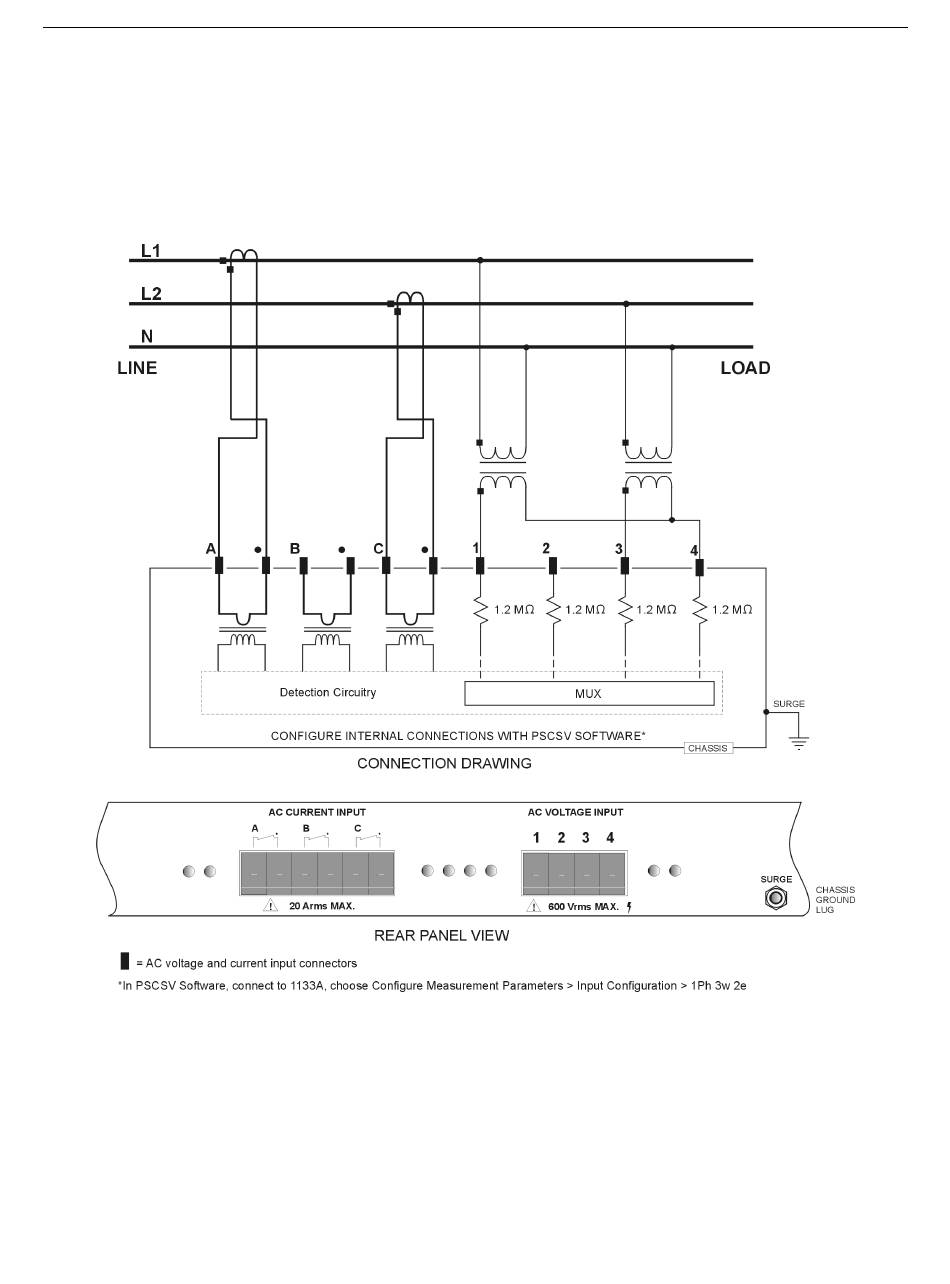

Figure 3.5: Connection Diagram – DSP Notation, 1Ph3W2E
