5.2 Overview of Command Keys
Status, Location; Latitude and Longitude
Press the Status/Time key to reveal geographical position with no elevation. Location provides
GNSS antenna position only, it is not available with IRIG-B input (Option 7).

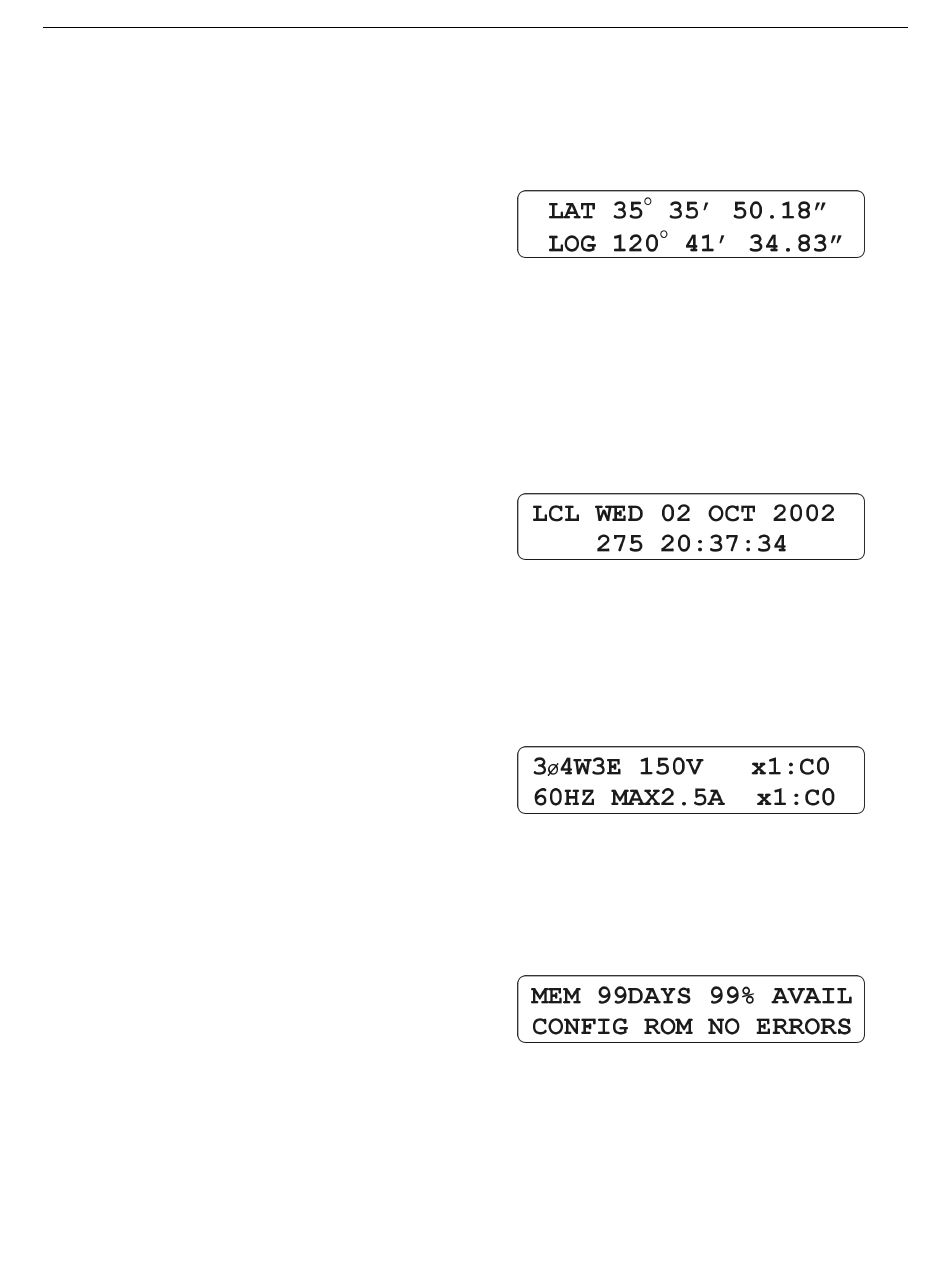

Figure 5.9: Status, Location: Latitude and
Longitude
Status, Date and Time - UTC or Local
Pressing the Status/Time key will display the date and time in UTC or Local time format. It also
indicates the Julian Day. Use PSCSV to configure the time format for either UTC or Local. Time
and Date information, in both UTC and Local format, accompanies all data, whether broadcast or
recorded in Flash through an internal trigger or a data register.
Figure 5.10: Status, Date and Time
Status, Mode, Range and Electrical Configuration
This status display includes the electrical configuration (e.g. 3 phase, 4-wire, 3-element), system
frequency and input signal ranges.
Figure 5.11: Status, 1133A Configuration
Status, Flash Memory
Indicates memory available in recording time, percent available and ROM error status.
Figure 5.12: Status, 1133A Flash Memory
