2.2.2 Command Key Definitions
All command keys provide multiple messages. Press the specific key repeatedly to scroll through
the various displays. For example, press the Voltage/Current key (upper left) to scroll through
the configured voltages and currents, including sequence components. Note that these keys DO
NOT allow you to configure any of the internal functions of the 1133A. Always configure the 1133A
through PSCSV, the dedicated software application.
Key
VOLTAGE/ CURRENT
FREQ./TIME DEVIATION
EVENT LOG
STATUS/TIME
POWER
ENERGY
HARMONICS
FLICKER
2.3 Rear Panel Connectors and Identification
This section contains information to assist you in identifying where to connect all of the input and
output cables on the Model 1133A. Figure 2.2 illustrates the 1133A rear panel.
Function
View all voltages and currents, including
sequence components.
View frequency, frequency deviation and
time deviation.
View recorded sequential events.
Primary: View GNSS or IRIG-B informa-
tion, position, time and date, system config-
uration and memory status.
Secondary:
dates, Ethernet settings and parameters, in-
ternal hardware address, serial port parame-
ters.
View all power related parameters.
View all energy-related parameters
View harmonic-related parameters
View all flicker-related parameters
Table 2.3: Command Key Definitions

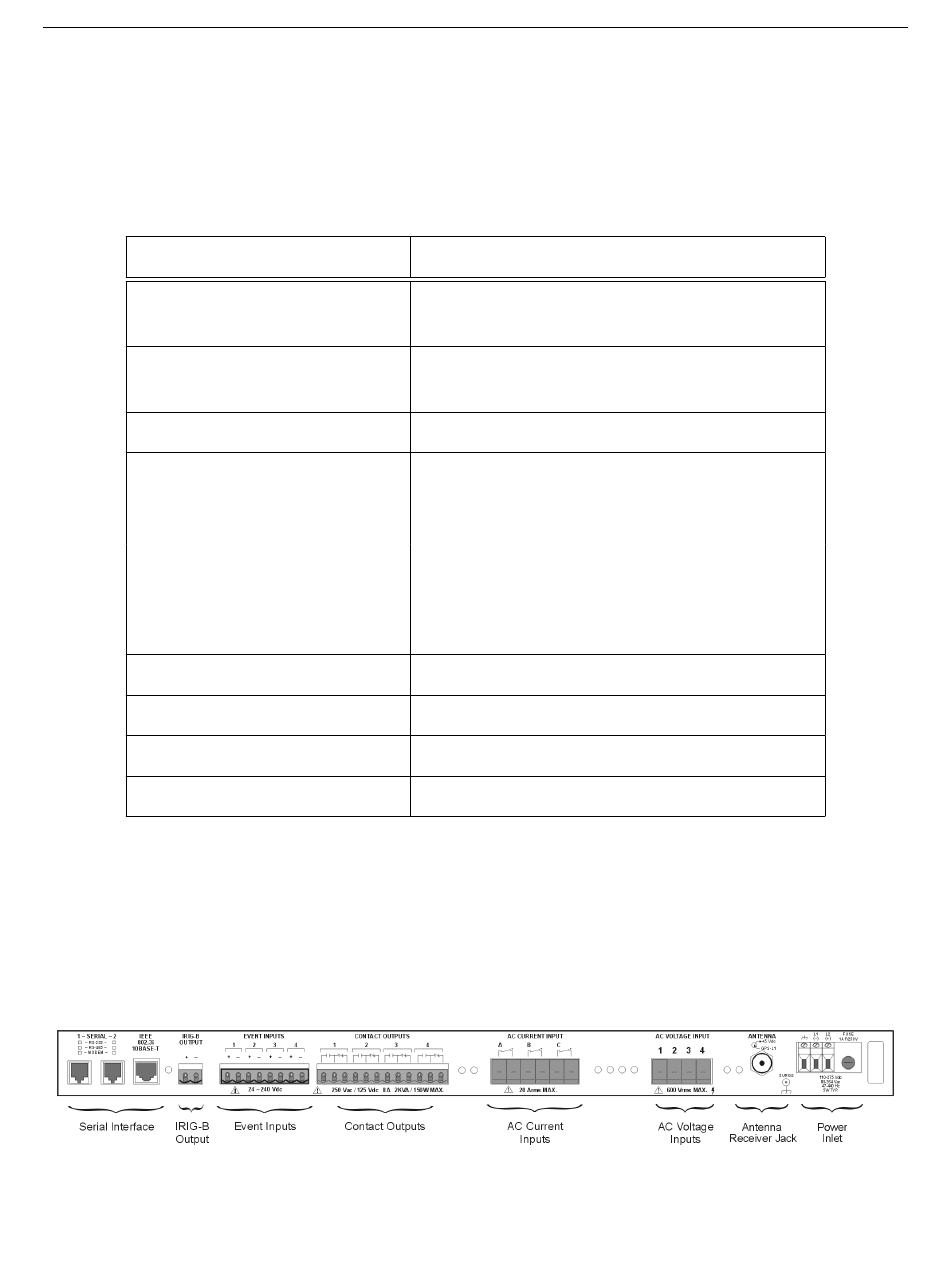

Figure 2.2: Model 1133A Rear Panel Description
Front and Rear Panels
View serial number, firmware
