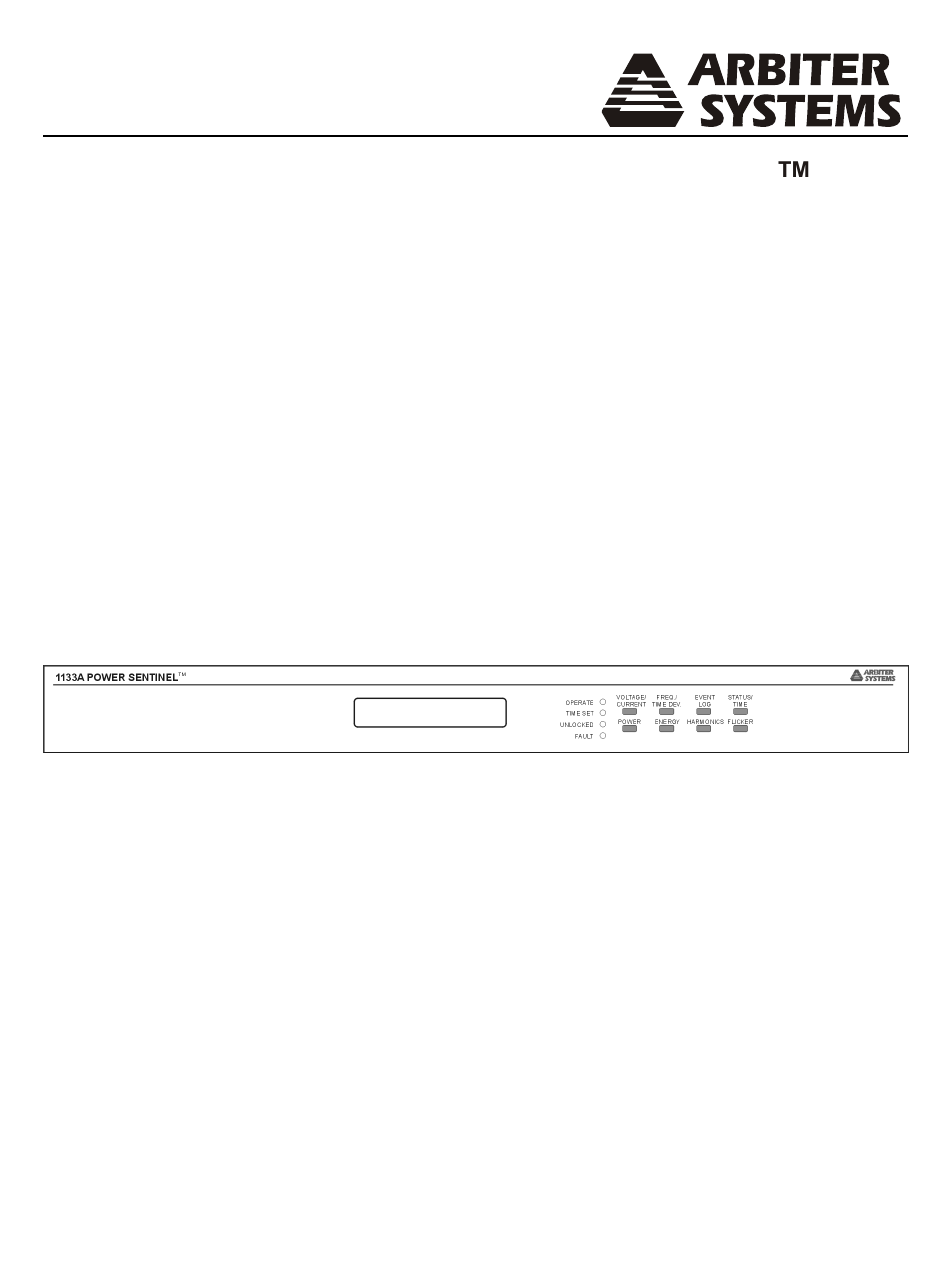

Page 1 MODEL 1133A POWER SENTINEL GPS-SYNCHRONIZED POWER QUALITY REVENUE STANDARD OPERATION MANUAL ARBITER SYSTEMS, INC. PASO ROBLES, CA 93446 U.S.A. WWW.ARBITER.COM...
Page 2 Description This manual is issued for reference only, at the convenience of Arbiter Systems. Reasonable eﬀort was made to verify that all contents were accurate as of the time of publication. Check with Arbiter Systems at the address below for any revisions made since the original date of publication.
Page 3 The responsibility of Arbiter Systems under this warranty is limited to repair or replacement, at Arbiter Systems’ option, of any product found to be defective. Arbiter Systems shall have no liability under this warranty unless it receives written notice of any claimed defect, within two years.
Page 5 Appendix D CE Mark Certiﬁcation Appendix E Vorne Output Values Appendix F Uploading Firmware to the 1133A Index Copyright Arbiter Systems Incorporated January 2021 All rights reserved. International copyright secured. Power Sentinel and PSCSV are Trademarks of Arbiter Systems. PD0026900W...
Page 6: Table Of Contents
Contents 1 Unpacking the 1133A Introduction ........Precautions .
Page 7 CONTENTS 3.6.2 Ethernet Interface Connections ......20 4 GNSS Antenna and Cable Information GNSS Antenna Installation ....... . 21 4.1.1 Mounting the Antenna .
Page 8 viii CONTENTS 6.3.3 Broadcast Toolbar ....... . 38 6.3.4 Conﬁguration Toolbar ......39 6.3.5 Flash Toolbar .
Page 9 CONTENTS 7.9.2 Broadcasting UDP, C37.118 Synchrophasor Data ....63 7.10 Conﬁguring Multimode Relays ......64 7.10.1 Conﬁguring User Schedule Mode .
Page 10 CONTENTS Logging Data when Triggers Occur ......85 8.5.1 “Data Logged” Procedure Details ..... . . 86 Conﬁguring Schulz-Laios Settings .
Page 11 CONTENTS 11 Functional Description 11.1 Overview ......... . 111 11.2 GNSS Synchronization .
Page 12 CONTENTS 12.8.2 External Interface Connections ......127 12.8.3 Programmable Contact Output Connections ....127 12.8.4 Event Input Connections .
Page 13 CONTENTS xiii 15 Accurate CT Calibration for the Model 1133A 15.1 Overview ......... . 147 15.2 Calibration Process .
Page 14 CONTENTS Sample 1133A Vorne Output ....... 164 F Uploading Firmware Introduction .
Page 15 List of Figures 1.1 Packaging of Accessories ........1.2 Attaching Rack-Mount Ears .
Page 16 LIST OF FIGURES 5.5 Voltage/Current Display ........29 5.6 Freq./Time Dev.
Page 17 LIST OF FIGURES xvii 7.16 Conﬁgure Relay Parameters ....... . 64 7.17 Conﬁgure Pulse-Per-Hour Mode .
Page 18 xviii LIST OF FIGURES 10.5 Scheduled Data Spreadsheet View ......107 14.1 Event Input Resistor Settings ....... 146 15.1 Comparison Technique A .
Page 19 List of Tables 2.1 Annunciator LED Deﬁnitions ....... 2.2 Fault Indications and Deﬁnitions ......2.3 Command Key Deﬁnitions .
Page 20 LIST OF TABLES C.1 IRIG-B Code Designations ....... . . 157 E.1 Vorne 34 Output, Time Deviation Values .
Page 21: Unpacking The 1133A
Chapter 1 Unpacking the 1133A Introduction This section will assist you with unpacking the 1133A from its shipping container; other parts and accessories shipped with the 1133A include: 1133A Power Sentinel (includes internal power supply) Antenna Cable, 50 feet with connectors (N/A with Option 07) GNSS Antenna (N/A with Option 07 –...
Page 22: Unpacking And Locating Accessories
Unpacking the 1133A Unpacking and Locating Accessories The Model 1133A and included accessories are packed between two closed-cell foam shells. Carefully pull apart the two shells to extract the 1133A and accessories. Some of the accessories (i.e. antenna and rack-mount ears) are located in one of these shells for protection. In the diagram below, you can see how the GNSS antenna and rack-mount ears are located in the closed-cell foam marked with the label that reads, ADDITIONAL PARTS INSIDE...
Page 23: Attaching Rack-Mount Ears
1.4 Attaching Rack-Mount Ears to 1133A NOTE: Mount screws through lower set of holes. Top of 1133A Chassis Front Panel Figure 1.2: Attaching Rack-Mount Ears NOTE: Before installing the rack-mount ears, you might want to determine if you need to conﬁgure anything inside the 1133A (e.g.
Page 24: Front And Rear Panels
Chapter 2 Front and Rear Panels Introduction This section identiﬁes the connectors, controls, and displays found on the front and rear panels of the Model 1133A. Review all of these items prior to connecting cables to and conﬁguring the Model 1133A.
Page 25: Annunciator Led Definitions
2.2 Front Panel Controls and Indicators 2.2.1 Annunciator LED Deﬁnitions The four Annunciator LED’s provide a quick reference to the Model 1133A operating status. These LED’s should give you a basic idea if the 1133A is operating correctly. Annunciator LED Color Purpose OPERATE...
Page 26: Command Key Definitions
Front and Rear Panels 2.2.2 Command Key Deﬁnitions All command keys provide multiple messages. Press the speciﬁc key repeatedly to scroll through the various displays. For example, press the Voltage/Current key (upper left) to scroll through the conﬁgured voltages and currents, including sequence components. Note that these keys DO NOT allow you to conﬁgure any of the internal functions of the 1133A.
Page 27: Power Inlet
2.3.1 Power Inlet To cover all of the possible inlet power conditions, Arbiter Systems oﬀers two diﬀerent power supplies: a low-range DC only and a high-range AC/DC supply. Please examine the paperwork you received with the Model 1133A, to make sure you have correctly identiﬁed the inlet power supply.
Page 28: Ac Voltage Inputs
Front and Rear Panels 2.3.3 AC Voltage Inputs The Model 1133A has a single, Phoenix-style, connector block that connects up to four diﬀerent phase voltage inputs to the measurement section. Wires are anchored by set screws in the connector plug, and the connector plug is inserted into the connector block on the rear panel. The connector plug is anchored with screws.
Page 29: Irig-B Timing Output
2.3 Rear Panel Connectors and Identiﬁcation 2.3.6 IRIG-B Timing Output The Model 1133A has one high-drive, unmodulated IRIG-B, timing output that uses a terminal connector as seen in Figure 2.9. This output may also be “Tee’ed” for parallel-connected loads. For more information concerning how to connect any timing output in parallel, for distribution, see Section 3.5 and Appendix C.
Page 30: Connecting Inlet Power, Input And Output Signals
Chapter 3 Connecting Inlet Power, Input and Output Signals Introduction This section should assist you with connecting all of the input and output wiring except for the GNSS antenna and cables. For antenna and cable information, please see Chapter 4. Wire Preparation NOTE: DO NOT tin with solder any bare wires connected to rear-panel terminals.
Page 31: Option 04, 10 Vdc To 60 Vdc Only, Terminal Power Strip Surge Withstand
3.1 Introduction Option 03, Connecting Inlet Power When wiring this power supply, make sure to ﬁrst connect an earth ground wire to the terminal strip connector labeled “G” (for ground). Positive and negative terminals are marked on the terminals as “+” and “–”. After connecting a ground wire, connect the positive and negative leads from the station batteries to the corresponding Option 03 terminals.
Page 32: Connecting Voltage And Current Signals
Connecting Inlet Power, Input and Output Signals Option 03 and 04 fuses are located in a separate threaded compartment (see Figures 3.1 and 3.2). To check the fuse, use a small ﬂat-bladed screwdriver and turn the cover counter-clockwise. The cover and fuse should pop out. CAUTION: Replace fuse only with another of the same type and rating.
Page 33: Connection Diagram - Dsp Notation, 1Ph2W1E
3.2 Connecting Voltage and Current Signals 1133A Single-Phase, Two-Wire, One-Element Circuits with Current and Potential Transformers Figure 3.3: Connection Diagram – DSP Notation, 1Ph2W1E...
Page 34: Connection Diagram - Dsp Notation, 1Ph2W1.5E
Connecting Inlet Power, Input and Output Signals 1133A Single-Phase, Two-Wire, One and One Half Element Circuits with Current and Potential Transformers Figure 3.4: Connection Diagram – DSP Notation, 1Ph2W1.5E...
Page 35: Connection Diagram - Dsp Notation, 1Ph3W2E
3.2 Connecting Voltage and Current Signals 1133A Single-Phase, Three-Wire, Two Element Circuits with Current and Potential Transformers Figure 3.5: Connection Diagram – DSP Notation, 1Ph3W2E...
Page 36: Connection Diagram - Dsp Notation, 3Ph3W2E
Connecting Inlet Power, Input and Output Signals 1133A Three-Phase, Three-Wire, Two-Element Delta Circuits with Current and Potential Transformers Figure 3.6: Connection Diagram – DSP Notation, 3Ph3W2E...
Page 37: Connection Diagram - Dsp Notation, 3Ph4W2.5E
3.2 Connecting Voltage and Current Signals 1133A Three-Phase, Four-Wire, Two and One Half-Element Circuits with Current and Potential Transformers Figure 3.7: Connection Diagram – DSP Notation, 3Ph4W2.5E...
Page 38: Connection Diagram - Dsp Notation, 3Ph4W3E
Connecting Inlet Power, Input and Output Signals 1133A Three-Phase, Four-Wire, Three-Element Circuits with Current and Potential Transformers Figure 3.8: Connection Diagram – DSP Notation, 3Ph4W3E...
Page 39: Relay Contact Outputs
3.3 Relay Contact Outputs Relay Contact Outputs Do not exceed the maximum contact output ratings. For mechanical relays (standard), 250 Vac/125 Vdc, 8 A, 2 kVA/150 W max. For solid state relays (optional, KYZ) 350 Vac/Vdc, 0.12 A continuous, 0.36 A peak (100 ms). Figure 3.9: Relay Contact Connector Use extreme caution when working with high voltages.
Page 40: Data Connections
Connecting Inlet Power, Input and Output Signals Figure 3.11: IRIG-B Connector Data Connections Table 3.2 lists the electrical connections for the two serial ports on the Model 1133A. The section below also describes the Ethernet connector. 3.6.1 Serial Interface Connections The 1133A has three standard communication ports: two RJ-11 serial and one RJ-45 Ethernet.
Page 41: Gnss Antenna And Cable Information
ﬁxture. The piece of pipe nipple should be threaded up into the antenna receptacle after connecting the antenna cable to the antenna. Arbiter Systems sells an antenna mounting kit (part no. AS0044600) that simpliﬁes antenna installation for a variety of locations.
Page 42: Optional Antenna Mounting Bracket
Also, the bracket can be mounted to a wall, a roof, or any other ﬂat surface. For complete details on this product request Installation Instructions for Arbiter Systems GNSS Antenna Mounting Bracket on document number PD0024700A. All metallic hardware is stainless steel.
Page 43: Antenna Mounting Bracket
4.1 GNSS Antenna Installation Figure 4.2: Antenna Mounting Bracket Figure 4.3: Antenna Mounting with AS0044600...
Page 44: Verifying Antenna And Cable Operation
GNSS Antenna and Cable Information Verifying Antenna and Cable Operation A two-color operate LED, located at the base of the antenna, indicates proper antenna operation. GREEN indicates proper operation (i.e. the antenna is getting the correct voltage); ORANGE indicates improper operation (i.e. the voltage is low). 4.2.1 Checking the Antenna Voltage The Model 1133A provides +5 Vdc to the GNSS antenna, which is carried through the antenna...
Page 45: Technical Details On Gnss, Antennas And Cables
Available Antenna Cables and Accessories for Longer Runs Arbiter Systems oﬀers longer antenna cables for use with the Model 1133A Power Sentinel when the standard 15-meter (50-foot) cable is inadequate. For RG-6 cable runs greater than 250 feet, up to 500 feet, Arbiter oﬀers a 21-dB in-line ampliﬁer, P/N AS0044700.
Page 46: Gnss Cable Data And Accessory Information
GNSS Antenna and Cable Information Part No. Description Delay, ns Loss CA0021315 15-m (50-ft) cable, RG-6 60 ns -5 dB CA0021330 30-m (100-ft) cable, RG-6 119 ns -9 dB CA0021345 45-m (150-ft) cable, RG-6 177 ns -13 dB CA0021360 60-m (200-ft) cable, RG-6 236 ns -17 dB CA0021375...
Page 47 4.4 Technical Details on GNSS, Antennas and Cables Connecting to the Antenna and the Model 1133A The male Type F connector on one end of the antenna cable mates with the female Type F connector on the antenna. Avoid placing mechanical stress on the cable attachment to the antenna. The male Type F connector on the opposite end of the antenna cable connects to the female Type F connector on the rear panel of the Model 1133A.
Page 48: Startup Operation And Indication
Chapter 5 Startup Operation and Indication Startup This chapter address the startup and initial operation immediately following the application of inlet power to the Model 1133A. It addresses the activity of the speciﬁc annunciator LED’s and display indications, so that you will know what to expect when applying power. When you apply power to the Model 1133A, startup should begin with the Annunciator LED’s ﬂashing brieﬂy and the LCD display indicating some initial startup information as illustrated below.
Page 49: Annunciator Led Startup Indications
5.2 Overview of Command Keys geographical position for the 1133A. After the 1133A has initially found its position, a subsequent startup may produce a LOCKED indication after tracking only one or two satellites. Other indications are “VCO LOCK ERROR” and “UNLOCK XX MIN,” where “XX” can be from 0 to 99 minutes.
Page 50: Frequency/Time Deviation Key
Startup Operation and Indication 5.2.2 Frequency/Time Deviation Key Press the FREQ./TIME DEV key twice: once to view the measured line frequency and GNSS time; a second time to view the signed error in system frequency, and the integrated total time deviation. Resolution of time deviation is in milliseconds.
Page 51: Status, Location: Latitude And Longitude
5.2 Overview of Command Keys Status, Location; Latitude and Longitude Press the Status/Time key to reveal geographical position with no elevation. Location provides GNSS antenna position only, it is not available with IRIG-B input (Option 7). Figure 5.9: Status, Location: Latitude and Longitude Status, Date and Time - UTC or Local Pressing the Status/Time key will display the date and time in UTC or Local time format.
Page 52: Status/Time Keys - Secondary Functions
Startup Operation and Indication 5.2.5 Status/Time Keys – Secondary Functions To view any of the secondary status functions, press and hold the Status/Time key for three seconds. It should shift to the second set of status functions. To return to primary status functions, press and hold the Status/Time key for three seconds.
Page 53: Power Key
5.2 Overview of Command Keys Status, Ethernet; TCP/UDP Port and Physical Address Press the Status/Time key to view the TCP/UDP values and physical address. To access this screen, see Section 5.2.5 notes. Conﬁgure TCP and UDP values only from PSCSV for details, see Section 7.3, “Conﬁgure Ports Ethernet”.
Page 54: Harmonics Key
Startup Operation and Indication 5.2.8 Harmonics Key Press the HARMONICS key successively to view the harmonics data that applies to the measured electrical system. Each screen lists the total harmonic voltage and current, and THD for each of the measured phases. Figure 5.20: Harmonics Key 5.2.9 Flicker Key...
Page 55: Fault Indications
Model 1133A. A severe fault, that cannot be cleared by recycling power, should be immediately reported to Arbiter Systems technical support. If you do not see your fault listed here, call the factory for assistance. See page ii for contact information.
Page 56: Pscsv Basics - Starting, Connecting And Logging In
Chapter 6 PSCSV Basics – Starting, Connecting and Logging In Introduction 6.1.1 Getting Started This chapter was written to assist you in setting up and operating the 1133A Power Sentinel using PSCSV software. PSCSV provides direct and complete control over all of the features of the 1133A. No other tool is available to conﬁgure the 1133A, however other software applications may be used to collect data, especially with the new synchrophasor speciﬁcation, C37.118.
Page 57: Power Quality, Dnp And Modbus
6.2 Menus, Toolbars, Buttons and Windows 6.1.4 Power Quality, DNP and Modbus Poll speciﬁc data from the 1133A using either DNP or Modbus, from the two serial ports or Ethernet port. To conﬁgure any port for DNP or Modbus protocol, see Conﬁguring DNP and Modbus in Sections 7.6 and 7.7.
Page 58: Toolbar And Button Definitions
PSCSV Basics – Starting, Connecting and Logging In Toolbar and Button Deﬁnitions 6.3.1 Main Toolbar Figure 6.2: Main Toolbar Main Toolbar Items: Open a PSCSV ﬁle, Export to CSV File, Create a Snapshot, Copy, PSCSV Home page. Open: Opens a speciﬁc 1133A ﬁle - has browse features. Export to CSV File: Exports selected 1133A ﬁle records to CSV format for use with spreadsheets.
Page 59: Configuration Toolbar
6.3 Toolbar and Button Deﬁnitions Pause: Pauses the data from ﬂowing into Main Window. Basic Data: Initiates the ﬂow of Basic data into the Main Window. Energy Data: Initiates the ﬂow of Energy data into the Main Window. Harmonic Data: Initiates the ﬂow of Harmonic data into the Main Window. Harmonic Summary: Initiates the ﬂow of Harmonic Summary data into the Main Window.
Page 60: Input Toolbar
PSCSV Basics – Starting, Connecting and Logging In allocated for scheduled records and memory allocated for event records. Figure 6.6: Flash Toolbar Flash Toolbar Items: (in order) Flash Memory Status, Conﬁgure Flash, Erase Flash, Download Scheduled, Erase Scheduled, Download Event, Erase Event. Flash Memory Status: Opens ﬂash memory status window.
Page 61: Records Toolbar
6.3 Toolbar and Button Deﬁnitions 6.3.7 Records Toolbar The records toolbar allows you to move forward and backward through a PSCSV ﬁle for speciﬁc records. Records are noted with a date and time stamp shown in the window. Figure 6.8: Records Toolbar 6.3.8 View Menu Use the View Menu to control the appearance of data streaming from the Model 1133A.
Page 62: Connecting With The 1133A
PSCSV Basics – Starting, Connecting and Logging In Connecting with the 1133A 6.4.1 Introduction There are two basic steps to connecting with the 1133A: 1. Make sure a physical connection exists between an 1133A port and a computer. 2. Open a speciﬁc communication port using PSCSV (e.g. RS-232, RS-485 or Ethernet). 6.4.2 Communication Ports Connection options are (1) for SERIAL 1 and 2 including RS-232, RS-485 and Modem, and (2)
Page 63: Starting Pscsv
6.4 Connecting with the 1133A 6. IEEE 802.3I: Connect the Ethernet cable from a hub into the RJ-45 connector (IEEE 802.3I port) at the rear of the 1133A. If you encounter problems see Appendix A, “Working with Ethernet Connections,” on page 151. Serial Connection Summary Connector Communication Standard...
Page 64: Connection List Shows Ethernet Selected
PSCSV Basics – Starting, Connecting and Logging In Figure 6.10: Connection List shows Ethernet selected 1. Prior to connecting, the Main Toolbar and the Connection Toolbar should appear with several icon buttons active: Open a File, PSCSV Homepage and Open a Connection. 2.
Page 65: Adding A Tcp Or Udp Connection
6.4 Connecting with the 1133A 4. If successful, and a speciﬁc port is opened, then many more of the menu buttons will become active on the toolbars. These include all of the Broadcast Data Toolbar, the Close Connection button, the Login Key symbol and some of the ﬂash memory buttons. 5.
Page 66: Renaming A Tcp Or Udp Connection
PSCSV Basics – Starting, Connecting and Logging In 6.4.7 Renaming a TCP or UDP Connection From the Connection window, select an Ethernet TCP or UDP connection name and click the Rename button. Type in the new name and press Enter to conﬁrm the new name. Select OK to open the connection.
Page 67: Logging In Using Admin
6.4 Connecting with the 1133A 2. Type in the new login name and password. Click Login, or press ENTER, and the new functions should be visible with additional buttons becoming active. 3. PSCSV will issue a warning that the attempted login failed if either the login name or password was entered incorrectly.
Page 68: Configuring The Model 1133A
Chapter 7 Conﬁguring the Model 1133A Introduction This section covers conﬁguring the 1133A and all of its functions. It is not possible to conﬁgure the 1133A from the front panel keypad. Conﬁgure the 1133A with PSCSV software. After conﬁguring the 1133A, data may be retrieved using PSCSV or any other software tool that works with C37.118, DNP 3.0 or Modbus protocols.
Page 69: To View Com Port Settings On The 1133A
7.2 Conﬁguring an 1133A Communication Port 7.2.1 To view COM Port Settings on the 1133A Press and hold the STATUS/TIME button for three seconds and release when menu item changes (it should indicate the Serial Number, ROM date and DSP date). Then, continue pressing the STATUS/TIME button until the port settings are in view.
Page 70: Configure Ports - Ethernet
Conﬁguring the Model 1133A (c) For Modbus, make sure to select the Modbus RTU Mode below. (d) For Vorne Output, make sure to check the Vorne Output. Select time zone and voltage phase: UTC AV, UTC BV, UTC CV, Local AV, Local BV, Local CV. See Appendix E 6.
Page 71: Additional Information On Ethernet Connections
7.4 Conﬁguring Measurement Parameters 7.3.1 Additional Information on Ethernet Connections Setting up an Ethernet connection may require some additional diagnostics. Listed below are System tools that may provide assistance. Generally, if there is a connection problem, it will either be a hardware problem, such as a bad or unconnected cable, or a setup problem in either the PC or 1133A.
Page 72: Measurement Parameters Configuration Screen
Conﬁguring the Model 1133A Loss Compensation: Compensates for copper loss and hysteresis in transformers. Anti-Creep: Thresholds set the minimum value at which the meter begins to “turn.” Internal Calibration: Sets the 1133A internal calibration constants; set by the factory. Voltage Linearity Correction: Helps compensate for non-linear variations in calibrated values.
Page 73: Configure Ports - Irig-B
7.5 Conﬁgure Ports – IRIG-B 5. Select Anti-creep to set the minimum meter recognition values; select one for each phase. To enable Anti-Creep, ﬁrst select Anti-Creep ON under DSP Mode tab. 6. Do not select Internal Calibration. These are factory-installed, internal calibration values used to standardize the 1133A accuracy.
Page 74: Configure Ports - Dnp 3.0 Protocol
Conﬁguring the Model 1133A Conﬁgure Ports – DNP 3.0 Protocol DNP 3.0 (Distributed Network Protocol) is a set of communications protocols used between components in process automation systems. It is mainly used by utilities such as electric and water companies. When conﬁgured, the 1133A will respond to Class 0 polling commands for data using DNP 3.0 protocol.
Page 75: Configuring Dnp Settings
7.6 Conﬁgure Ports – DNP 3.0 Protocol Figure 7.7: Conﬁguring DNP Settings of DNP 3.0 data required by your equipment. Selections include (1) Basic Data, (2) Frequency Data, (3) Harmonic Summary Data, (4) Harmonic Voltage and Current Data of all channels (to the ﬁftieth harmonic), and (5) Energy Register data.
Page 76: Configure Ports - Modbus
Conﬁguring the Model 1133A Conﬁgure Ports – Modbus Modbus is a serial communications protocol published by Modicon in 1979 for use with its programmable logic controllers (PLC’s), and is now the most commonly available means of connecting industrial electronic devices. To conﬁgure the 1133A to communication using Modbus protocol, you will need to conﬁgure the desired port to use it and then set some simple conﬁguration options.
Page 77: Configure Ports - C37.118 Synchrophasor Protocol
7.8 Conﬁgure Ports – C37.118 Synchrophasor Protocol Conﬁgure Ports – C37.118 Synchrophasor Protocol Purpose and Background The purpose of this section is to provide speciﬁc details of how to conﬁgure the 1133A to respond correctly to C37.118 commands with synchrophasor data. PSCSV does not allow you to receive or record actual C37.118 data.
Page 78: Configuration
Conﬁguring the Model 1133A Figure 7.10: PMU-1 Conﬁguration ID (or IDCODE) is the 16-bit integer, assigned by the user that uniquely identiﬁes the device sending and receiving messages (in this case, the 1133A). Essentially, this means that no two devices can have the same ID on the same network.
Page 79: Window Functions
7.8 Conﬁgure Ports – C37.118 Synchrophasor Protocol Estimated Rate, Hz is the integer number of samples per second. Rate values are diﬀerent for 50 Hz (1, 2, 5, 10, 25, 50) and 60 Hz (1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30, 60). Cycles Used is a calculated value based on multiplying the Estimated Rate times the Window Length in cycles.
Page 80: Setup Example - Ethernet
Conﬁguring the Model 1133A Figure 7.11: 8-Cycle, Raised Cosine Rejection Plot and 6-Cycle Rolloﬀ Figure 7.12: Selecting Digital Channels in C37.118 PMU-3 C37.118 Ghost PMU-3 C37.118 Ghost is a third IEEE C37.118 port conﬁgurable to any of three possibilities, plus OFF.
Page 81: Audible Frequency Alert, From Phasor Display
7.8 Conﬁgure Ports – C37.118 Synchrophasor Protocol 1. Click Ethernet on the left panel of the form. 2. Check the port parameters, including protocol and port number. The available choices for protocol are UDP, TCP or Disabled. 3. On the left side of the Conﬁgure Ports form, select either PMU-1 or PMU-2. 4.
Page 82: Broadcasting Udp Data
Conﬁguring the Model 1133A Figure 7.13: Frequency Alert and Setup Window and +10.00 Hertz. Play Sound File: Deﬁnes the alarm sound. Click the Browse button to select a WAV ﬁle to play during the alert. Minimum Play Time: Deﬁnes how long the sound will play after the alarm condition clears.
Page 83: Broadcasting Udp, C37.118 Synchrophasor Data
7.9 Broadcasting UDP Data Figure 7.14: Shows PMU-1 set to broadcast UDP 7.9.2 Broadcasting UDP, C37.118 Synchrophasor Data The 1133A was designed to transmit only in UDP; i.e. you cannot connect using UDP in the 1133A. Therefore, to conﬁgure the 1133A to broadcast C37.118 synchrophasor data, or to start or stop a C37.118 UDP broadcast, use a separate TCP connection.
Page 84: Configuring Multimode Relays
Conﬁguring the Model 1133A Arbiter protocol, view data using PSCSV in various ways, including Spreadsheet, Real time, Phasor Vector or Frequency Plot, depending on the data type. 7.10 Conﬁguring Multimode Relays Conﬁgure the four multimode relays using the Conﬁgure Relay Parameters window. Connect to these relays at the rear panel of the 1133A at the location labeled “Contact Outputs.”...
Page 85: Configuring Pulse-Per-Hour Mode
7.10 Conﬁguring Multimode Relays 5. Repeat the previous step to add new or remove unnecessary scheduled relay events. 6. When ﬁnished scheduling relays, click Apply then OK to close the window. 7.10.2 Conﬁguring Pulse-Per-Hour Mode 1. Select Pulse Per Hour mode by ﬁrst selecting the relay and checking “One Pulse Per Hour” in the right panel.
Page 86: Kp Register Scale Factors
Conﬁguring the Model 1133A 3. To scale the KYZ Register Scale Factors, select Connection > Conﬁgure > Kp Register Scale Factors or click the Kp button. Kp register scaling is explained below under Kp Register Scale Factors. 4. Under “Value,” select the (Scheduled) Value corresponding to the Description and type in the scaling constant (see Kp Register Scale Factors below for details).
Page 87: Configuring Relays For Trigger Mode
7.11 Conﬁguring Position and Time 100% (by Kp Scale Factor) the output will put out the additional pulses until the accumulated overage is gone. 7.10.5 Conﬁguring Relays for Trigger Mode In the Conﬁgure Relay Parameters window, select “Triggers” to link one of the four relays to a speciﬁc trigger.
Page 88: Configuring Scheduled Data
Conﬁguring the Model 1133A only. All timing of measured data (whether exported or stored) is according to UTC. 1. Make certain that there is an open connection with the 1133A and that you are logged on with permission to conﬁgure. If you are not, see “Basic Conﬁguration Requirements” in Section 7.1.2.
Page 89: Configuring Time Deviation
7.13 Conﬁguring Time Deviation complete list of scheduled values. 1. Make certain that there is an open connection with the 1133A and that you are logged on with permission to conﬁgure. If necessary, see “Basic Conﬁguration Requirements” in Chapter 6. 2.
Page 90: 1133A Security - Setting Up User Accounts And Permissions
Conﬁguring the Model 1133A For information on Frequency and Time Deviation, see “Frequency / Time Deviation Key” in Section 5.2.2. To view the time deviation from the front panel, press the FREQ./TIME DEV. key. 7.14 1133A Security – Setting Up User Accounts and Permissions 7.14.1 Introduction Read this section to understand and use the various aspects of 1133A Security.
Page 91: Security Specifications
7.14 1133A Security – Setting Up User Accounts and Permissions 7.14.4 Security Speciﬁcations Function Permission Allowed Operation Login Take up a communication channel. If this is not set, none of the others are relevant. Receive Data Receive all broadcast messages and query messages Download Scheduled Download all or speciﬁed Scheduled Erase Scheduled...
Page 92: Setting Up New User Accounts
Conﬁguring the Model 1133A Figure 7.25: Security, User Permissions Window 7.14.7 Setting Up New User Accounts To set up user accounts and permissions, you will need permission to administer. To get permission to administer, you will need to open the Conﬁgure User Logins screen. 1.
Page 93: How To Disable 1133A Security So That Everything Is Available
7.15 Flash Memory Management 2. Select Connections > Conﬁgure > User Logins to activate the Conﬁgure User Logins window. Select the drop-down window under Login Name. Select the user account-name to be deleted, and click Delete. In the same manner, delete any other accounts if needed. The user name(s) will be deleted.
Page 94: Flash Memory Security
Conﬁguring the Model 1133A 7.15.3 Flash Memory Security To access 1133A ﬂash memory features, permission must ﬁrst be granted through 1133A security. Security features protect the integrity of and guard access to records stored within the 1133A ﬂash memory module. It also guards against the inadvertent reprogramming of the 1133A.
Page 95: Erasing Flash Memory
7.15 Flash Memory Management Figure 7.27: Flash Status Window 1. Open a connection between the 1133A and computer using PSCSV. 2. Make certain that no downloading of Scheduled or event data is in process. 3. Click the Flash Memory Status button on the Flash Toolbar or Select Connection > Flash Memory >...
Page 96: Erasing Scheduled Data
Conﬁguring the Model 1133A Figure 7.28: Erase Flash Window and the type of serial connection. For more information see “Downloading Scheduled Data” under “Working with Scheduled Data” in Chapter 10. 7.15.8 Erasing Scheduled Data To erase the contents of ﬂash memory allocated to scheduled data, click the Erase Scheduled button or select Connection >...
Page 97: Configure Choices
7.16 Uploading a Conﬁguration Figure 7.29: Create/Edit Conﬁguration File Menu 1. Select Connection > Open (or click the Open Connection button) and select Create/Edit Uploadable Conﬁguration. 2. Expand the menu below this by clicking the plus sign, and select Default. On the right, you will see a window with a suggested conﬁguration ﬁle name and location.
Page 98: Upload Configuration Window
Conﬁguring the Model 1133A Figure 7.30: Upload Conﬁguration Window...
Page 99: Working With Triggers And Downloading Event Records
Chapter 8 Working with Triggers and Downloading Event Records Introduction to Triggers and Events Triggering in the Model 1133A allows you to capture and store transient conditions of any measured signal and DSP value for up to 32 separate triggers. Besides recording the exact time and date of a power-line disturbance, all of the measured data parameters may also be recorded.
Page 100: User Trigger Parameter Definitions
Working with Triggers and Downloading Event Records the triggering event no longer meets the conditions, the trigger is considered Inactive. Use the Conﬁgure Triggers window to set up all of these conditions. 8.2.1 User Trigger Parameter Deﬁnitions Input Signal. Consists of the measured signals and parameters, such as Voltage, Current, Watts, VARS, which are compared to the limit.
Page 101: Configuring Power Quality Triggers
8.3 Conﬁguring Power Quality Triggers 2. Under “Input Signal”, select the adjacent drop-down arrow and choose the desired parameter on which you want to trigger. 3. Under “Channel,” select the measurement channel (e.g. A, B, C, Ave., etc.), or relevant value according to the Input Signal type.
Page 102: Power Quality Trigger Setup Procedure
Working with Triggers and Downloading Event Records compared directly. Sliding means that Reference value is not ﬁxed (or absolute) and can change slowly, such as with a gradually rising or dropping voltage. See additional details on following pages. Hysteresis: Floating point value; reduces extraneous records from accumulating when a measured value is dithering around a limit or reference.
Page 103: Hysteresis Plot
8.3 Conﬁguring Power Quality Triggers Hysteresis Hysteresis allows the user to set up triggering conditions to reduce the tendency for a varying signal (e.g. voltage) to generate unnecessary triggers. The ﬁgure below illustrates a voltage varying around about 130 Vrms, which is the set Limit for a trigger. To avoid unwanted triggers occurring at points A, B, C and D, a hysteresis value of 2 was chosen.
Page 104: Triggering From External Events
Working with Triggers and Downloading Event Records is the present value of the sliding reference voltage; is the previous value of the sliding reference voltage; and is the most recent 10/12-cycle r.m.s. value. (10 12) Note that even though the speciﬁcation deﬁnes the input signal (U) as a voltage, Arbiter Systems has applied the speciﬁcation to include measured input currents as calculated using the same formula.
Page 105: Logging Data When Triggers Occur
8.5 Logging Data when Triggers Occur If you want to separate the logging parameters for each External Event Input, then select the diﬀerent Channel buttons at the top of the window and repeat the process above. 4. See Figure 8.6 to continue setting up the data to be logged when an external trigger occurs. 5.
Page 106: Data Logged" Procedure Details
Working with Triggers and Downloading Event Records 8.5.1 “Data Logged” Procedure Details Follow the instructions below to set up how the 1133A will log data when a speciﬁc trigger becomes Active. 1. In the Conﬁgure Trigger Parameters window select Data Logged. See Figure 8.5. Figure 8.5: Conﬁgure Data Logged Screen 2.
Page 107: Configuring Schulz-Laios Settings
8.6 Conﬁguring Schulz-Laios Settings 7. For Postfault Time, of recorded data after the trigger becomes Inactive (non-triggered mode), select values from 0 to 65535 seconds. 8. Click the Data Items tab to select the type of data logged once an event is triggered. Items change with each type of data selected under “Logging Parameters.”...
Page 108: Configuring Event Notification
Working with Triggers and Downloading Event Records Conﬁguring Event Notiﬁcation Triggered event data needs a destination for recording purposes, and PSCSV provides a method of assigning trigger data to one or more destinations. In the destination window below are both User and System Triggers (unseen in window).
Page 109: Concluded Event Record Download
8.8 Downloading Triggered Events from Flash For User (DSP), Power Quality and System Triggers, the downloading process is the same, and very much like Downloading Revenue Data. 1. Make certain that there is an open connection with the 1133A and that you are logged on with permission to download events.
Page 110: List Of Event Records
Working with Triggers and Downloading Event Records Figure 8.10: List of Event Records...
Page 111: Working With Broadcast Data
Chapter 9 Working with Broadcast Data Introduction All seven, broadcast data types referred to in this section are depicted on the Broadcast toolbar. Broadcast data may be received directly in PSCSV software or through other software tools that are compatible with C37.118 Phasor or Ethernet UDP. Data logged in PSCSV may be saved in 1133A format and exported in CSV and PQDIF formats.
Page 112: Broadcast Data Choices
Working with Broadcast Data Note that the data ﬁle always contains all of the available data, and you are just restricting what is displayed in the viewing window. 9.1.2 Broadcast Data Choices To acquire Broadcast Data (see Section 6.3.3) there must be an active connection between the 1133A and the computer.
Page 113: Logging Energy Data
9.3 Logging Energy Data Figure 9.2: Basic Data Summary Screen Figure 9.3: Basic Data Spreadsheet Screen 4. When the Save As window appears, use the default name or type in your own ﬁle name. Also, use the browse feature to save to a desired location. 5.
Page 114: Energy Data Summary Screen
Working with Broadcast Data Figure 9.4: Energy Data Summary Screen Figure 9.5: Energy Data Spreadsheet Screen 1. Make certain that there is an open connection with the 1133A. If you are not connected, see “Connecting with the 1133A” on page 42. Only basic permission required. 2.
Page 115: Logging Harmonic Data
9.4 Logging Harmonic Data Logging Harmonic Data Harmonic Data includes all of the voltage and current magnitudes and phase angles, from the fundamental to the 50th (most of which are not visible in Figures 9.6 and 9.7). All available harmonics are delivered to the chosen window, whether in summary, spreadsheet or graphical form. Harmonic data are synchronized to the GNSS, sent real time at a rate of once-per-second and simultaneously saved in a ﬁle of choice.
Page 116: Logging Harmonic Summary Data
Working with Broadcast Data removed, the buﬀered data will ﬁll the screen. The “Stop This” button will only terminate the stream of data on top. The “Stop All” button will terminate all data being broadcast from the 1133A. 6. Use the Filter Data tool to limit the data parameters visible in this window. See Filter Data Selection Tool on page 91 for more information.
Page 117: Harmonic Summary Values
9.5 Logging Harmonic Summary Data 3. When the Save As window appears, use the default name or type in your own ﬁle name. Also, use the browse feature to locate ﬁles. 4. Click OK and the data should begin streaming into the speciﬁc broadcast data screen at a rate of once per second.
Page 118: Harmonic Load Currents
Working with Broadcast Data where the denominator now includes the sum of rms harmonic voltages plus the fundamental. K–FACTOR is a weighting of the harmonic load currents according to their eﬀects on transformer heating, as derived from ANSI/IEEE C57.110. A K–Factor of 1.0 indicates a linear load (no harmonics).
Page 119: Logging Phasor Data
9.7 Logging Phasor Data 1. Make certain that there is an open connection with the 1133A. If you are not connected, see “Connecting with the 1133A” on page 42. Only basic permission is required. 2. From the main menu select Connection > Acquire Broadcast > Waveform, or click the Waveform button on the Broadcast toolbar to open the Save As window.
Page 120: Logging Phase Data
Working with Broadcast Data Figure 9.11: Phasor Data Screen Figure 9.12: Phasor-Frequency Plot Data Screen 6. To terminate this broadcast session, click the “Stop This” button, or select Connection > Stop Broadcast. 7. Click the Close button on the Phasor window when ﬁnished viewing the phasor broadcast. Logging Phase Data Use Phase Data to compare any voltage or current phase angle using A-phase voltage or A-phase current as the reference.
Page 121: Exporting Data In Csv Format
9.9 Exporting Data in CSV Format Figure 9.13: Phase Summary Data Screen Figure 9.14: Phase Spreadsheet Data Screen 3. Choose the default ﬁlename, or type in a ﬁle name to store the incoming data, and click Save. Relative phase data should begin streaming into the window. 4.
Page 122: Exporting Data In Pqdif Format
Working with Broadcast Data Figure 9.15: Export CSV Format Data Screen 2. For data currently being downloaded, use your cursor and select the lines of data to be converted. 3. If the data are from a ﬁle, open the ﬁle using the Open button, or use File > Open from the main menu, and highlight the lines of data to be converted.
Page 123: Working With Scheduled Data
1133A. To set Kp Register Scale Factors used with KYZ Pulse Metering, see Section 7.10.3. Another major protocol used to receive scheduled data from various metering devices is MV90. At this time the 1133A does not comply with MV90, however Arbiter Systems is working on being MV90 compliant.
Page 124: Downloading Scheduled Data With Pscsv
Working with Scheduled Data 10.1.4 Downloading Scheduled Data with PSCSV The 1133A always stores scheduled data in a 32 megabyte ﬂash memory module for later review and downloading. Users can download scheduled data through a network, over a modem, or on site through one of the serial ports.
Page 125: Downloading Scheduled Data Using Pscsv
10.3 Downloading Scheduled Data using PSCSV Figure 10.1: Flash Status Screen Procedure 1. Click the Flash Memory Status button, or select Connection > Flash Memory > View Status, to see if ﬂash memory has data that needs to be downloaded. 2.
Page 126: Scheduled Data Download Specify Range
Working with Scheduled Data Figure 10.2: Scheduled Data Download Specify Range Figure 10.3: Scheduled Data Download Session 4. Click OK and the Save As window will appear. Choose the default ﬁle name or type in a new ﬁle name and click Save. 5.
Page 127: Configuring Scheduled Storage
10.4 Conﬁguring Scheduled Storage Figure 10.4: Scheduled Data Summary View Figure 10.5: Scheduled Data Spreadsheet View 10.4 Conﬁguring Scheduled Storage Conﬁguring Scheduled Storage includes selecting the types of data from the included list and setting up the storage time interval. For information on using DNP 3.0 or Modbus to access scheduled data, see “Conﬁguring DNP 3.0 Protocol”...
Page 128: Erasing Scheduled Data Using Pscsv
Working with Scheduled Data 10.5 Erasing Scheduled Data Using PSCSV If you wish to delete the existing records stored in the Scheduled partition of the ﬂash memory module, follow these instructions. Erasing the scheduled partition of ﬂash memory is a complete, one-step process where all of the scheduled-data records residing in ﬂash memory are deleted.
Page 129: Sequence Values
10.7 How Energy is Totalized in the Model 1133A 10.6.3 Sequence Values Symbol Description Values Included VH, V2H Sequence Voltages and Currents 0,1,2VH, 0,1,2V 0,1,2AH, 0,1,2A 10.6.4 Frequency Variation Values Symbol Description Values Included Freq Var Ave Err Freq. Variation Ave. Error Sudden Freq Var Sudden Frequency Variation 10.6.5...
Page 130: Example, Totalizing Energy
Working with Scheduled Data 10.7.1 Example, Totalizing Energy 1. For the ﬁrst minute, A = +4 kWh. B = +2 kWh. C = -3 kWh. Total Energy = +3 kWh (4 + 2 - 3) Phase Delivered (DEL) Received (REC) Total 2.
Page 131: Functional Description
Functional Description 11.1 Overview The Arbiter Systems Model 1133A Power Sentinel consists of several blocks. They are: GNSS receiver and synchronization; voltage and current inputs; programmable-gain ampliﬁers, multiplex- ers, and analog-to-digital converter; digital signal processor; host processor; display and keyboard;...
Page 132: Voltage Inputs
Functional Description 11.4 Voltage Inputs The voltage inputs uses low-TC (temperature coeﬃcient) voltage-divider resistor networks as signal attenuators. Voltage inputs may be conﬁgured as a three-phase, three-element input, with four connections (A, B, C, and N), or conﬁgured as a two-element input, with independent connections to each element (A+, A–, C+, and C–, for example).
Page 133: Power & Energy Error Analysis
11.8 Power and Energy Temperature Errors, 0–50 C Error, ppm Current input, resistor TCR Voltage input, resistor ratio Voltage reference (x2) Cal. source, resistor ratio (x2) Time Stability, 1 year Current input, resistor Voltage input, resistor ratio <20 Voltage reference (x2) Cal.
Page 134: Voltage And Current
Functional Description are the most accurate. The averaged data are provided primarily as a convenience or for system control purposes; it is not intended for billing purposes. 11.9 Voltage and Current Voltage and current are measured in a similar fashion to power, using overlapping 1024-point measurements.
Page 135: Dc Offsets
11.12 DC Oﬀsets power (vars) of the voltage, and the compensation is performed using the same basic method as described above for copper loss. 11.12 DC Oﬀsets DC oﬀsets may be present in the signals applied to the input of the 1133A, although this is unusual.
Page 136: Harmonics
Functional Description fundamental, absolute phase. This is because the subtraction is actually one of time; the purpose being to re-align the reference point to correspond to zero degrees on the fundamental. The phase angle corresponding to this time shift is proportional to the frequency. 11.14 Harmonics Harmonics are measured using overlapping Hanning window FFT’s of 1024 samples and 100 ms...
Page 137: Flicker
11.15 Flicker 11.15 Flicker Flicker is measured in accordance with IEC 61000-4-15, the successor standard to IEC 868. Unlike the other measurements described above, ﬂicker measurement is a continuous process. This process is performed using a sample rate of 640 samples per second (sps). Anti-alias (decimation) ﬁltering is performed on the 10240–sps data stream, and the resulting samples are further processed following the block diagram suggested in IEC 61000-4-15.
Page 138: Phase Balance
Functional Description at a particular point in a power distribution system, along with suitable time synchronization ﬁelds and other information. This information is available in real time, and is based on the measured fundamental voltage, current, and phase angle described above, at a variable rates based on system frequency.
Page 139: Contact Outputs
11.23 Contact Outputs The 1133A must be conﬁgured in advance to specify the events being recognized and actions to be taken. To maximize usage of ﬂash memory, it is important to distinguish registered quantities from event log data. The amount of memory needed to record a certain number of registered items for a certain period can be determined exactly, whereas the amount of memory required to log events depends on the number and type of events, and the number of items to be recorded for each type.
Page 140: Ethernet Mms Interface
Functional Description cable to connect the 1133A to a computer. These adapters may be rewired in the ﬁeld to match interface requirements. Both serial channels, and the Ethernet channel, may be operated simultaneously, each serving diﬀerent hosts with separate access authorization and information channels. 11.26 Ethernet MMS Interface An Ethernet (10base–T) interface, supporting the emerging MMS standard for substation automa-...
Page 141: Detecting Oscillatory Transients And Other Anomalies
11.28 Detecting Oscillatory Transients and Other Anomalies 11.28 Detecting Oscillatory Transients and Other Anomalies Special logic is included in the 1133A to implement the algorithms described by Schulz and Laios [1], which are designed to detect power system anomalies such as oscillatory transients. There are six channels dedicated to performing this function in the 1133A (Table 6-4).
Page 142: Signal Functions Available For Triggering
Functional Description 11.28.1 Signal Functions Available for Triggering ID No. Function Update Rate Channels Available Oﬀ Voltage 20/sec A, C, B, Average Current 20/sec A, C, B, Average Active Power (Watts) 20/sec A, C, B, Total Reactive Power (VARs) 20/sec A, C, B, Total Apparent Power (VA) 20/sec...
Page 143: Trigger Channel Parameter Summary
11.28 Detecting Oscillatory Transients and Other Anomalies 11.28.2 Trigger Channel Parameter Summary Function Range or Options Input Signal 0 – 31, per Table 11.2 above (set to 0 if not used) channel 0 – 3, per right column in table above Trigger dependency 0 –...
Page 144: Technical Specifications And Operational Parameters
Chapter 12 Technical Speciﬁcations and Operational Parameters 12.1 Scope This section includes all of the technical speciﬁcations and operational characteristics of the 1133A, including: Standard Options Receiver Characteristics AC Current and Voltage Inputs, Other Inputs & Outputs Instrument Interface Flash Memory Data Storage Accuracy Speciﬁcations Power Quality Measurement Capability System Control and Monitoring...
Page 145: Standard Options
12.2 Standard Options Four, Form-C (SPDT) contact outputs may be used to report events recognized by the 1133A, or they may be controlled remotely, by command. Schedule contact outputs for up to 30 days in advance to synchronize external equipment or to operate load-control switchgear. Contacts may also be conﬁgured for KYZ pulse metering when used with Option 06.
Page 146: Ac Voltage And Current Inputs
Technical Speciﬁcations and Operational Parameters 12.3 AC Voltage and Current Inputs AC Voltage and Current Input connectors allow for connecting to most common electrical systems. All other values such as power and energy are derived from these measurements and the internal GNSS-synchronized or IRIG-B synchronized clock.
Page 147: Input Connector Ratings
12.7 Input Connector Ratings 12.7 Input Connector Ratings Connections Removable screw-clamp terminal block, accepting 0.2 4 mm (AWG 24-10) solid or stranded conductors Insulation 400 V, nominal, to neutral/chassis, surge voltage class III 600 V, nominal, to neutral/chassis, surge voltage class II Contact factory for more detailed information 12.8 Instrument Interface...
Page 148: Event Input Connections
Technical Speciﬁcations and Operational Parameters Standard Mechanical Relays Type & Number Four, Form-C (SPDT) contact sets Connections Pluggable 12-pole 5-mm terminal strip, with 4, 3-pole mating connections Rating 250 Vac/125 Vdc, 8 A max. 2000 VA/150 W max. Isolation 4000 Vrms for 1 minute to chassis Functions Programmable Load Control, with preset times or via systems interface...
Page 149: Flash Memory Data Storage
12.9 Flash Memory Data Storage and deﬁnitions in IEC 61000-4-30, section 5.4, Supply–Voltage Dips and Swells. System Triggers are 1133A conditions that may be important to know, such as the 1133A losing GNSS synchronization or the ﬂash memory module being full. External triggers occur with a voltage changing state at any of the four external event inputs.
Page 150: Ip Address
Technical Speciﬁcations and Operational Parameters 12.11 IP Address 192.168.000.254 Default value (other) Set up by user with PSCSV software. 12.12 Ethernet (Physical) Address Set at factory Last 3 pairs of 48 bits (shown in Hex) are same as unit serial number. Check using STATUS/TIME button (e.g. for 00-01-B3-BC-61-4E, 00-01-B3 is ﬁxed, BC-61-4E is the unit serial number, which is 12345678 in decimal).
Page 151: Power Quality Measurement Capability
12.14 Power Quality Measurement Capability 12.14 Power Quality Measurement Capability The 1133A is equipped to detect power quality issues and record them to ﬂash memory and/or send them out one of the available ports (RS-232/485/Modem and Ethernet). Flash memory may be conﬁgured to record types of information: (1) Revenue and (2) Event data.
Page 152: Limit Alarms
Technical Speciﬁcations and Operational Parameters 12.15 Limit Alarms Limit alarms may currently be deﬁned and set through PSCSV software and include alarming to the display, memory and through any of the communication channels. Functions Upper or lower limits may be set on most measured functions.
Page 153: Synchronization
12.17 Synchronization 12.17 Synchronization The standard 1133A includes an twelve-channel global positioning system (GNSS) receiver, which provides accurate time to a fraction of a microsecond anywhere in the world. Optionally, choose an IRIG-B decoder to synchronize the 1133A. By comparing an internal 10 MHz oscillator to the 1-PPS (pulse-per-second) output of the GNSS receiver, the 1133A maintains its frequency to within a few parts in 10 .
Page 154: Time Base Error
Technical Speciﬁcations and Operational Parameters 12.17.4 Time Base Error GNSS Locked Less than 1 µs, when locked to at least one satellite Unlocked 10 ppm, typical, after being locked for 10 minutes mini- mum (< 1 second/day unlocked, typical) 12.18 Instrument Power Requirements The 1133A derives its operating power from an integral power supply.
Page 155: Dnp 3.0 And Modbus Data Structures
1133A data from other software applications speciﬁcally designed for use with DNP 3.0 or Modbus. While these index codes have been tested successfully, Arbiter Systems has no control over the performance and suitability of using these applications with the Model 1133A, and makes no claim or warranty in this regard.
Page 156: 32-Bit Numbers & Little Endian
DNP 3.0 and MODBUS Data Structures the slave, the “command,” the data, and a check sum (LRC or CRC). It is traditionally implemented using RS232, RS422, or RS485 over a variety of media, but also is available as Modbus TCP/IP. Modbus can be transmitted via two modes: ASCII and RTU.
Page 157: Voltage And Current Data Structure
13.3 Voltage and Current Data Structure 13.3 Voltage and Current Data Structure Modbus Quantity Full Scale Type:Index Input Reg. AI:0 30001 A Voltage Vmax = 32767 AI:1 30002 A Voltage Phase 180deg = 32767 AI:2 30003 C Voltage Vmax = 32767 AI:3 30004 C Voltage Phase...
Page 158: Power Data Structure
DNP 3.0 and MODBUS Data Structures Modbus Quantity Full Scale Type:Index Input Reg. AI:24 30025 A Active Power (W) Pmax = 32767 AI:25 30026 A Reactive Power (VAR) Pmax = 32767 AI:26 30027 A Apparent Power (VA) Pmax = 32767 AI:27 30028 A Power Factor...
Page 159: Frequency, Flicker And Relative Phase Data Structure
13.5 Frequency, Flicker and Relative Phase Data Structure 13.5 Frequency, Flicker and Relative Phase Data Structure Modbus Quantity Full Scale Type:Index Input Reg. AI:48 30049 Frequency 327.67 Hz = 32767 AI:49 30050 Frequency Error 32.767 Hz = 32767 AI:50 30051 Frequency Rate of Change 327.67 Hz/s = 32767...
Page 160 DNP 3.0 and MODBUS Data Structures Frequency, Flicker and Relative Phase Register Values, continued. Modbus Quantity Full Scale Type:Index Input Reg. AI:76 30077 A Voltage Relative Phase (to A Current) 180deg = 32767 AI:77 30078 A Current Relative Phase Ref. = 0 AI:78 30079 C Voltage Relative Phase...
Page 161: Harmonic And Harmonic Summary Data Structure
13.6 Harmonic and Harmonic Summary Data Structure 13.6 Harmonic and Harmonic Summary Data Structure Modbus Quantity Full Scale Type:Index Input Reg. AI:96 30097 A RMS Harmonic Voltage Vmax = 32767 AI:97 30098 A RMS Harmonic Voltage, K-Factor Adjusted Vmax = 32767 AI:98 30099 A Voltage RMS THD, Fundamental Reference...
Page 162: Individual Harmonic Voltages And Currents
DNP 3.0 and MODBUS Data Structures 13.7 Individual Harmonic Voltages and Currents Modbus Quantity Full Scale Type:Index Input Reg. AI:128–227 30129-30228 A Voltage Individual Harmonic Data Vmax=32767 (M = 128, P = 129) 180deg = 32767 AI:228–327 30229-30328 A Current Individual Harmonic Data Imax=32767 (M = 228, P = 229) 180deg =...
Page 163: Energy Register Values
13.8 Energy Register Values 13.8 Energy Register Values Modbus Quantity Full Scale Type:Index Input Reg. PIc:0 30729–30730 A Active Energy Delivered Register (Wh) 32-bit integer PIc:1 30731–30732 C Active Energy Delivered Register (Wh) 32-bit integer PIc:2 30733–30734 B Active Energy Delivered Register (Wh) 32-bit integer PIc:3 30735–30736...
Page 164: Trigger Status
DNP 3.0 and MODBUS Data Structures Modbus Quantity Full Scale Type:Index Input Reg. PIc:36 30801–30802 A Qh Received Register 32-bit integer PIc:37 30803–30804 C Qh Received Register 32-bit integer PIc:38 30805–30806 B Qh Received Register 32-bit integer PIc:39 30807–30808 Total Qh Received Register 32-bit integer PIc:40 30809–30810...
Page 165: Event Input Voltage Settings
Chapter 14 Event Input Voltage Settings 14.1 General Information This section describes two conﬁgurations of the 1133A Event Inputs, and the installation of resistors to change the Event Input voltage range from 24–240 Vdc to 5 Vdc CMOS level. 14.2 Event Input Speciﬁcations For your convenience, the Event Input speciﬁcations are repeated below in Table 14.1.
Page 166 Event Input Voltage Settings CAUTION! Use care handling any of the components for static discharge. 1. Set the Line Power switch to OFF position (if so equipped). Disconnect power cord from rear panel. 2. Remove rack-ears (if so equipped) and remove the top cover using a T-25 driver (4 screws). 3.
Page 167: Accurate Ct Calibration For The Model 1133A
15.3 Calibrated Reference CT Arbiter Systems has developed the Model 936A, an accurate, multi-ratio reference CT suitable for these calibrations, and suitable for calibration by national standards laboratories at an accuracy which exceeds 0.01% (the present limit of traceability at NIST). This CT will have ratios of 1200 : 5, 1000 : 5, 800 : 5, and 600 : 5.
Page 168: Excitation Current Source
Accurate CT Calibration for the Model 1133A reference CT and M turns through the CT under test, ratios of (1000 M N ) : 5, (800 M N ) : 5, can be provided. This allows a wide range of test CT ratios to be calibrated with a single accurate reference artifact.
Page 169: Accessories
1% of the secondary current, then the accuracy required of the measuring instrument could be relaxed as well. The ideal instrument to make this comparison is the Arbiter Systems Model 931A Power System Analyzer. This instrument samples both of its selected input channels simultaneously, meeting the requirement stated above.
Page 170: Selection Of The Current Calibration Points
The Model 935 Current Source and Model 936 Reference CT are now available for this purpose. The popular Arbiter Systems Model 931 Power System Analyzer can accept three-phase primary currents up to 2000 amperes (higher under some conditions), with a transfer accuracy of 5 ppm and an overall traceable accuracy of 0.01%, or...
Page 171: A Working With Ethernet Connections
Appendix A Working with Ethernet Connections Checking the Computer Network Settings There are two methods of setting network values in your Windows computer: automatically or manually. To check how the addresses are set up in your machine, select the following: 1.
Page 172: Setting An Ip Address On The Computer
Working with Ethernet Connections Setting an IP Address on the Computer In some situations, it may be better to set up the network values manually. Set the IP address manually if directly connecting the 1133A to the computer Ethernet card with a crossover cable or through a hub.
Page 173: B Using Surge Arresters
Using Surge Arresters Introduction These instructions cover the installation of the Arbiter Systems Model AS0094500, Surge Arrester/ Grounding Block. The AS0094500 performs two basic functions: 1. Provides a solid and reliable grounding point for the antenna system connected to a GNSS receiver;...
Page 174: Installation
Using Surge Arresters Installation B.3.1 Mounting Location Location is a key consideration when installing the Model AS0094500. It should be mounted as close as possible to a good earth ground, such as a grounding rod or station ground grid. The shorter the path between the arrester and the earth ground, the more eﬀectively it will bypass the induced voltages.
Page 175: Physical Dimensions
B.3 Installation Figure B.2: Suggested Mounting of the AS0094500 B.3.6 Physical Dimensions Overall: 59 mm x 38 mm x 18 mm (2.32 in x 1.49 in x 0.71 in) LxWxH Mounting Hole Dim: 50 mm x 15 mm Mounting Hole Dia: 4 mm (0.157 in) F Connector Dim: 24 mm, center to center...
Page 176: C Irig-B Primer
Appendix C IRIG-B Primer Introduction IRIG-B is a complete serial time code of 74 bits that occurs once per second. It be subdivided into various forms, including modulated (analog), unmodulated (CMOS/TTL/Level-Shift) and with the C37.118 speciﬁcation bits enabled or disabled (IEEE-1344 mode turned ON or OFF). The Model 1133A transmits only unmodulated IRIG-B, and allows you to also set the time zone to Local or UTC.
Page 177: Irig-B Type Codes
C.1 Introduction date, time changes and time quality information of the time signal. Timing information is divided into logic ones, zeros and reference bits. There are three functional groups of bits in the IRIG-B time code, in the following order: - Binary Coded Decimal (BCD), Control Function (CF) and Straight Binary Seconds (SBS).
Page 178: Connecting The Irig-B Output
IRIG-B Primer Connecting the IRIG-B Output The Model 1133A comes equipped with one, high drive, IRIG-B output connector using screw terminals. Terminal connectors are compatible with twisted pair cabling. If using a coaxial cable, you can easily transition from the two wires (coming from the back of the 1133A) to a BNC connector using a BNC Breakout.
Page 179: Connecting Unmodulated Irig-B
C.2 Connecting the IRIG-B Output C.2.4 Connecting Unmodulated IRIG-B To drive multiple loads from one clock timing output, make sure they are wired in parallel. Some call this “Daisy-Chaining”, however the idea is to drive all of these loads in parallel from the single output.
Page 180: Solutions
IRIG-B Primer Since electromagnetic waves travel slower through any cable, cable manufacturers normally specify cable with a velocity factor (VF), which is a fraction of the speed of light in free space, and characteristic of the speciﬁc cable. The Velocity Factor for the RG-6 cabling used by Arbiter Systems for GNSS antenna connections, is about 83% of C.
Page 181: D Ce Mark Certification
Appendix D CE Mark Certiﬁcation Introduction On the following page contains the individual CE Mark Certiﬁcation for models covered in this manual. This includes Model 1133A Power Sentinel, GNSS-Synchronized Power Quality/Revenue — Standard...
Page 182 October 8, 2015 Directives: 2004/108/EC Electromagnetic Compatibility 73/23/ EEC Low Voltage Safety Model Number(s): 1133A Power Sentinel* Multifunctional Synchronized Measurement Device Manufacturer: Arbiter Systems, Inc. 1324 Vendels Circle, Suite 121 Paso Robles, CA 93446 Harmonized EN50121-4:2006 Standards: IEC61850-3 Ed.2 Referenced:...
Page 183: E Vorne Output Values
Appendix E Vorne Output Values Introduction This section describes the Vorne serial output strings when selected from the Conﬁgure Ports menu. To conﬁgure the 1133A to broadcast the desired message via Vorne protocol, see Section 7.2.2. Vorne Protocol in Use Selecting the Vorne protocol from the conﬁgure ports menu conﬁgures either Communication Port 1 or 2 to broadcast data to support Vorne large format time displays.
Page 184 Vorne Output Values The decimal points shown above are not actually transmitted in the data stream, but their position is implied. The displays are conﬁgured to show the decimal point in this position. *Time Deviation is output in two formats in the same data stream: 33 s.ss and 34 sss.sss. Output for the 33 s.ss format will be +9.bb when the measured value exceeds +9.99 (b = blank).
Page 185 Introduction This section describes uploading new ﬁrmware into the Model 1133A. The Flash Update Application, called 1133A Uploader, and is available from the Arbiter Systems website at www.arbiter.com. Search under Downloads > Software and locate it under the product name 1133A.
Page 186 Uploading Firmware 4. From the 1133A Uploader menu, select Settings > Serial Port and choose the correct serial port number for your pc. If using a USB-to-Serial adapter choose the COM port number assigned to the adapter. 5. Select Settings > Baud Rate and choose the same baud rate as on the 1133A. Locate the 1133A Baud rate by pressing the Status/Time key (hold for three seconds to get second set).
Page 187 Bibliography [1] Schulz, Richard P. and Laios, Beverly B., Triggering Tradeoﬀs for Recording Dynamics, IEEE Computer Applications in Power, April 1997, pp. 44ﬀ. [2] Hauer, John F., An Oscillation Detector Used in the BPA Power System Distur- bance Monitor, IEEE Transactions on Power Systems, Feb. 1990, pp. 74ﬀ. [3] Dickerson, William J., IRIG-B Time Code Accuracy and Connection Requirements with comments on IED and system design considerations, https://www.arbiter.com/ﬁles/product-attachments/irig accuracy and connection requirements.pdf,...
Page 188 Index accessories list of data types, 92 included, 1 phasor data, 99 optional relative phase data, 100 cables, 25 waveform data, 98 crimp tool and connectors, 25 Buttons in–line ampliﬁer, 25 Basic Data, 39 surge arrester, 24 Channel Current, 40 antenna Channel Voltage, 40 1133A connection, 27...
Page 189 INDEX PMU-2, 39 COM1–2 settings, 49 Stop All, 38 DNP, 54 Stop This, 38 settings, 55 Unit Info, 39 Ethernet settings, 50 Waveform Data, 39 ﬂash memory, 74 IRIG-B, 53 C37.118, 36, 42, 48 measurement parameters, 51 basic steps, 57 MODBUS COM1 or COM2, 49 selection, 56...
Page 190 INDEX CT calibration Fault indication, 5 accurate, 147 ﬁlter tool, see Broadcast data ﬁrmware display downloads, ii calibration information, 32 updates, ii date–time, 31 uploading, 165 energy, 33 frequency alert, audible, 61 event log, 30 front panel drawing, see panel drawing, front fault indication, 34 Function Description ﬂash memory, 31...
Page 191 INDEX surge arrester, 24 panel drawings rear, 6 handling PMU, see C37.118 precautions, 1 Conﬁguring in PSCSV, 58 ghost, 57, 60 IP address PSCSV broadcast, 99 setting on 1133A, 152 PSCSV protocol, 39 IRIG-B PSCSV type, 92 Appendix C, 156 power quality, 36, 81, 124, 128, 131 C37.118 description, 157 reference, 83...
Page 192 INDEX title page, v toolbar broadcast, 38 conﬁguration, 39 connection, 38 ﬂash, 40 input, 40 main, 38 records, 41 Triggers deﬁning data logged, 86 downloading event records, 88 event notiﬁcation, 88 hysteresis, 83 logging data, 85 Power Quality, 81 Power Quality deﬁnitions, 81 PQ reference, 83 Schulz-Laios settings, 87 sliding reference, 83...

Arbiter Systems Power Sentinel 1133A Operation Manual

1 Unpacking the 1133A

2 Front and Rear Panels

3 Connecting Inlet Power, Input and Output Signals

4 GNSS Antenna and Cable Information

5 Startup Operation and Indication

6 PSCSV Basics - Starting, Connecting and Logging in

7 Configuring the Model 1133A

8 Working with Triggers and Downloading Event Records

9 Working with Broadcast Data

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arbiter Systems Power Sentinel 1133A

Summary of Contents for Arbiter Systems Power Sentinel 1133A
