B.3 Installation
B.3.6

Physical Dimensions

Overall:
Mounting Hole Dim:
Mounting Hole Dia:
F Connector Dim:
Weight:

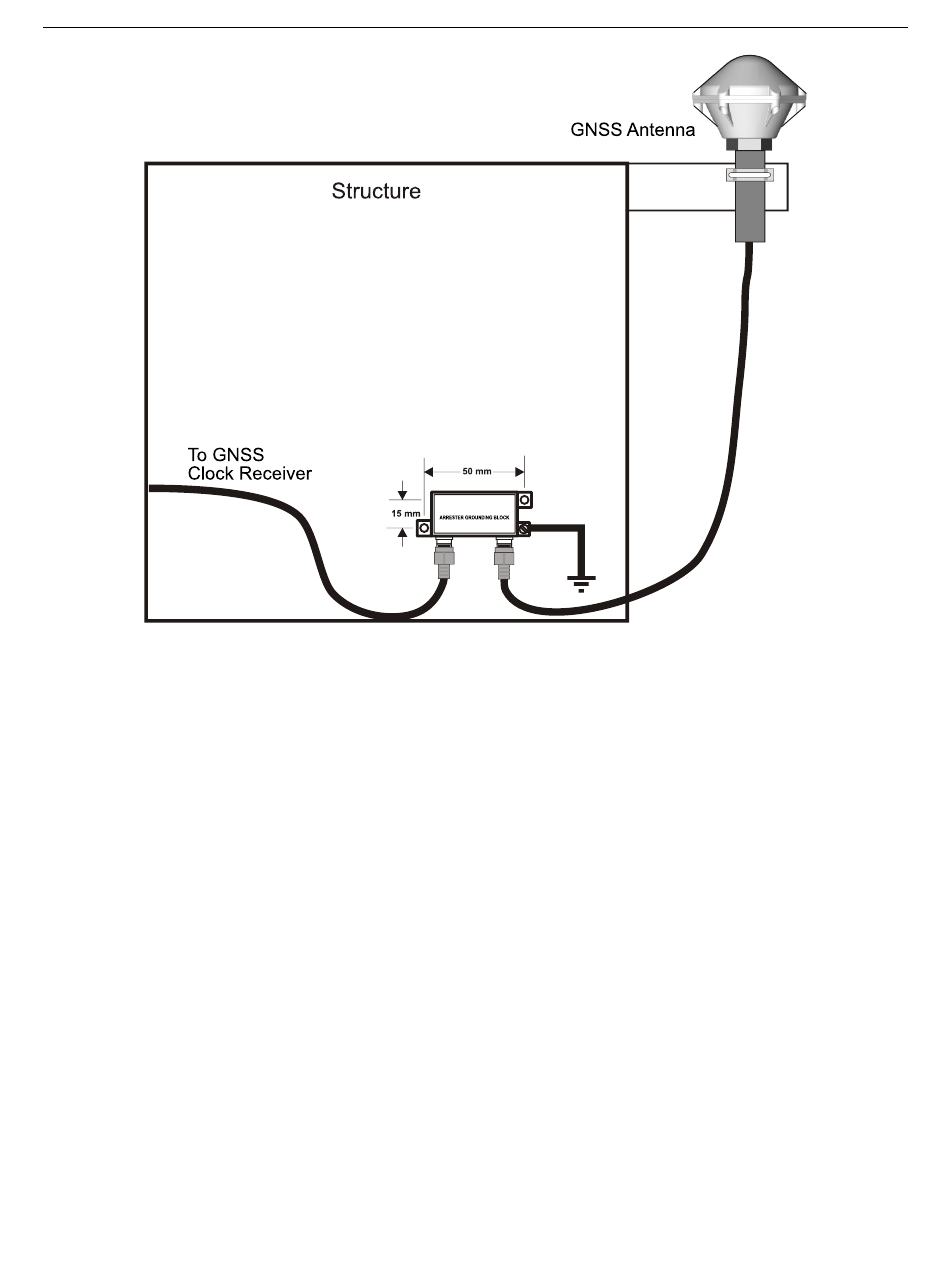

Figure B.2: Suggested Mounting of the AS0094500
59 mm x 38 mm x 18 mm (2.32 in x 1.49 in x 0.71 in) LxWxH
50 mm x 15 mm
4 mm (0.157 in)
24 mm, center to center
48.2 g (1.7 oz)
155
