5.2.5 Status/Time Keys – Secondary Functions
To view any of the secondary status functions, press and hold the Status/Time key for three seconds.
It should shift to the second set of status functions. To return to primary status functions, press
and hold the Status/Time key for three seconds.
Press the Status/Time key to view any one of five, secondary instrument status menus, which
are given here in sequential order. Continue pressing this key to return to a previous Status/Time
view.
Status, Program ROM Information
Press the Status/Time key to view the program ROM Serial Number and Date, and the DSP ROM
Identification Date. To access this screen, see Section 5.2.5 notes.

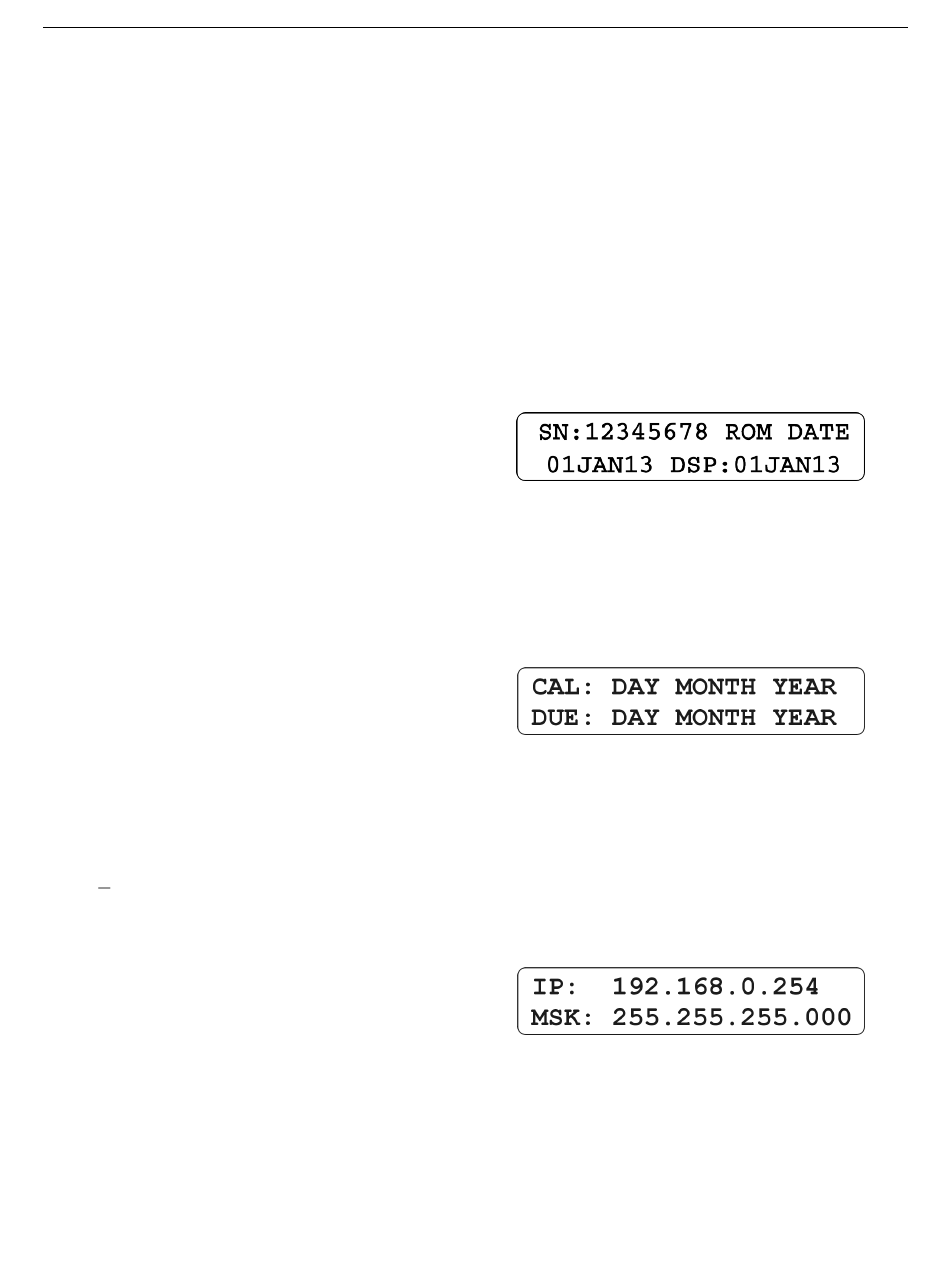

Figure 5.13: Status, Program Information

Status, Calibration Information

Press the Status/Time key to view the calibration information – last calibration and calibration
due date. To access this screen, see Section 5.2.5 notes.
Figure 5.14: Status, Calibration Information
Status – Ethernet, IP Address and Subnet Mask
Press the Status/Time key to view the IP address and subnet mask. See Section 5.2.5 notes to
access this screen. To change any Ethernet communications parameter, see Section 7.3, "Configure
Ports Ethernet". Once the IP Address is changed, the 1133A must be power cycled for the new
IP address to take effect.
Figure 5.15: Status, Ethernet; Address and
Subnet Mask – default shown
