16
Connecting Inlet Power, Input and Output Signals
1133A Three-Phase, Three-Wire, Two-Element Delta Circuits with Current
and Potential Transformers

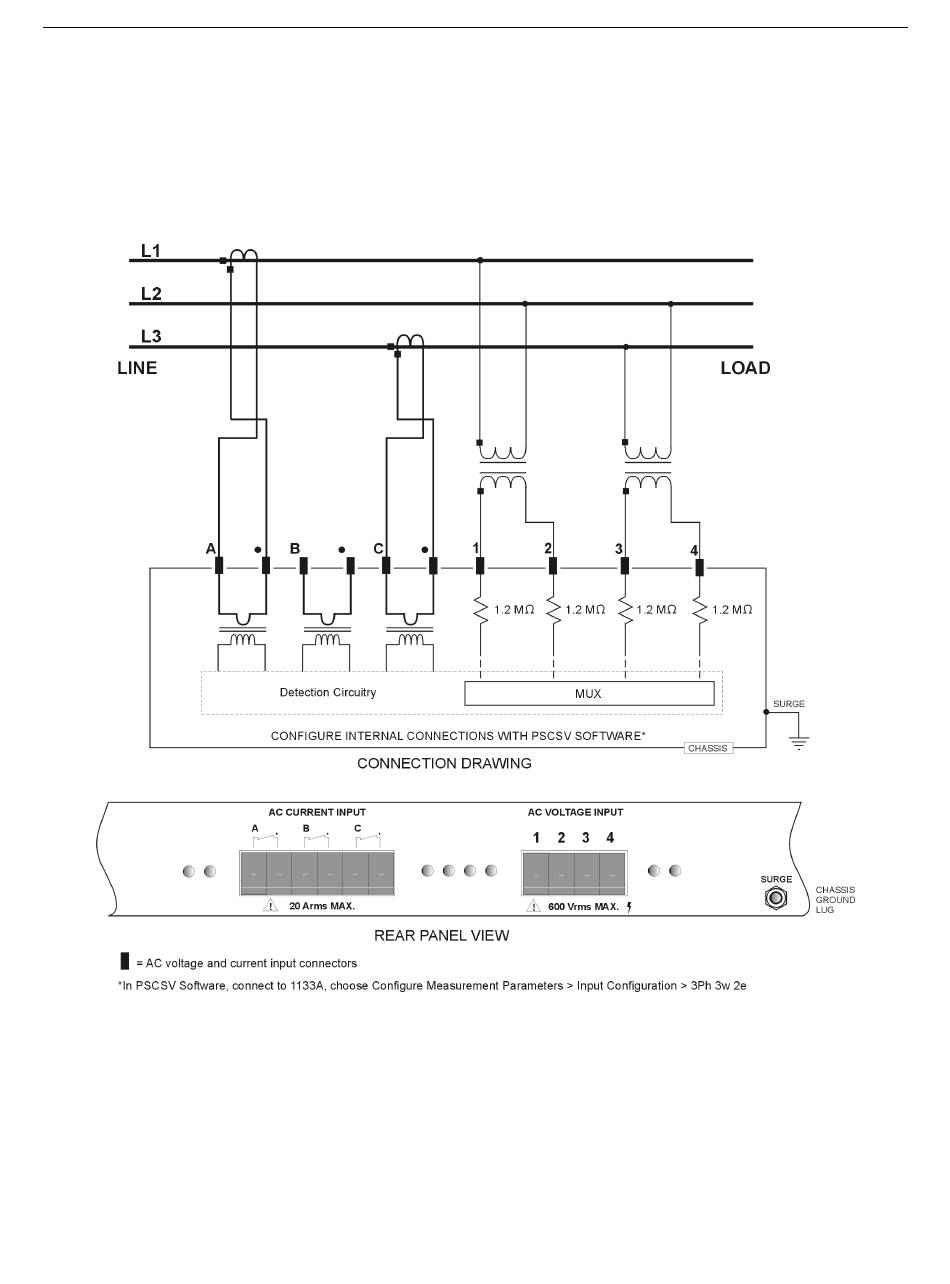

Figure 3.6: Connection Diagram – DSP Notation, 3Ph3W2E
