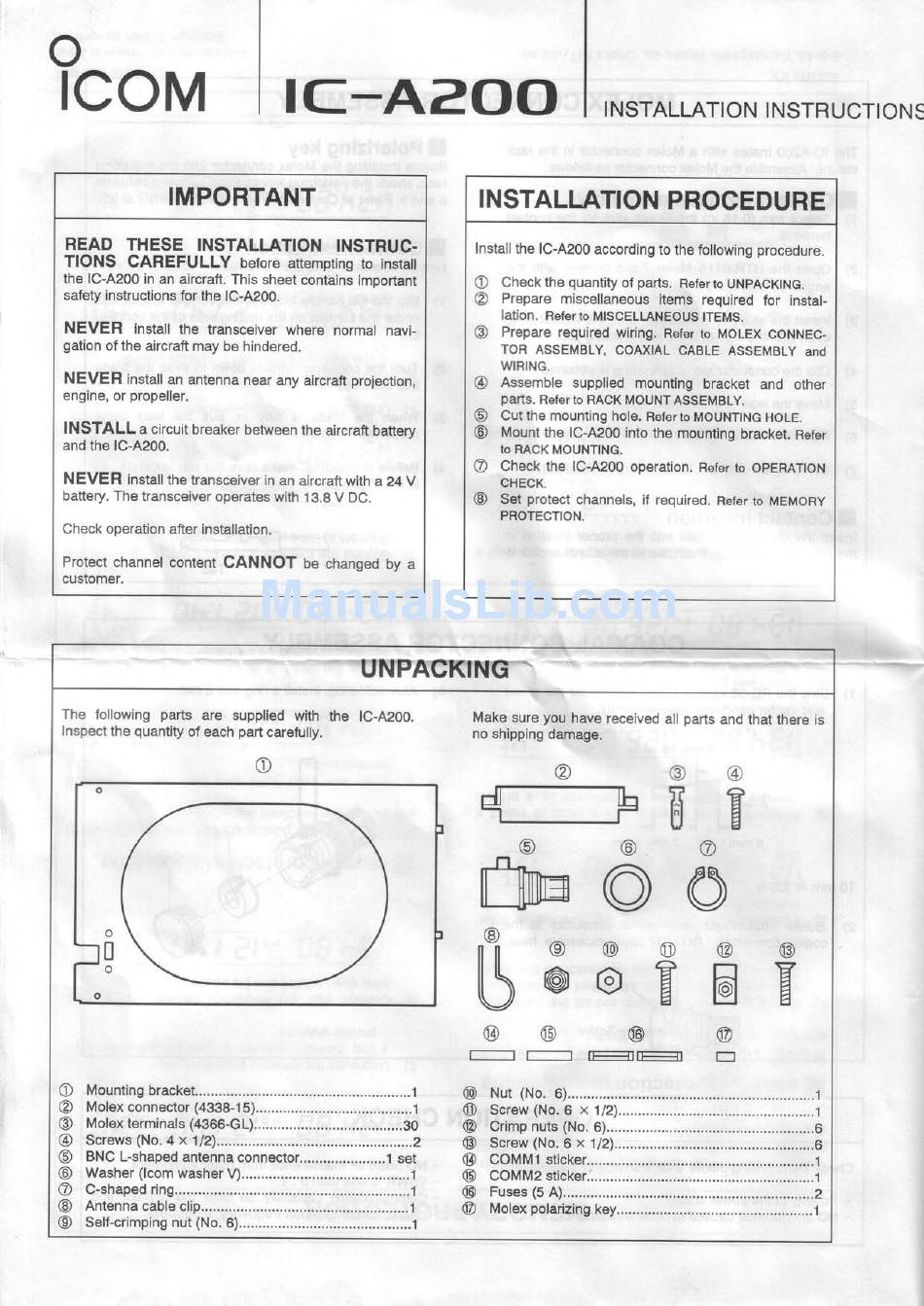

Icom IC-A200 Installation Instructions Manual

o
tcoM
lc-A200
I NSTALLATION I NSTRUCTI ONS
IMPORTANT
READ THESE INSTALLATION INSTRUC.
TIONS CAREFULLY before aftempting ro instatl
the lC-A200 in an aircraft. This sheet contains imoortant
salety instructions for the lC-A200.
NEVER install the transceiver where normal navi-
gation of the aircraft may be hindered.
NEVER install an antenna near any aircraft projection,
engine, or propeller.
INSTALL a circuit breaker between the aircraft battery
and the lc-A200.
NEVER install the transceiver in an aircraft with a 24 V
battery. The transceiver operates with 13.8 V DC.
Check operation after installation.
Protect channel content CANNOT be changed by a
cuslomer.
INSTALLATION PROCEDURE
Install the lC-A200 according to the following procedure,
O Check the quantity of parts. Refer to UNpAcKtNG.
@ Prepare miscellaneous items required for instal-
lalion. Refer to MISCELLANEOUS
|TEMS.
@ Prepare required wiring. Refer to MOLEX CONNEC-
TOR ASSEMBLY, COAXIAL CABLE ASSEMBLY and
W I R I N G ,
Assemble supplied mounting bracket and other
parts. Refer to RACK MOUNT ASSEMBLY.
Cut the mounting hole. Refer to MOUNTtNe HOLE.
Mount the lC-A200 into the mounting bracket. Refer
to RACK MOUNTING.
Check the lC-A200 operation. Refer to OPERAT|ON
C H E C K .
Set protect channels, if required. Refer to MEMORY
PROTECTION.
@
@
