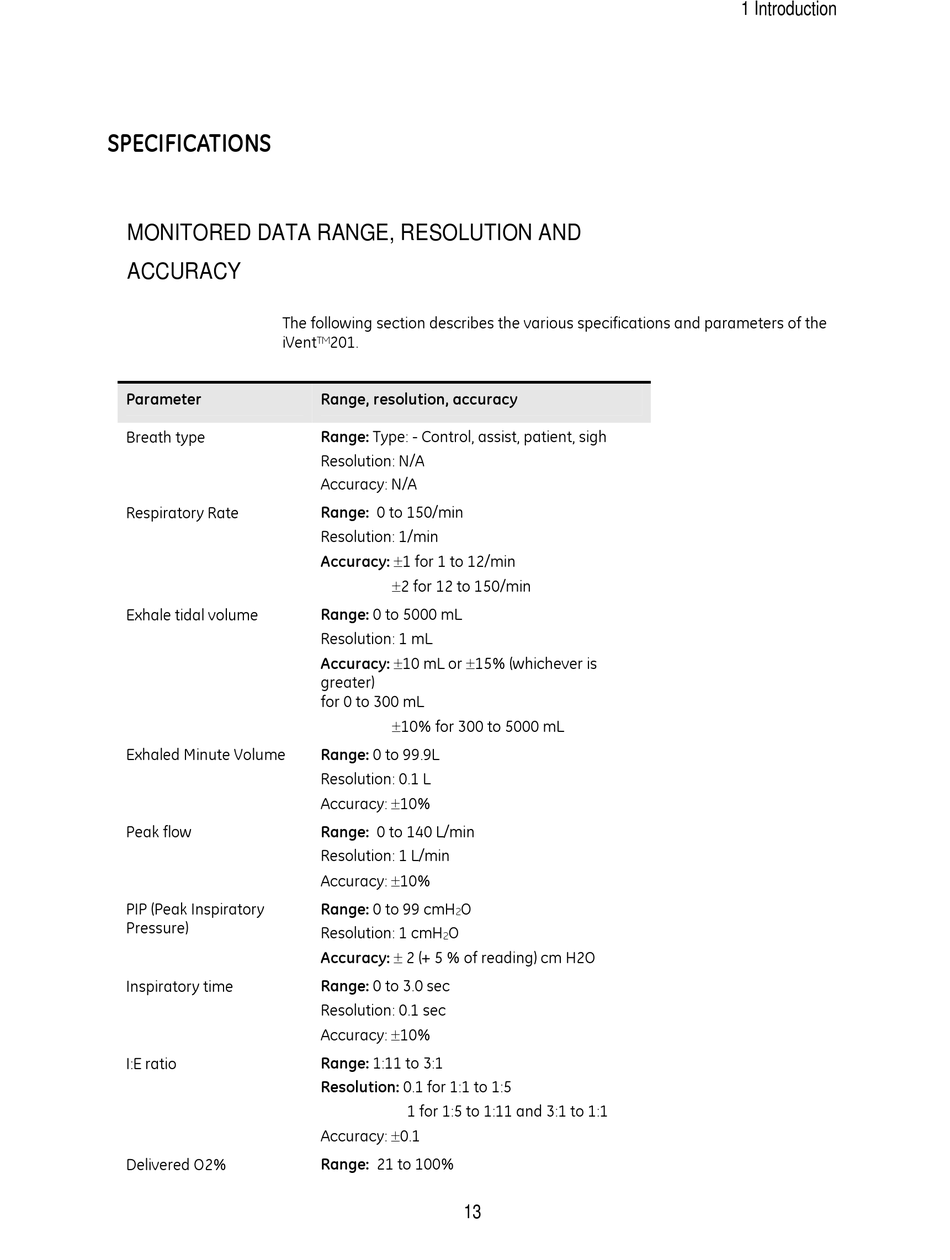

SPECIFICATIONS

MONITORED DATA RANGE, RESOLUTION AND
ACCURACY
The following section describes the various specifications and parameters of the
iVent
Parameter
Breath type
Respiratory Rate
Exhale tidal volume
Exhaled Minute Volume
Peak flow
PIP (Peak Inspiratory
Pressure)
Inspiratory time
I:E ratio
Delivered O2%
201.
TM
Range, resolution, accuracy
Range: Type: - Control, assist, patient, sigh
Resolution: N/A
Accuracy: N/A
Range: 0 to 150/min
Resolution: 1/min
Accuracy: 1 for 1 to 12/min
2 for 12 to 150/min
Range: 0 to 5000 mL
Resolution: 1 mL
Accuracy: 10 mL or 15% (whichever is
greater)
for 0 to 300 mL
10% for 300 to 5000 mL
Range: 0 to 99.9L
Resolution: 0.1 L
Accuracy: 10%
Range: 0 to 140 L/min
Resolution: 1 L/min
Accuracy: 10%
Range: 0 to 99 cmH O
2
Resolution: 1 cmH O
2
Accuracy:  2 (+ 5 % of reading) cm H2O
Range: 0 to 3.0 sec
Resolution: 0.1 sec
Accuracy: 10%
Range: 1:11 to 3:1
Resolution: 0.1 for 1:1 to 1:5
1 for 1:5 to 1:11 and 3:1 to 1:1
Accuracy: 0.1
Range: 21 to 100%
13
