Setting the FiO2 Alarm

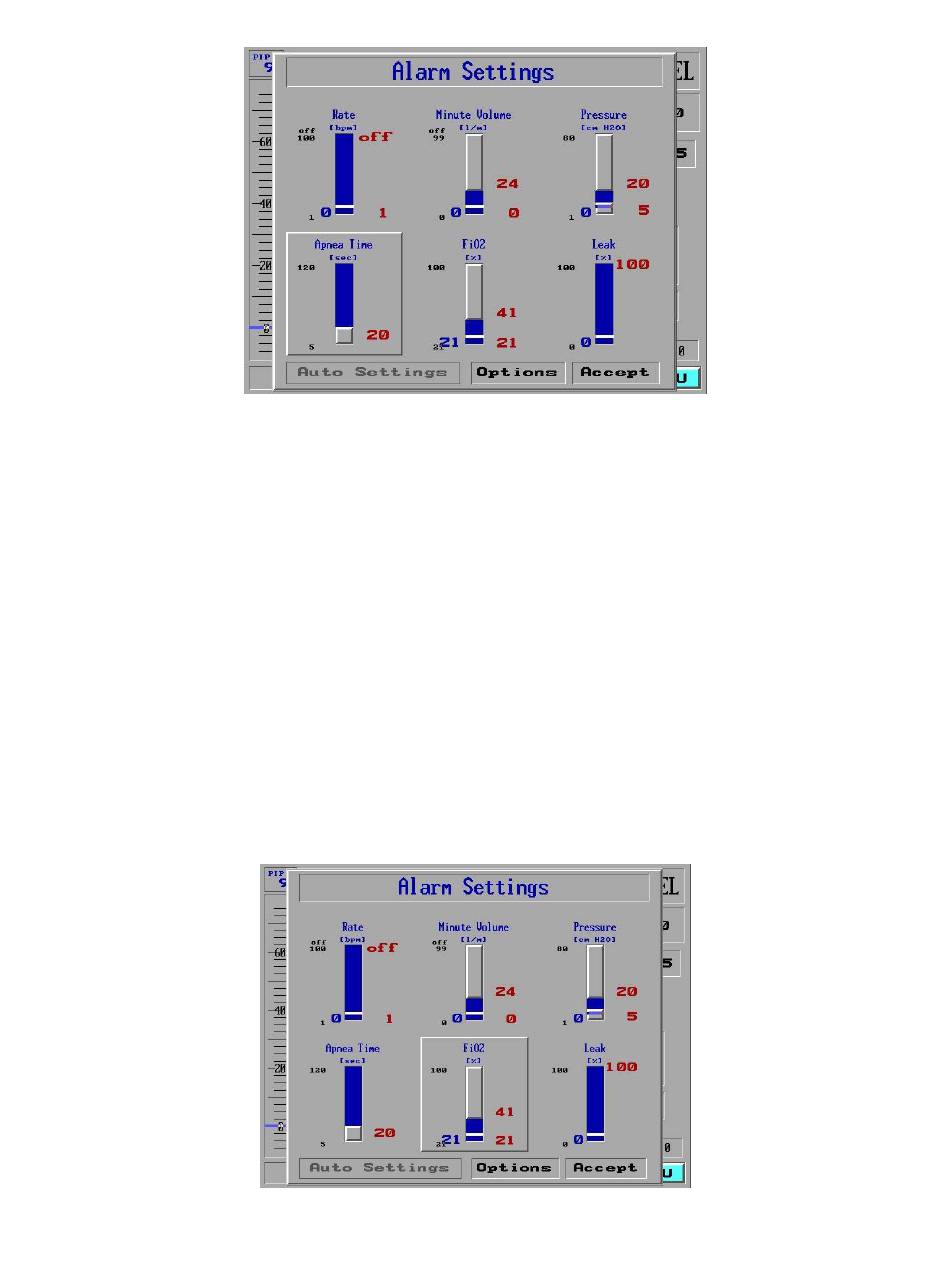

Figure 137: The Apnea Time Alarm Slider Selected
4. Press the Control Knob to change alarm setting for the Apnea Time.
5. Dial the Control Knob to select a time between the minimum and
maximum ranges.
6. Press the Control Knob to confirm the settings.
7. The Alarm Setting screen is re-displayed. You can dial and select an
additional alarm setting to adjust, or dial and select Accept to accept all
the alarm settings and return to the Main screen.
To set the FiO2 alarm upper and lower limits:
1. Select the Menu option in the Main screen to view the Main Menu.
2. Select the first item on the Main Menu, Alarm Settings.
3. In the Alarm Settings screen, dial the Control Knob until FiO2 is selected
in relief (Figure 138).
Figure 138: The FiO2 Alarm Slider Selected
