Low Pressure Oxygen Supply - GE iVent 201 Series User's Reference Manual

CAUTION When using the iVent
the oxygen concentration should be verified periodically with an external
calibrated oxygen analyzer

LOW PRESSURE OXYGEN SUPPLY

Connecting a low pressure O2 supply Adapter requires a low pressure O2
filter/adapter, fitted with a 22mm female port.
To connect the low pressure oxygen supply:
1.
2.

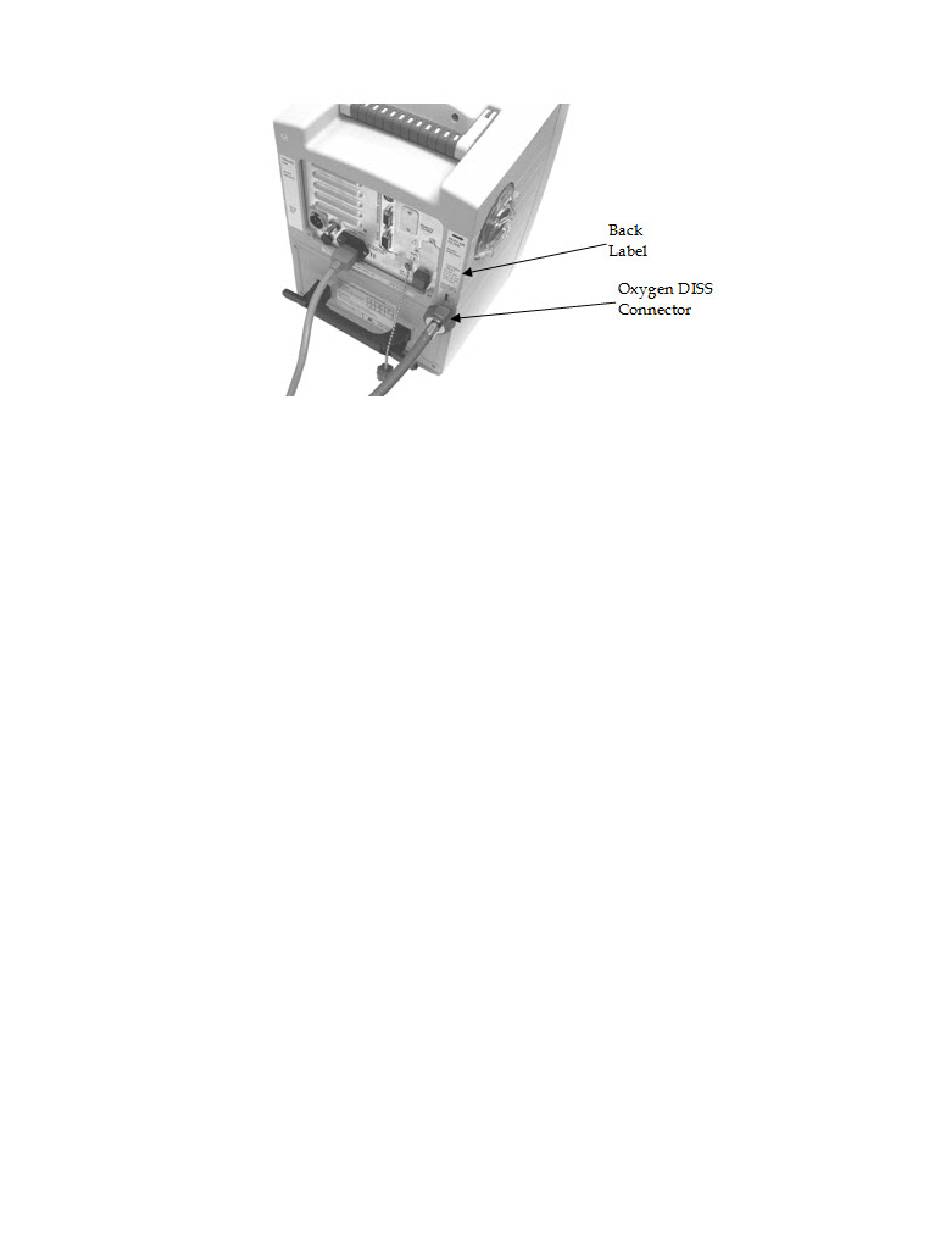

Figure 11: The Oxygen Inlet Connector
201 with a pressurized oxygen supply, the accuracy of
TM
Remove the air inlet filter by turning it counterclockwise. Then install the Low
Pressure O2 filter/adapter with a clockwise turn.
You are now ready to connect the Low Pressure O2 Supply Adapter to the air
inlet port of the ventilator (Figure 12).
39
2 Setting up
