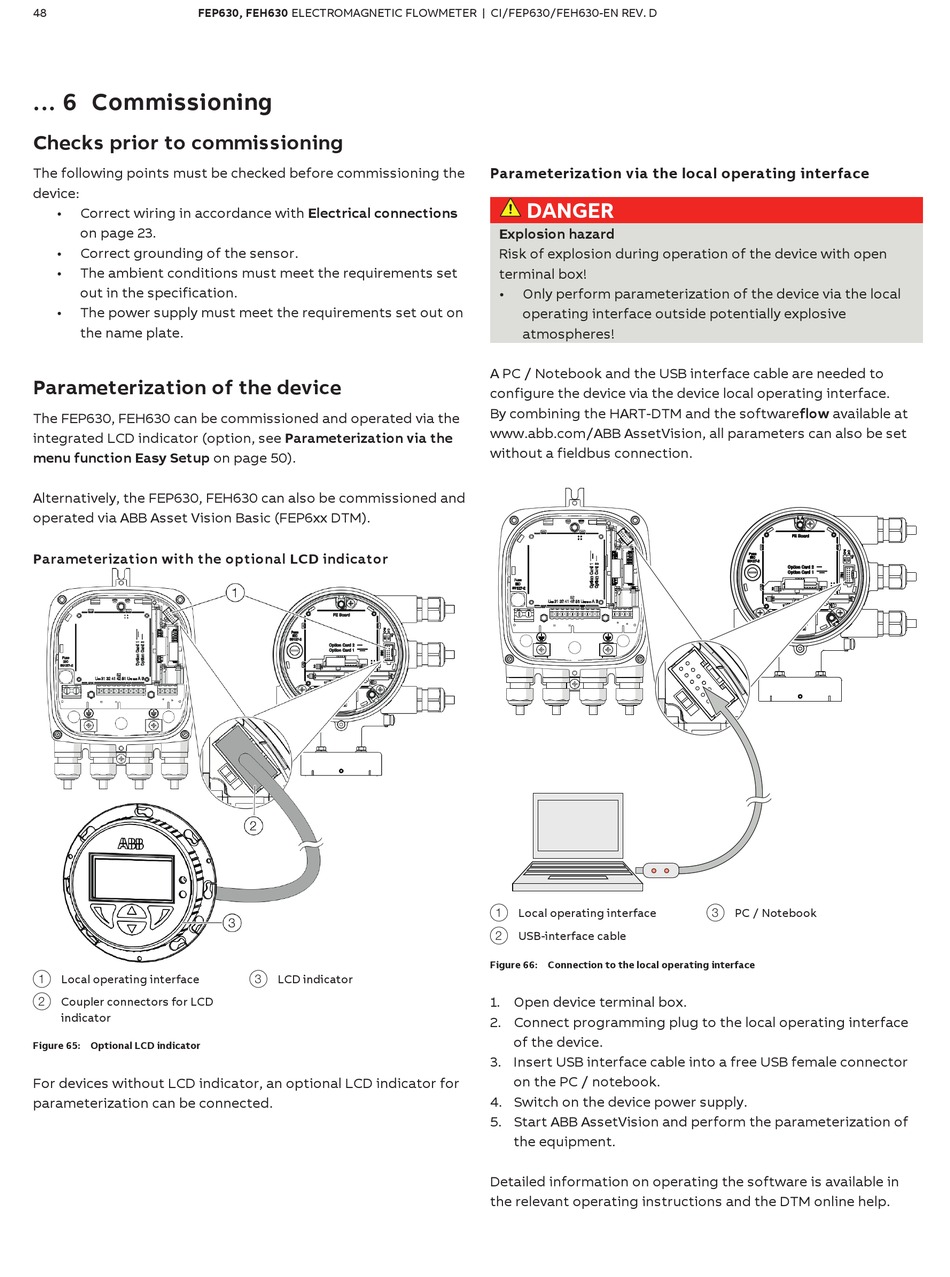

48 FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D
... 6 Commissioning

Checks prior to commissioning

The following points must be checked before commissioning the
device:
• Correct wiring in accordance with Electrical connections
on page 23.
• Correct grounding of the sensor.
• The ambient conditions must meet the requirements set
out in the specification.
• The power supply must meet the requirements set out on
the name plate.

Parameterization of the device

The FEP630, FEH630 can be commissioned and operated via the
integrated LCD indicator (option, see Parameterization via the
menu function Easy Setup on page 50).
Alternatively, the FEP630, FEH630 can also be commissioned and
operated via ABB Asset Vision Basic (FEP6xx DTM).
Parameterization with the optional LCD indicator
1 Local operating interface
2 Coupler connectors for LCD
indicator
Figure 65: Optional LCD indicator
For devices without LCD indicator, an optional LCD indicator for
parameterization can be connected.
3 LCD indicator

Parameterization via the local operating interface

DANGER
Explosion hazard
Risk of explosion during operation of the device with open
terminal box!
• Only perform parameterization of the device via the local
operating interface outside potentially explosive
atmospheres!
A PC / Notebook and the USB interface cable are needed to
configure the device via the device local operating interface.
By combining the HART-DTM and the softwareflow available at
www.abb.com/ABB AssetVision, all parameters can also be set
without a fieldbus connection.
1 Local operating interface
2 USB-interface cable
Figure 66: Connection to the local operating interface
1. Open device terminal box.
2. Connect programming plug to the local operating interface
of the device.
3. Insert USB interface cable into a free USB female connector
on the PC / notebook.
4. Switch on the device power supply.
5. Start ABB AssetVision and perform the parameterization of
the equipment.
Detailed information on operating the software is available in
the relevant operating instructions and the DTM online help.
3 PC / Notebook
