FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D

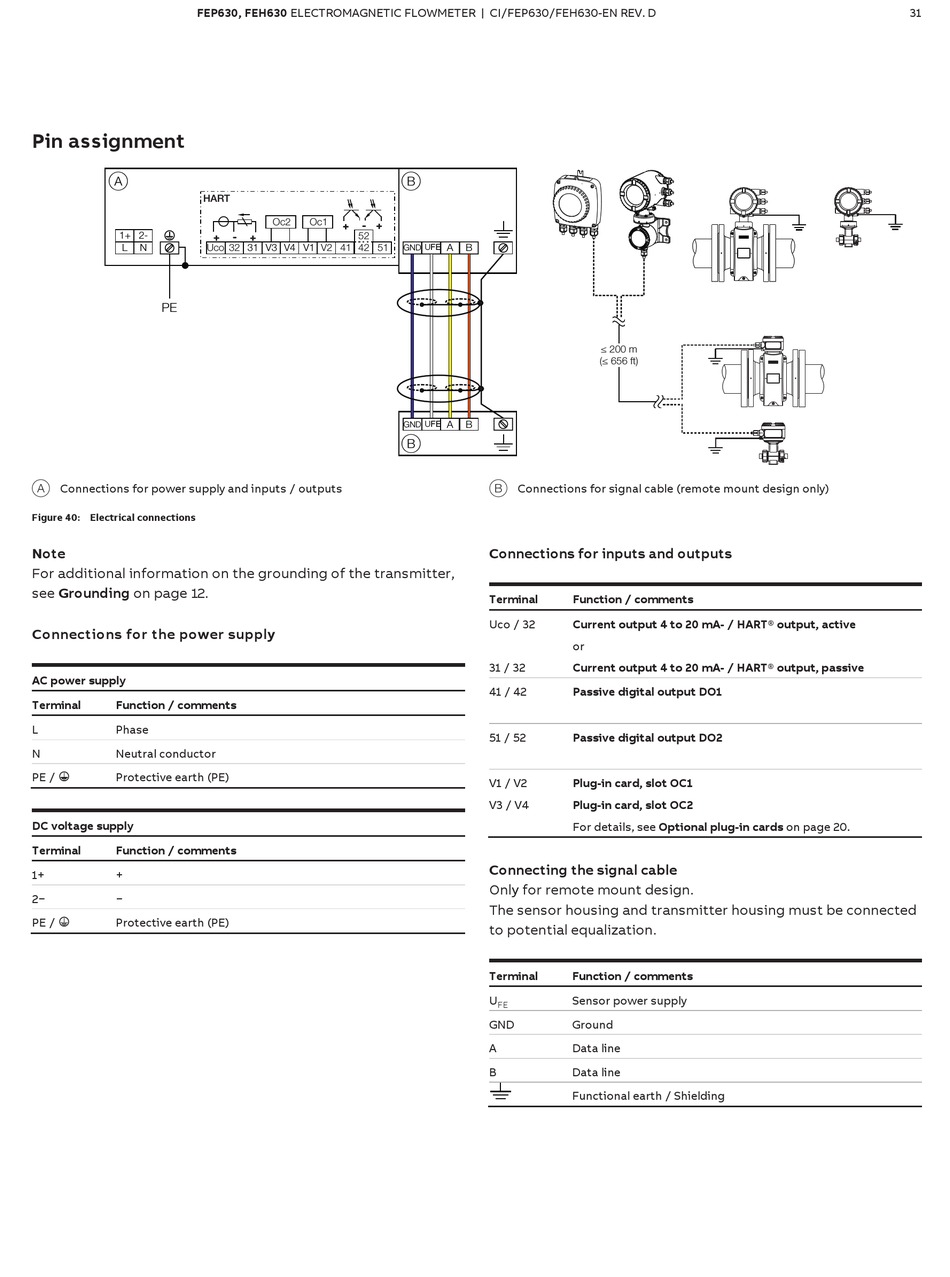

Pin assignment

A
HART
1+ 2-
Uco 32
L N
PE
A Connections for power supply and inputs / outputs
Figure 40: Electrical connections
Change from one to two columns
Note
For additional information on the grounding of the transmitter,
see Grounding on page 12.
Connections for the power supply
AC power supply
Terminal Function / comments
L Phase
N Neutral conductor
PE / Protective earth (PE)
DC voltage supply
Terminal Function / comments
1+ +
2
PE / Protective earth (PE)
Oc2 Oc1
-
+ +
- 52
+ +
31 V3 V4 V1 42 51
V2 41
B
UFE A B
GND
A B
GND UFE
B
B Connections for signal cable (remote mount design only)
Connections for inputs and outputs
Terminal Function / comments
Uco / 32 Current output 4 to 20 mA- / HART® output, active
or
31 / 32 Current output 4 to 20 mA- / HART® output, passive
41 / 42 Passive digital output DO1
51 / 52 Passive digital output DO2
V1 / V2 Plug-in card, slot OC1
V3 / V4 Plug-in card, slot OC2
For details, see Optional plug-in cards on page 20.
Connecting the signal cable
Only for remote mount design.
The sensor housing and transmitter housing must be connected
to potential equalization.
Terminal Function / comments
U Sensor power supply
FE
GND Ground
A Data line
B Data line
Functional earth / Shielding
≤ 200 m
( 656 ft) ≤
31
