Marking in accordance with Pressure Equipment Directive
2014/68/EU
Information on the relevant fluid group (Figure 1, Position
• PED: Fluid 1, Gas
Fluid group 1 = hazardous fluids, liquid, gaseous. (PED =
PressureEquipmentDirective).
• SEP
If the pressure equipment is not in the scope of the
Pressure Equipment Directive, it is classified in
accordance with SEP = Sound Engineering Practice
('sound engineering practice') in accordance with Art. 4
para. 3 of the Pressure Equipment Directive.
If there is no such information at all, there is no compliance with
the requirements of the Pressure Equipment Directive.
Water supplies and connected equipment accessories are
classed as an exception in accordance with guideline 1/16 of
Art. 1 Para. 3.2 of the Pressure Equipment Directive.

Additional warning plate

Devices which are approved for use in potentially explosive
atmospheres have an additional warning plate.
Warnung!
Gefahr durch elektrostatische Entladung
Warning!
1
Danger by electrostatic unloading
AVERTISSEMENT!
Risque de d charge électrostatique
Warnung!
Nicht öffnen, wenn eine explosionsfähige Athmosphäre vorhanden ist.
Warning!
2
DO NOT OPEN WHEN AN EXLPOSIVE ATMOSPHERE IS PRESENT
AVERTISSEMENT!
Ne pas ouvrir en presence d'une atmosphere explosive
Achtung:
Heisse Oberfläche
Warning:
3
Hot Surface
Attention:
Surface tres chaude
1 WARNING - Danger due to
electrostatic discharge.
2 WARNING - Do not open if an
explosive atmosphere is
present.

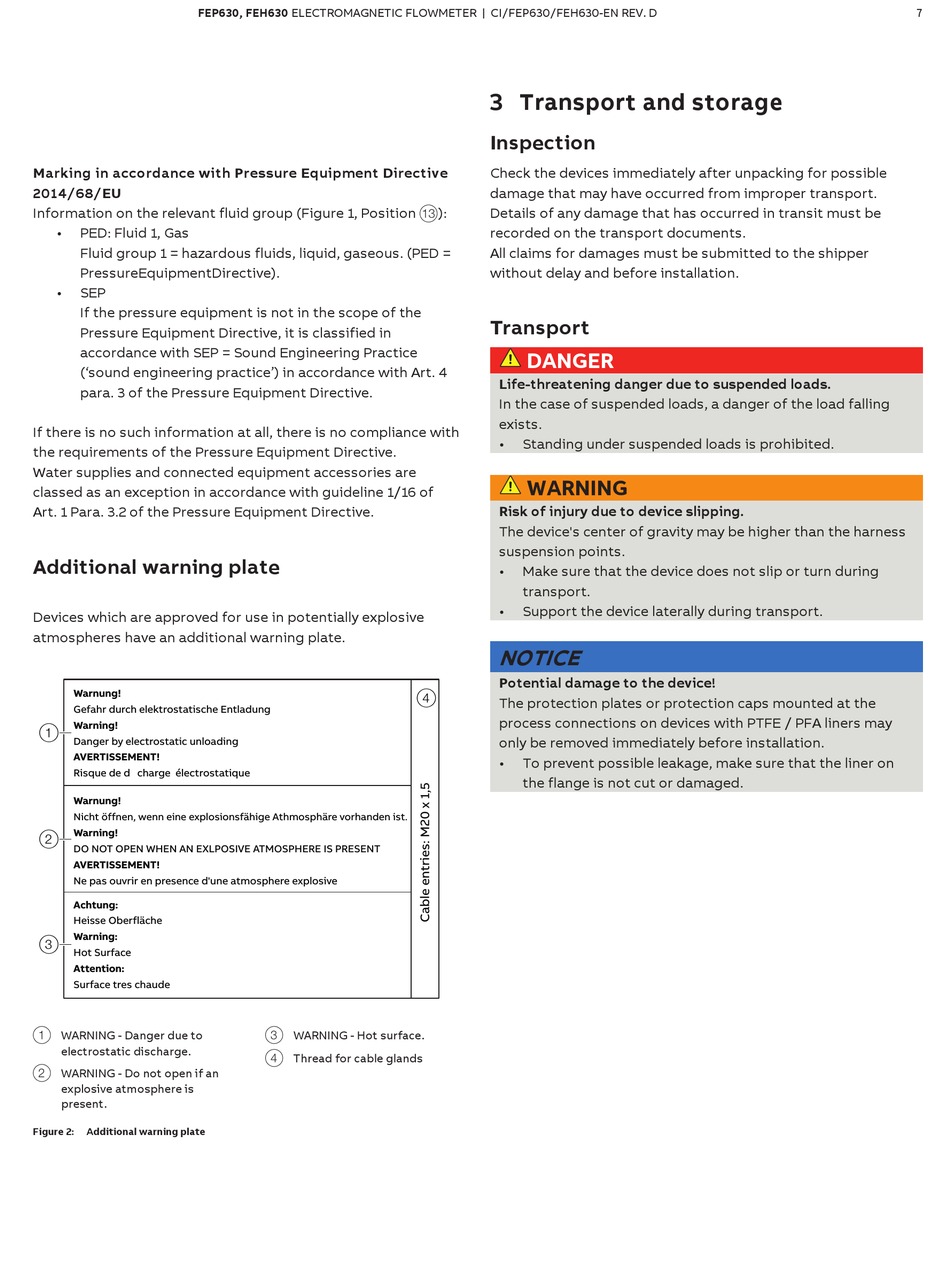

Figure 2: Additional warning plate
):
m
4
G12174
3 WARNING - Hot surface.
4 Thread for cable glands

3 Transport and storage

Inspection

Check the devices immediately after unpacking for possible
damage that may have occurred from improper transport.
Details of any damage that has occurred in transit must be
recorded on the transport documents.
All claims for damages must be submitted to the shipper
without delay and before installation.

Transport

DANGER
Life-threatening danger due to suspended loads.
In the case of suspended loads, a danger of the load falling
exists.
• Standing under suspended loads is prohibited.
WARNING
Risk of injury due to device slipping.
The device's center of gravity may be higher than the harness
suspension points.
• Make sure that the device does not slip or turn during
transport.
• Support the device laterally during transport.
NOTICE
Potential damage to the device!
The protection plates or protection caps mounted at the
process connections on devices with PTFE / PFA liners may
only be removed immediately before installation.
• To prevent possible leakage, make sure that the liner on
the flange is not cut or damaged.
7
