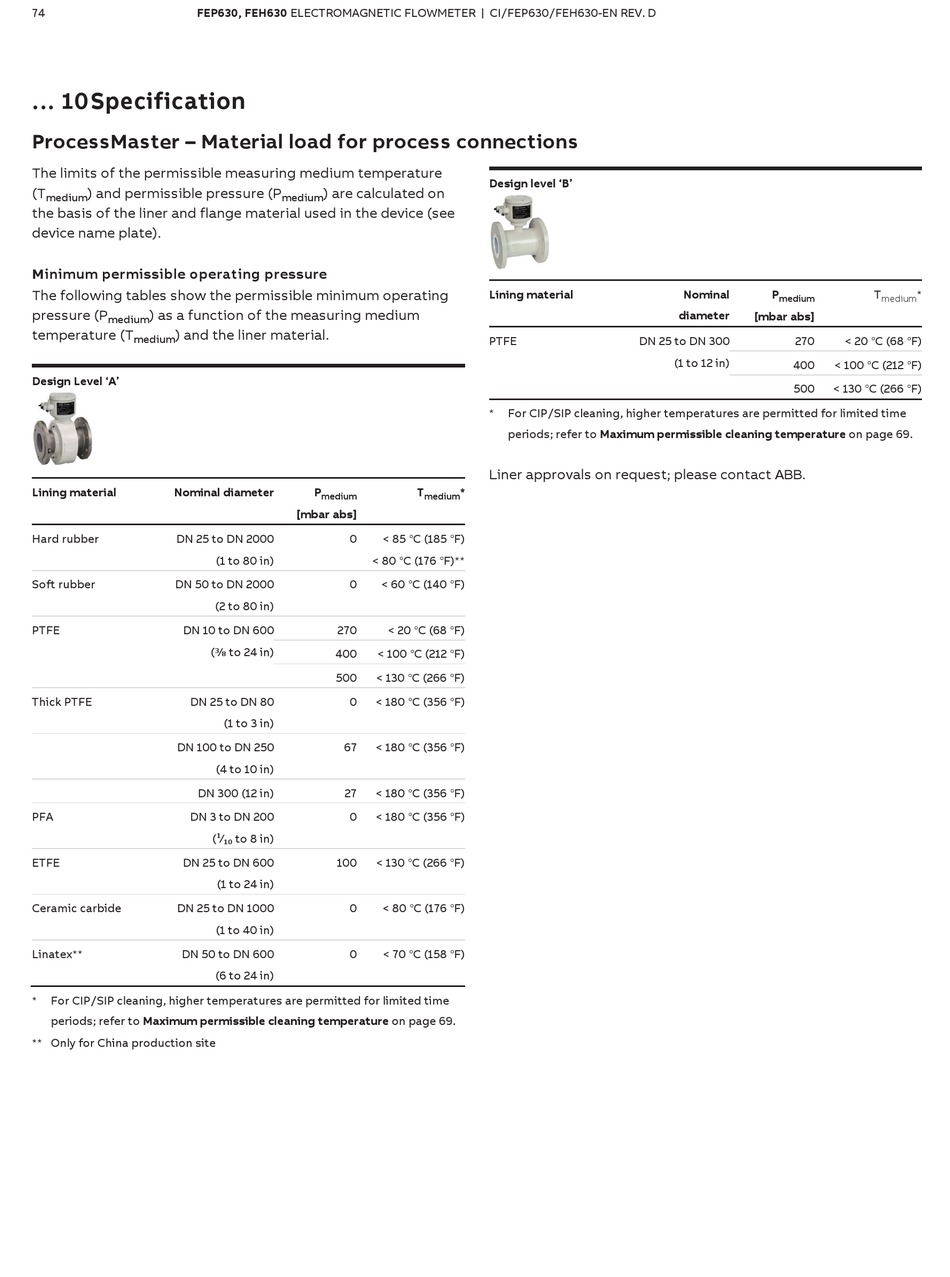

74 FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D
... 10 Specification
ProcessMaster – Material load for process connections
The limits of the permissible measuring medium temperature
(T ) and permissible pressure (P
medium
the basis of the liner and flange material used in the device (see
device name plate).
Minimum permissible operating pressure
The following tables show the permissible minimum operating
pressure (P ) as a function of the measuring medium
medium
temperature (T ) and the liner material.
medium
Design Level 'A'
Lining material Nominal diameter
Hard rubber DN 25 to DN 2000
Soft rubber DN 50 to DN 2000
PTFE DN 10 to DN 600
(
Thick PTFE DN 25 to DN 80
DN 100 to DN 250
DN 300 (12 in)
PFA DN 3 to DN 200
ETFE DN 25 to DN 600
Ceramic carbide DN 25 to DN 1000
Linatex** DN 50 to DN 600
* For CIP/SIP cleaning, higher temperatures are permitted for limited time
periods; refer to Maximum permissible cleaning temperature on page 69.
** Only for China production site
) are calculated on
medium
P
medium
[mbar abs]
0 < 85 °C (185 °F)
(1 to 80 in) < 80 °C (176 °F)**
0 < 60 °C (140 °F)
(2 to 80 in)
270 < 20 °C (68 °F)
to 24 in)
400 < 100 °C (212 °F)
500 < 130 °C (266 °F)
0 < 180 °C (356 °F)
(1 to 3 in)
67 < 180 °C (356 °F)
(4 to 10 in)
27 < 180 °C (356 °F)
0 < 180 °C (356 °F)
(¹ to 8 in)
100 < 130 °C (266 °F)
(1 to 24 in)
0 < 80 °C (176 °F)
(1 to 40 in)
0 < 70 °C (158 °F)
(6 to 24 in)
Design level 'B'
Lining material
PTFE
* For CIP/SIP cleaning, higher temperatures are permitted for limited time
periods; refer to Maximum permissible cleaning temperature on page 69.
Liner approvals on request; please contact ABB.
T *
medium
Nominal P
medium
diameter
[mbar abs]
DN 25 to DN 300 270
(1 to 12 in)
400
500
T *
medium
< 20 °C (68 °F)
< 100 °C (212 °F)
< 130 °C (266 °F)
