38 FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D
... 5 Electrical connections
... Pin assignment

Connection to integral mount design

100 ... 240 V AC
24 V DC
HART
Iout 1+2
DI + DO
PA
100 ... 240 V AC
24 V DC
HART
Iout 1+2
DI + DO
PA
1 Terminals for power supply
2 Cover for power supply terminals
3 Terminals for inputs and outputs

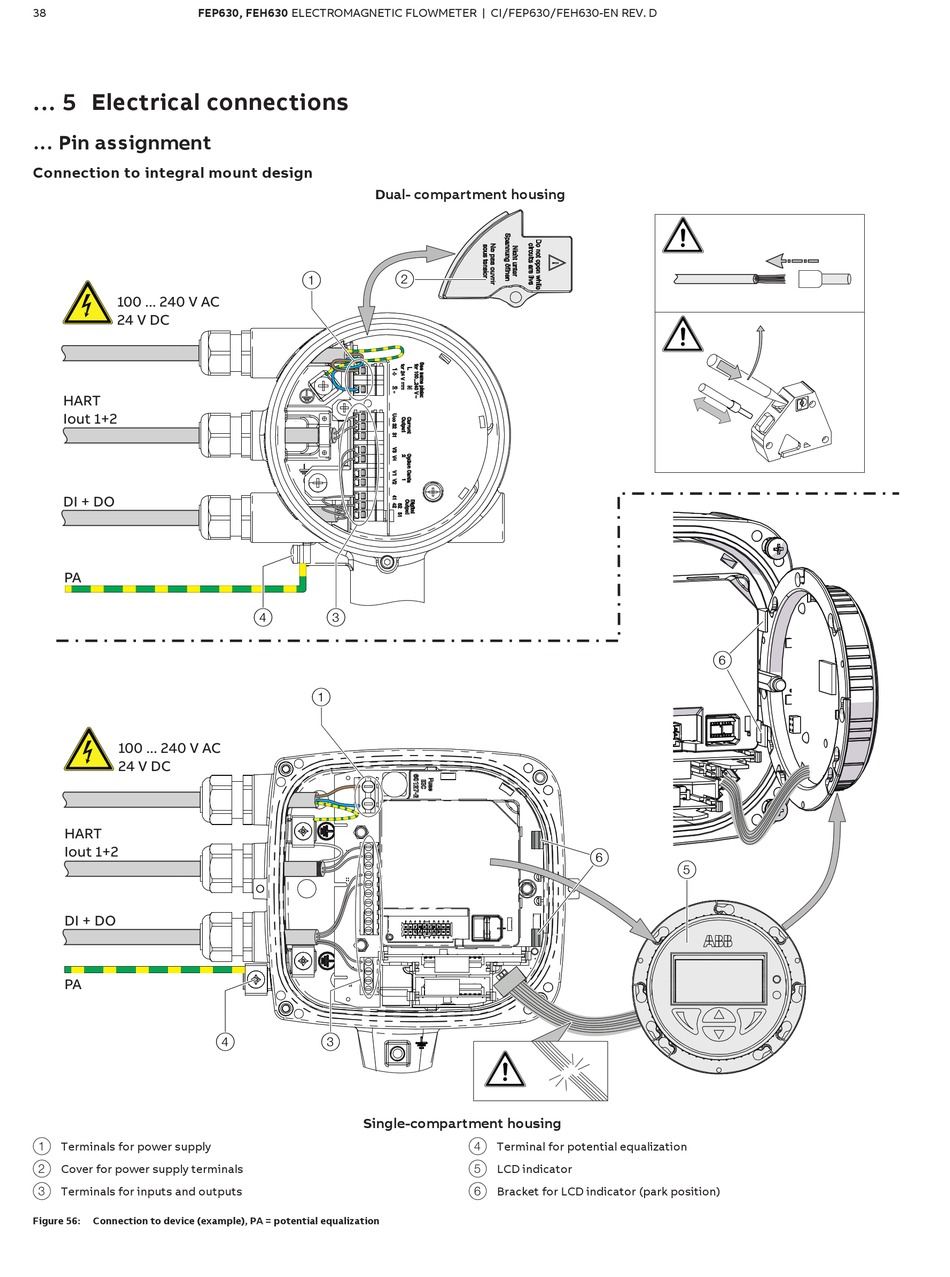

Figure 56: Connection to device (example), PA = potential equalization
Change from one to two columns
Dual- compartment housing
2
1
4 3
1
4 3
Single-compartment housing
6
4 Terminal for potential equalization
5 LCD indicator
6 Bracket for LCD indicator (park position)
6
5
G11618-01
