ABB ProcessMaster FEP630 Manual page 21

Electromagnetic flowmeter

Hide thumbs Also See for ProcessMaster FEP630:

Table of Contents

FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D

1 Cover

2 LCD indicator

3 Frontend board (FEB, with integral mount design only)

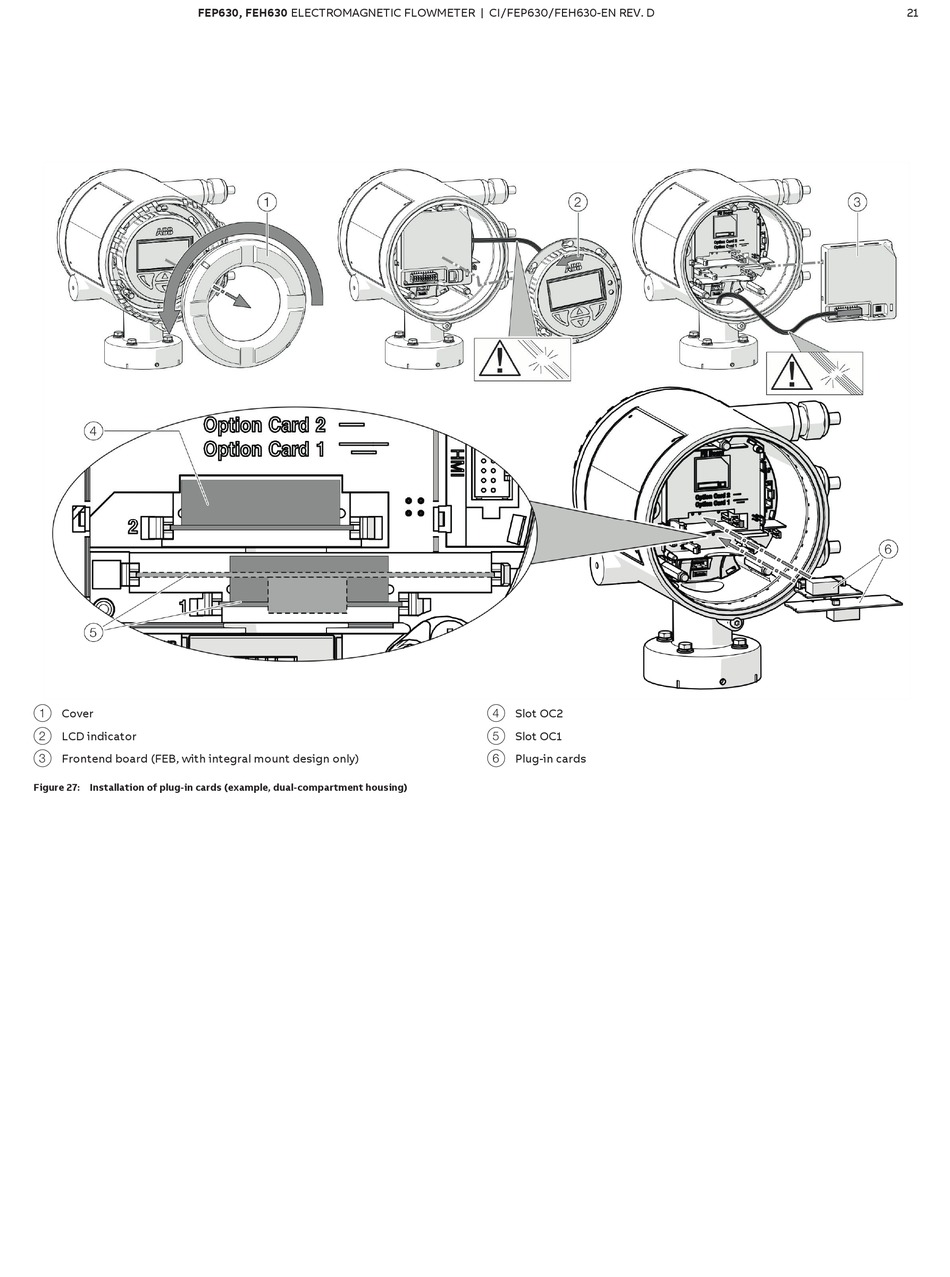

Figure 27: Installation of plug-in cards (example, dual-compartment housing)

4 Slot OC2

5 Slot OC1

6 Plug-in cards
