Figure 27. Typical Ethernet straight-through cable diagram for 1000Base-T
Analog FXS
CAUTION
Applicable to SmartNode devices equipped with FXS ports. The FXS ports are connected to analog terminals
(phones, fax machines, answering machines, etc.) via cables terminated with RJ-11 connectors (see section
"FXS port"
on page 62 for details on port pin-outs). For the RJ21 connectors, see the pin-outs in section "RJ21
Models" on page 67.
Analog FXS
The Interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to volt-
age, current, anticipated temperature, flammability, and
mechanical serviceability.

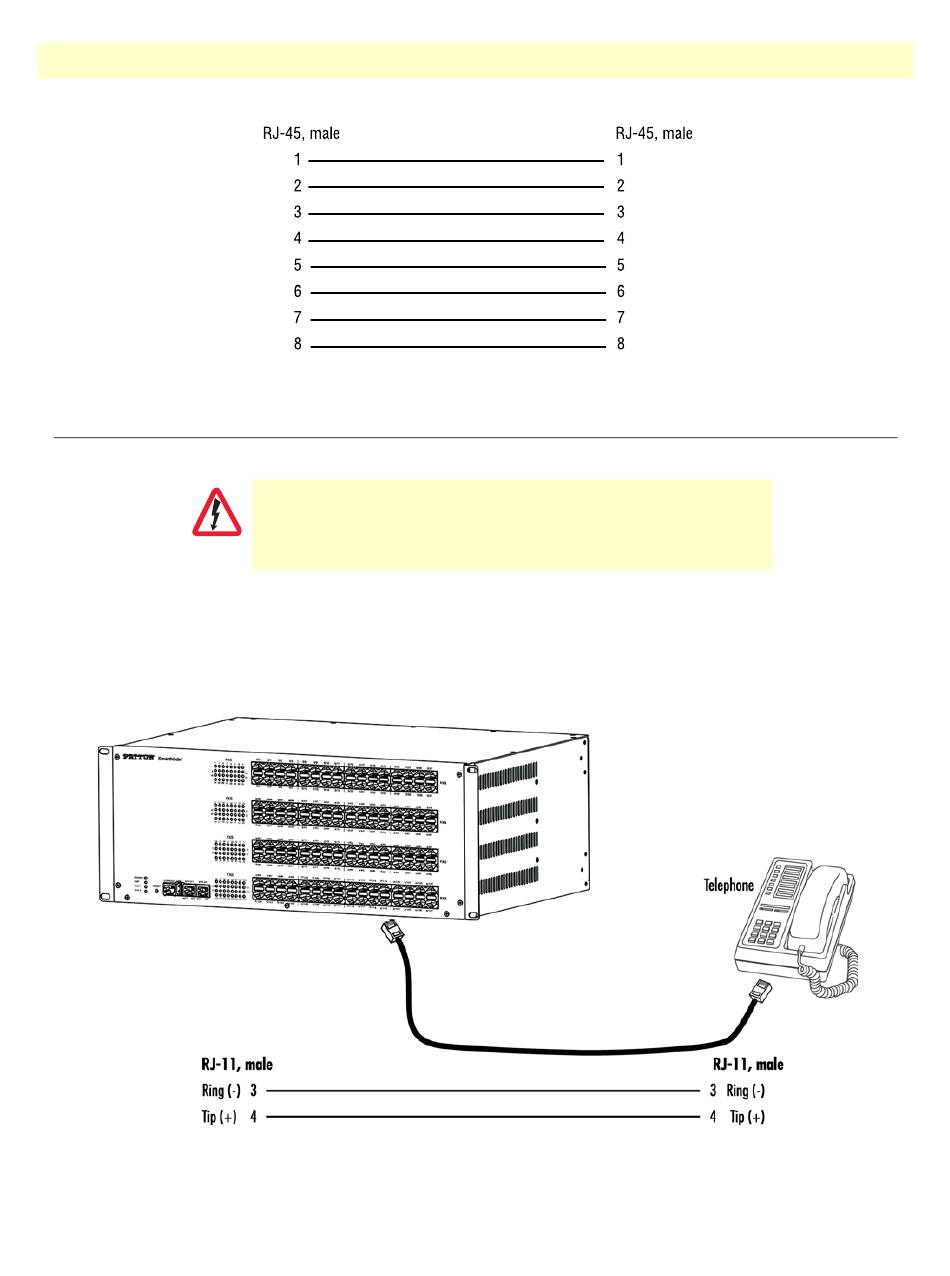

Figure 28. Connecting an FXS device
C • Cabling
64
