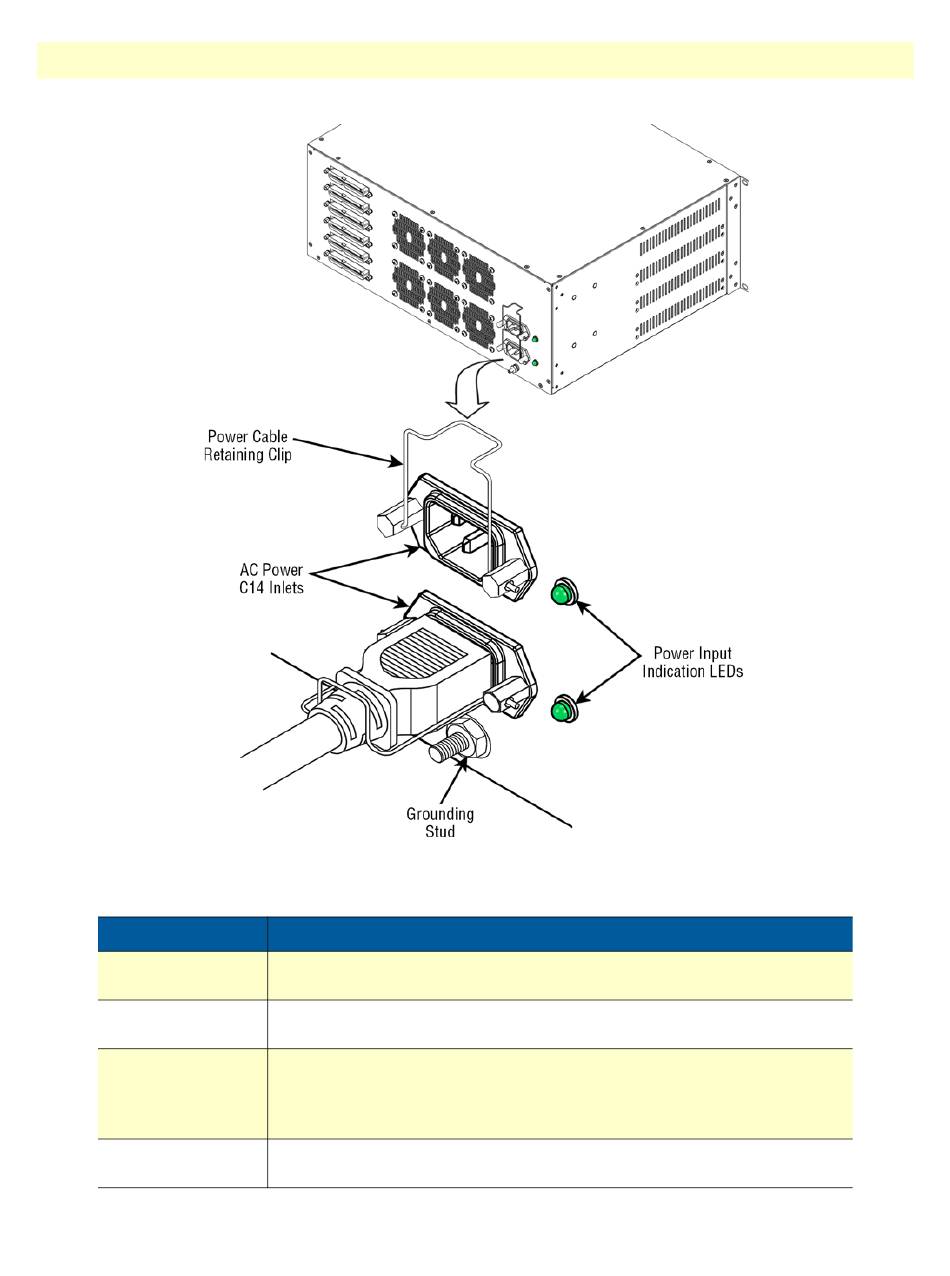

Figure 12. Rear panel AC power C14 inlets, LEDs, and grounding stud
Table 2. Rear panel AC power C14 inlets, LEDs, and grounding stud descriptions
Ports
Power Cable
Retaining Clips
AC Power C14
Inlets
Power Input
Indication LEDs
Chassis Ground-
ing Stud
Rear Panel Power Inlets or Terminal Blocks, LEDs, and Grounding Stud
Helps prevent power cables from being disconnected by accidentally
pulling on them.
Electricity supply inlets, 110–230 VAC. Second power port is for power
redundancy purposes.
One green LED per power source:
•
On when power is present
•
Off when no power is applied or if a power supply is defective
Used to secure the device connecting it to Earth Ground.
