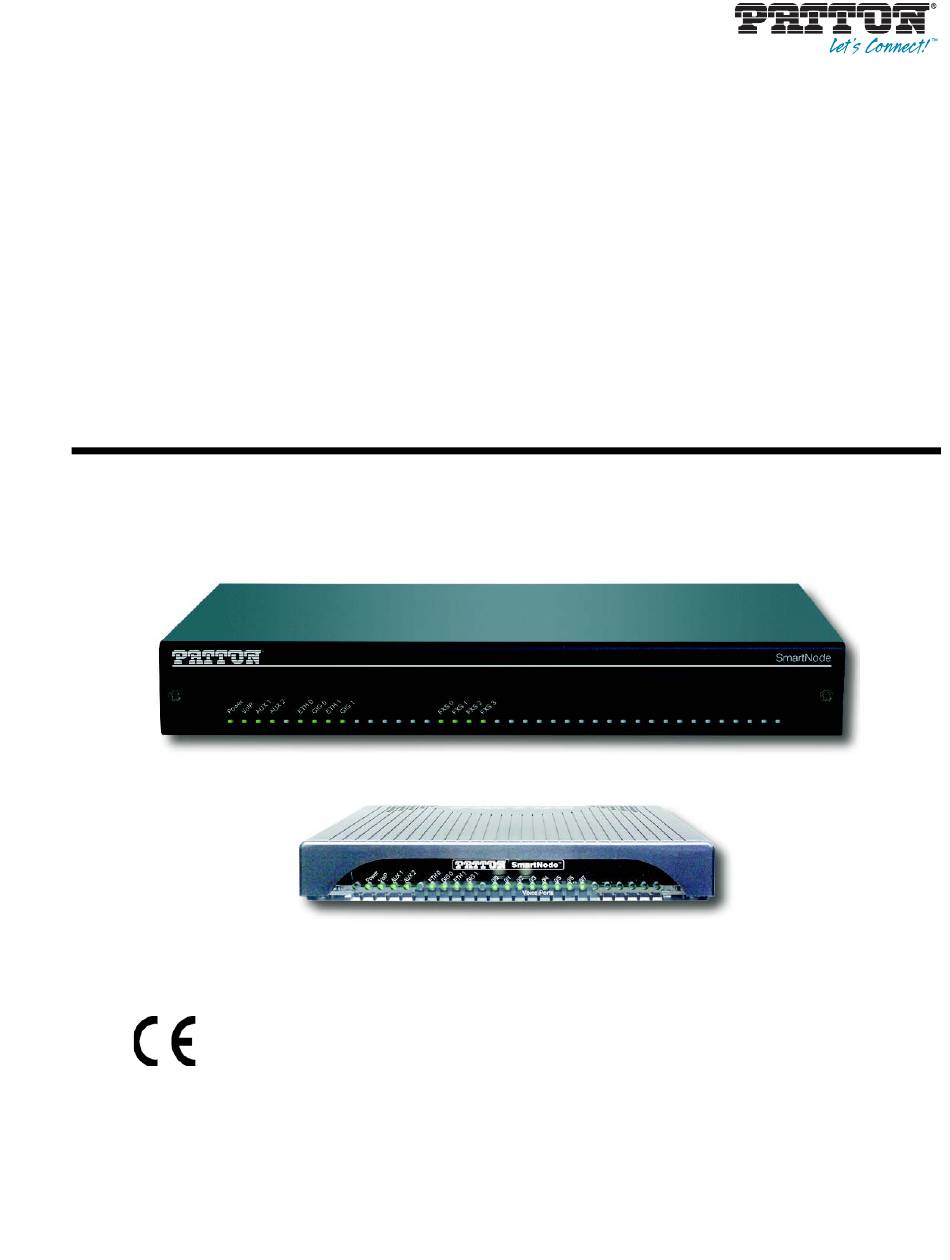

SmartNode 5540 and 4140 Series
Enterprise Session Border
Controller, Integrated Access
Device, and VoIP Gateway
User Manual
This is a Class A device and is not intended for use in a residential environment.
REGULATORY MODEL NUMBER: 13269D4-001
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
WWW:
www.patton.com
Part Number: 07MDSN5540-SN4140-UM Rev. E
Revised: June 13, 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patton SmartNode 5540 Series
Summary of Contents for Patton SmartNode 5540 Series
- Page 1 This is a Class A device and is not intended for use in a residential environment. REGULATORY MODEL NUMBER: 13269D4-001 Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com Part Number: 07MDSN5540-SN4140-UM Rev. E Revised: June 13, 2019...
- Page 2 All other trademarks presented in this document are the property of their respective owners. Copyright © 2016–2019, Patton Electronics Company. All rights reserved. The information in this document is subject to change without notice. Patton Elec- tronics assumes no liability for errors that may appear in this document. Warranty Information The software described in this document is furnished under a license and may be used or copied only in accordance with the terms of such license.
-
Page 3: Summary Table Of Contents
........................42 Contacting Patton for Assistance Compliance Information . -
Page 4: Table Of Contents
............................13 SmartNode devices overview ..........................14 SmartNode 5540 Series eSBC/IAD .........................15 Port descriptions ............................16... - Page 5 ........................42 Contacting Patton for Assistance Introduction ................................43 Contact information..............................43 Contacting Patton Technical Services for Free Support ...................43 Warranty Service and Returned Merchandise Authorizations (RMAs)..............43 Warranty coverage ............................43 Out-of-warranty service ..........................44...
- Page 6 SmartNode 5540 & 4140 Series User Manual Voice Routing—session router ..........................49 IP Services ................................50 WAN Interface (if applicable)..........................51 Management .................................52 System ...................................52 Physical .................................53 ................................54 Cabling Introduction ................................55...
-
Page 7: List Of Figures
List of Figures SmartNode 5540 and 4140 ............. . . 14 Examples of SN5540 Series rear panels . -
Page 8: List Of Tables
List of Tables General conventions ..............12 Rear panel ports . -
Page 9: About This Guide
4, starting on page 35, leads you through the steps to set up a new SmartNode device and down- load a configuration Chapter 5, starting on page 42, contains information on contacting Patton technical support for assistance • • Appendix A, starting on page 45, provides compliance info for the SmartNode devices •... -
Page 10: Safety When Working With Electricity
CAUTION Safety when working with electricity The SmartNode device contains no user serviceable parts, and is not be opened by the user. The equipment shall be returned to Patton Electronics for repairs or repaired by qualified service personnel. WARNING Mains Voltage: In systems without a power switch, line voltages are present in the power supply when the power cord is connected. -
Page 11: Deutsch
SmartNode 5540 & 4140 Series User Manual Do not work on the system or connect or disconnect cables during periods of lightning activity. WARNING Deutsch Warnhinweise: Dieses Gerät ist NICHT für den Anschluss an das Telefonnetz (PSTN) bestimmt und auch NICHT dafür zugelassen. Es ist nur für den Anschluss an Endgeräte beim Kunden vorgesehen. -
Page 12: General Observations
SmartNode 5540 & 4140 Series User Manual General observations Do not stack multiple SmartNode devices directly on top of one another, and do not place items on top of the device. If you will be installing equipment above the SmartNode device, leave at least 2 inches (5 cm) of clearance between the devices. -
Page 13: General Information
Chapter 1 General information Chapter contents SmartNode devices overview ..........................14 SmartNode 5540 Series eSBC/IAD .........................15 Port descriptions ............................16 Front panel LED definitions ........................17 SmartNode SN4140 Series VoIP Gateway ......................18 Port descriptions ............................20 Front panel LED definitions ........................21... -
Page 14: Smartnode Devices Overview
While the IAD models support on top of the eSBC WAN access termination (VDSL2, ADSL2/2+, SHDSL, Fiber SFP) • Section “SmartNode 5540 Series eSBC/IAD” on page 15 provides more information on the device. Section “SmartNode SN4140 Series VoIP Gateway” on page 18 describes the SmartNode 4140 Series. -
Page 15: Smartnode 5540 Series Esbc/Iad
SmartNode 5540 & 4140 Series User Manual 1 • General information SmartNode 5540 Series eSBC/IAD The SmartNode 5540 eSBC/IAD Series are compact Enterprise Session Border Controllers that support 2 up to 8 voice calls (FXS/FXO–VoIP and versa) depending on the model (see... -
Page 16: Port Descriptions
4G stands for 4-pair G.SHDSL.bis For a complete listing of available models, refer to the SmartNode VoIP page Note https://www.patton.com/products/voip-comparison.asp Port descriptions The SmartNode 5540 Series rear panel ports are described in table Table 2. Rear panel ports Port Description... -
Page 17: Front Panel Led Definitions
SmartNode 5540 & 4140 Series User Manual 1 • General information Figure 3. SmartNode SN5540 Series front panels Front panel LED definitions Figure 3 shows SmartNode SN5540 LEDs; the LED definitions are listed in table 3 on page If an error occurs, all LEDs will flash for more than 5 seconds before the Note device reboots. -
Page 18: Smartnode Sn4140 Series Voip Gateway
SmartNode device. • Off indicates the unit is not configured or registered, or has no active directly routed VoIP connection. AUX 1 On when connected to Patton Cloud AUX 2 Auxiliary LED for future use. Voice Ports •... -
Page 19: Examples Of Sn4140 Series Rear Panels
JO stands for FXO ports • • EUI stands for external universal input power supply 2ETH stands 2 Ethernet ports on gateway models • For a complete listing of available models, refer to the SmartNode VoIP page Note at https://www.patton.com/products/voip-comparison.asp. SmartNode devices overview... -
Page 20: Port Descriptions
SmartNode 5540 & 4140 Series User Manual 1 • General information Port descriptions The SmartNode 4140 Series rear panel ports are described in table Table 4. Rear panel ports Port Description Ethernet RJ-45 connectors that connect the SmartNode device to an Ethernet ETH 0/0 &... -
Page 21: Front Panel Led Definitions
SmartNode device. • Off indicates the unit is not configured or registered, or has no active directly routed VoIP connection. AUX 1 On when connected to Patton Cloud AUX 2 Auxiliary LED for future use. SmartNode devices overview... - Page 22 SmartNode 5540 & 4140 Series User Manual 1 • General information Table 5. SmartNode 4140 LED Definitions (Continued) Description Voice Ports • When lit, indicates FXS port is enabled. Flashes when there are ongoing or ringing FXS 0–FXS 7 calls. •...
-
Page 23: Applications Overview
Chapter 2 Applications overview Chapter contents Introduction ................................24 Application for SmartNode 5540 eSBC.........................24 Application for SmartNode 4140 VoIP Gateway....................25... -
Page 24: Introduction
2 • Applications overview Introduction Patton’s SmartNode eSBCs/IADs and VoIP Gateways deliver the features you need for advanced multi-service voice and data network applications. They combine high quality voice-over-IP with powerful quality of service routing, assessment and monitoring functions to build professional, secure and reliable VoIP and data net- works. -
Page 25: Application For Smartnode 4140 Voip Gateway
SmartNode 5540 & 4140 Series User Manual 2 • Applications overview Figure 6. SN5540 application Application for SmartNode 4140 VoIP Gateway The SmartNode 4140 VoIP Gateway, equipped with 1 Ethernet port, acts as a VoIP Gateway connecting POTS equipment which cannot easily be replaced by an IP-ready device (such as alarm systems, fax machines, modems, PoS terminals, etc.) into an All-IP environment. -
Page 26: Sn4140 Application
SmartNode 5540 & 4140 Series User Manual 2 • Applications overview Additional functions can be unlocked by loading software licenses (such as Note an eSBC license bundle—see the product page under Ordering for more details). Figure 7. SN4140 application Application for SmartNode 4140 VoIP Gateway... -
Page 27: Smartnode Installation
Chapter 3 SmartNode Installation Chapter contents Planning the Installation............................28 Site log ................................28 Network information ............................28 Network Diagram ............................28 IP related information .............................28 Software tools ..............................29 Power source ..............................29 Installing the SmartNode device ..........................29 Placing the SmartNode device .........................29 Connecting cables ............................30 Installation cable requirements for the WAN interface (SN5540 /2G, /4G, /AVA, /AVB /F Models) ..30... -
Page 28: Planning The Installation
29 to install the device. Site log Patton recommends that you maintain a site log to record all actions relevant to the system, if you do not already keep such a log. Site log entries should include information such as listed in table Table 6. -
Page 29: Software Tools
If you suspect that your AC power is not reliable, for example if room lights flicker often or there is machinery with large motors nearby, have a qualified professional test the power. Patton recommends that you include an uninterruptible power supply (UPS) in the installation to ensure that VoIP service is not impaired if the power fails. -
Page 30: Connecting Cables
“G.SHDSL EFM & ATM port (/2G and /4G mod- els)” on page 60. For details on the VDSL and ADSL port pinout, refer to section “FXO port” on page 60. For details about the tested and compatible SFP modules see http://www.patton.com/products/sfpmod- ules.asp. Installing the SmartNode device... -
Page 31: Installing A Grounding Wire On The Smartnode Device's Ground Lug
SmartNode 5540 & 4140 Series User Manual 3 • SmartNode Installation Figure 8. Rear view showing location of Ethernet, FXS, FXO and WAN connectors (SmartNode 5541 shown)) Installing a grounding wire on the SmartNode device’s ground lug 1. Route the grounding wire from a building ground connection to the SmartNode device. According to UL60950/IEC62368, a connection to earth ground—using the ground lug at the rear of the units (see figure... -
Page 32: Installing An Interface Cable On The Smartnode Device's Fxs And Fxo Interface Ports
SmartNode 5540 & 4140 Series User Manual 3 • SmartNode Installation Installing an interface cable on the SmartNode device’s FXS and FXO interface ports The SmartNode comes with at least two FXS analog ports (see figure 8 on page 31) located on the back of the device. -
Page 33: Connecting The 10/100/1000Base-T Ethernet Lan And Wan Cables
1. Verify that the AC power supply included with your device is compatible with local standards. If it is not, refer to Chapter 5, “Contacting Patton for Assistance” on page 42 to find out how to replace it with a com- patible power supply. -
Page 34: Power Led
SmartNode 5540 & 4140 Series User Manual 3 • SmartNode Installation Figure 11. Power LED Congratulations, you have finished installing the SmartNode device! Now go to Chapter 4, “Initial Configura- tion” on page 35. Installing the SmartNode device... -
Page 35: Initial
Chapter 4 Initial Configuration Chapter contents Introduction ................................36 Connecting the SN5540 & SN4140/2ETH to your laptop PC................36 Configure the desired IP address ........................36 Factory-default IP Settings ........................36 Login ................................37 Changing the WAN IP address .........................37 Connecting the SmartNode device to the network ..................38 Connecting the SN4140 to a laptop PC ........................38... -
Page 36: Configuration
SmartNode 5540 & 4140 Series User Manual 4 • Initial Configuration Introduction This chapter leads you through the basic steps to set up a new SmartNode device and to download a configuration. If you haven’t already installed the SmartNode device, refer to Chapter 3, Note "SmartNode Installation"... -
Page 37: Login
SmartNode 5540 & 4140 Series User Manual 4 • Initial Configuration DHCP server, the WAN interface uses DHCP client to automatically assign the IP address and network mask. Table 8. Factory Default IP Address and Network Mask Configuration IP Address Network Mask WAN Interface Ethernet 0 (ETH 0/0) DHCP... -
Page 38: Connecting The Smartnode Device To The Network
SmartNode 5540 & 4140 Series User Manual 4 • Initial Configuration The modified configuration is applied immediately. It is not necessary to Note reboot the device when changing any configuration parameter. 172.16.1.99(if-ip) [WAN]#copy running-config startup-config 172.16.1.99(if-ip) [WAN] The SmartNode can now be connected to your network. Connecting the SmartNode device to the network In general, the SmartNode will connect to the network via the WAN (ETH 0/0) port. -
Page 39: Connecting The Smartnode To A Laptop Pc
SmartNode 5540 & 4140 Series User Manual 4 • Initial Configuration The SmartNode device has a fixed IP and a DHCP client setup to simplify Note configuration. The Ethernet port is equipped with Auto-MDX so you can use a straight-through cable for host or hub/switch connection. There are two options for configuring the SmartNode device 1. -
Page 40: Configure The Desired Ip Address
SmartNode 5540 & 4140 Series User Manual 4 • Initial Configuration You can check the connection to the SmartNode by executing the ping command from the PC command win- dow as follows: ping 192.168.1.1 Configure the Desired IP Address Factory-default IP Settings 8. -
Page 41: Loading The Configuration (Optional)
Loading the Configuration (optional) WebWizard Community provides a collection of Wizards that help to reduce the setup time of a Patton device. Simply download the appropriate Wizard to your device, execute it locally, and you are ready to do phone calls after the SmartNode has rebooted. -
Page 42: Contacting Patton For Assistance
Chapter 5 Contacting Patton for Assistance Chapter contents Introduction ................................43 Contact information..............................43 Contacting Patton Technical Services for Free Support ...................43 Warranty Service and Returned Merchandise Authorizations (RMAs)..............43 Warranty coverage ............................43 Out-of-warranty service ..........................44 Returns for credit ............................44 Return for credit policy ..........................44... -
Page 43: Introduction
(RMA). Contact information Patton Electronics offers a wide array of free technical services. If you have questions about any of our other products we recommend you begin your search for answers by using our technical knowledge base. Here, we have gathered together many of the more commonly asked questions and compiled them into a searchable database to help you quickly solve your problems. -
Page 44: Out-Of-Warranty Service
RMA#: xxxx 7622 Rickenbacker Dr. Gaithersburg, MD 20879-4773 USA Patton will ship the equipment back to you in the same manner you ship it to us. Patton will pay the return shipping costs. Warranty Service and Returned Merchandise Authorizations (RMAs) -
Page 45: A Compliance Information
Appendix A Compliance Information Chapter contents Compliance ................................46 ................................46 Safety ................................46 Radio and TV Interference (FCC Part 15) ......................46 EC Declaration of Conformity ..........................46 Authorized European Representative ........................46... -
Page 46: Compliance
SmartNode 5540 & 4140 Series User Manual A • Compliance Information Compliance FCC Part 15, Class A • EN55032, Class A • EN55024 • Safety UL 62368-1/CSA C22.2 N0. 62368-1 • • IEC/62368-1 AS/NZS 62368-1 • Radio and TV Interference (FCC Part 15) This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in strict accordance with the manufacturer's instructions—may cause interference to radio and television recep- tion. -
Page 47: Specifications
Appendix B Specifications Chapter contents DSP..................................48 Voice Connectivity ..............................48 Data Connectivity ..............................48 Voice Processing (signaling dependent) .........................48 Fax and modem support............................49 Voice Signaling..............................49 Voice Routing—session router ..........................49 IP Services ................................50 WAN Interface (if applicable)..........................51 Management .................................52 System ...................................52 Physical .................................53... -
Page 48: Dsp
SmartNode 5540 & 4140 Series User Manual B • Specifications Refer to the software feature matrix for the most up-to-date specifications. Note One 8-channel DSP. All 2V and 4V models are restricted by software to not allow more than 4 calls. Upgrade- able by license to max. -
Page 49: Fax And Modem Support
SmartNode 5540 & 4140 Series User Manual B • Specifications Silence suppression and comfort noise Adaptive and configurable dejitter buffer Configurable tones (dial, ringing, busy, etc.) Configurable transmit packet length RTP/RTCP (RFC 1889) SRTP (RFC 3711) Fax and modem support Automatic fax and modem detection Codec fallback for modem-bypass T.38 Fax-Relay (Gr. -
Page 50: Ip Services
SmartNode 5540 & 4140 Series User Manual B • Specifications Regular expression number manipulation functions: • Replace numbers Add/remove digits • Pattern matching and replacement • IP Services IPv4 & IPv6 router (Dual Stack) Routing functionalities are optional on SN4140: Programmable static routes and policy-routing •... -
Page 51: Wan Interface (If Applicable)
SmartNode 5540 & 4140 Series User Manual B • Specifications WAN Interface (if applicable) For information on configuring the WAN interface, see Chapter 4, “Initial Note Configuration” on page 35. Table 10. WAN Interface Specifications Factor Specs VDSL-ADSL • ANSI T1.413 Issue 2 (/AVA and /AVB models) •... -
Page 52: Management
(For a list of tested SFP modules, please refer to http:/ /www.patton.com/products/sfpmodules.asp) Management Patton Cloud Management Web-based GUI; Trinity WEB Wizard Industry standard CLI with remote Telnet and SSH access, fully documented HTTP web management and firmware loading TFTP configuration & firmware loading HTTPS configuration &... -
Page 53: Physical
SmartNode 5540 & 4140 Series User Manual B • Specifications Physical Dimensions: Plastic enclosure: 7.3W x 1.6H x 6.1D in. (18.5W x 4.1H x 15.5D cm) • Metal enclosure: 12.1W x 1.5H x 6.1D in. (30.7W x 3.8H x 15.5D cm) •... -
Page 54: Cabling
Appendix C Cabling Chapter contents Introduction ................................55 Ethernet ................................55 Analog FXS ................................56 Analog FXO ................................57... -
Page 55: Introduction
SmartNode 5540 & 4140 Series User Manual C • Cabling Introduction This section provides information on the cables used to connect the SmartNode device to the existing network infrastructure and to third party products. Ethernet Ethernet devices (10/100/1000 Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. All Ethernet ports on the SmartNode device are Auto-MDX. -
Page 56: Analog Fxs
SmartNode 5540 & 4140 Series User Manual C • Cabling Analog FXS The Interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and CAUTION mechanical serviceability. -
Page 57: Analog Fxo
SmartNode 5540 & 4140 Series User Manual C • Cabling Analog FXO The Interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and CAUTION mechanical serviceability. - Page 58 Appendix D Port pin-outs Chapter contents Introduction ................................59 Ethernet ................................59 port................................59 FXO port ................................60 VDSL-ADSL Port (/A and /AVA & /AVB models only) ..................60 G.SHDSL EFM & ATM port (/2G and /4G models)...................60 Fiber Ports (/F models only) ..........................61...
-
Page 59: D Port Pin-Outs
SmartNode 5540 & 4140 Series User Manual D • Port pin-outs Introduction This section provides pin-out information for the ports of the SmartNode. Ethernet Table 11. 10/100 Base-T RJ-45 socket Signal Pins not listed are not used. Note Table 12. 1000Base-T RJ-45 Socket Signal TRD0+ TRD0-... -
Page 60: Fxo Port
SmartNode 5540 & 4140 Series User Manual D • Port pin-outs Figure 20. RJ-11 pinout diagram FXO port The FXO ports use an RJ-11 connector with 6 positions. The middle two positions 3 and 4 are used according table 13 on page 59. -
Page 61: Fiber Ports (/F Models Only)
RJ11-to-RJ45 adapter must be used. Figure 21. RJ11 and RJ45 pin comparison Fiber Ports (/F models only) For tested and approved modules, please refer to the list of SFP’s Patton has tested at http://www.patton.com/ products/sfpmodules.asp Fiber Ports (/F models only) -
Page 62: E Smartnode Device Factory Configuration
Appendix E SmartNode Device Factory Configuration Chapter contents Introduction ................................63... -
Page 63: Introduction
SmartNode 5540 & 4140 Series User Manual E • SmartNode Device Factory Configuration Introduction Factory configuration settings for the SmartNode device can be obtained with the following command through the CLI; login: admin password: <Enter> 192.168.1.1>show config:shipping-config See Chapter 4, "Initial Configuration"... -
Page 64: F Reset Button Functions
Appendix F Reset Button Functions Chapter contents Introduction ................................65 Resetting the SmartNode device when it is operating and the Power LED is lit .............66 Resetting the SmartNode device when it is initially powered off ................67 Very exceptional case—minimal config recovery .....................67... -
Page 65: Introduction
SmartNode 5540 & 4140 Series User Manual F • Reset Button Functions Introduction The Reset button (see figure 22 on page 65 for the SN4140 Reset button location, and figure 23 on page 66 for the SN5540 Reset button location) is used to do the following: •... -
Page 66: Resetting The Smartnode Device When It Is Operating And The Power Led Is Lit
SmartNode 5540 & 4140 Series User Manual F • Reset Button Functions Figure 23. SN5540 Reset button Resetting the SmartNode device when it is operating and the Power LED is lit The Reset button has the following behaviors depending on how many seconds (see figure 24) the button is pressed (see... -
Page 67: Resetting The Smartnode Device When It Is Initially Powered Off
67, the SmartNode device is still not operational, the following may remedy the problem by erasing the entire contents of flash memory (no exceptions). However it is recommended that in such a case the device be sent to Patton for analysis and repair. See section “Warranty Service and Returned Merchandise Authoriza- tions (RMAs)”... -
Page 68: Using The Reset Button To Switch To Erase Flash Memory
SmartNode 5540 & 4140 Series User Manual F • Reset Button Functions The following procedure is NOT standard and is NOT to be used to perform a factory reset. It should ONLY be used as a last resort for a minimal recovery of the device when it is in an unde- IMPORTANT “Resetting the Smart- fined state, and if the instructions in section... - Page 69 SmartNode 5540 & 4140 Series User Manual F • Reset Button Functions context ip ROUTER interface LAN ipaddress LAN 192.168.200.10/24 ipaddress DHCP dhcp port ethernet 0 0 bind interface ROUTER LAN no shutdown Resetting the SmartNode device when it is initially powered off...
-
Page 70: G End User License Agreement
Appendix G End User License Agreement Chapter contents End User License Agreement ..........................71 1. Definitions ..............................71 2. Title ................................71 3. Term ................................71 4. Grant of License ............................71 5. Warranty ..............................72 6. Termination ..............................72 7. Notices ...............................72 8. Other Licenses ............................72 9. -
Page 71: End User License Agreement
End User agrees to the following conditions: 1. Definitions “Effective Date” shall mean the earliest date of purchase or download of a product containing the Patton Electronics Company Program(s) or the Program(s) themselves. “Program(s)” shall mean all software, software documentation, source code, object code, or executable code. -
Page 72: Warranty
Program(s), even if Patton Electronics Company has been advised of the possi- bility of such damages. Because some states do not allow the exclusion or limitation of liability for consequen- tial or incidental damages, the above limitation may not apply to you. -
Page 73: Unenforceable Provisions
State of Maryland, USA for any dispute arising under or relating to this agreement and waives user’s right to institute legal proceedings in any other jurisdiction. Patton shall be entitled to institute legal proceedings in connection with any matter arising under this agreement in any juris- diction where User resides, does business, or has assets.
