Introduction

This section provides information on the cables used to connect the SmartNode to the existing network infra-
structure and to third party products.

Ethernet

Ethernet devices (10/100/1000 Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. All
Ethernet ports on the SN4740 Series are Auto-MDX. Use any straight or crossover cable to a host, hubs,
switches, PCs or other devices.
CAUTION

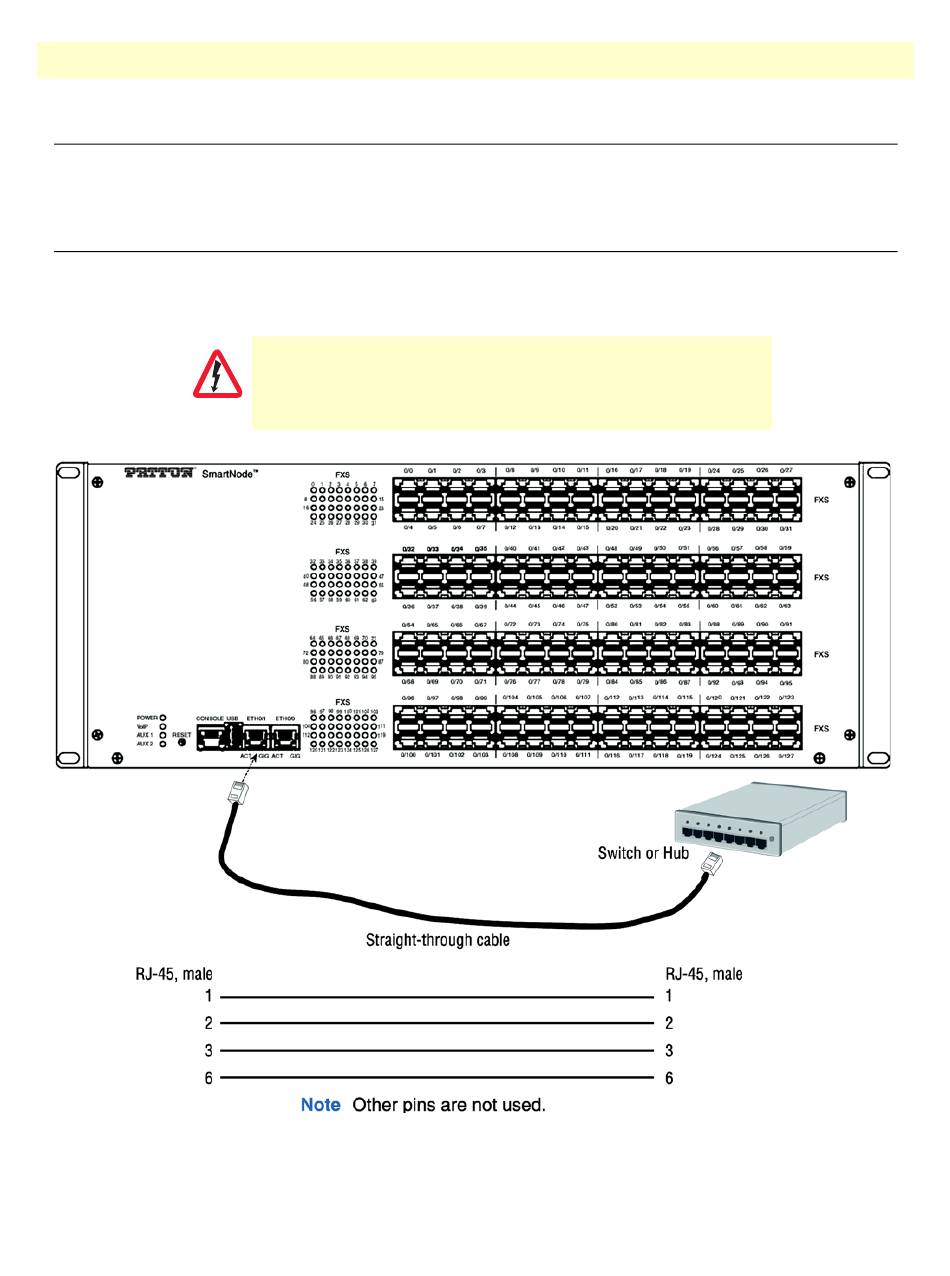

Figure 26. Typical Ethernet straight-through cable diagram for 10/100Base-T
Introduction
The interconnecting cables shall be acceptable for external use
an shall be rated for the proper application with respect to volt-
age, current, anticipated temperature, flammability, and
mechanical serviceability.
