You can check the connection with the ping command from the SmartNode to another host on the network.
172.16.1.99(if-ip)[WAN]#ping <IP Address of the host>
If the WAN address is not set to DHCP, to ping a device outside your local
Note
LAN you must first configure the default gateway. (For information on con-
figuring the default gateway, refer to section "Set IP addresses" in the Trinity
Software Configuration Guide.)
Connecting both ethernet ports to the same switch will only work if the
Note
switch has separate ARP tables for each connection.

Loading the Configuration (optional)

The WebWizard Community
device. Simply download the Wizard to your device, execute it locally, and you are ready to do phone calls after
the SmartNode has rebooted. Optionally, you may execute the Wizard that matches your application online
and import the generated .cfg config into the SmartNode. In addition to that the
configuration file templates that may fit to your application.
If your application is unique and not covered by any of Patton's configura-
Note
tion templates, you can manually configure the SmartNode instead of load-
ing a configuration file template. In that case, refer to the Trinity Command
Line Reference Guide for information on configuring the SmartNode device.
In this example we assume the TFTP server on the host with the IP address 172.16.1.11 and the configuration
named SN.cfg in the root directory of the TFTP server..
172.16.1.99(if-ip)[W
172.16.1.99(if-ip)[W

Loading the Configuration (optional)

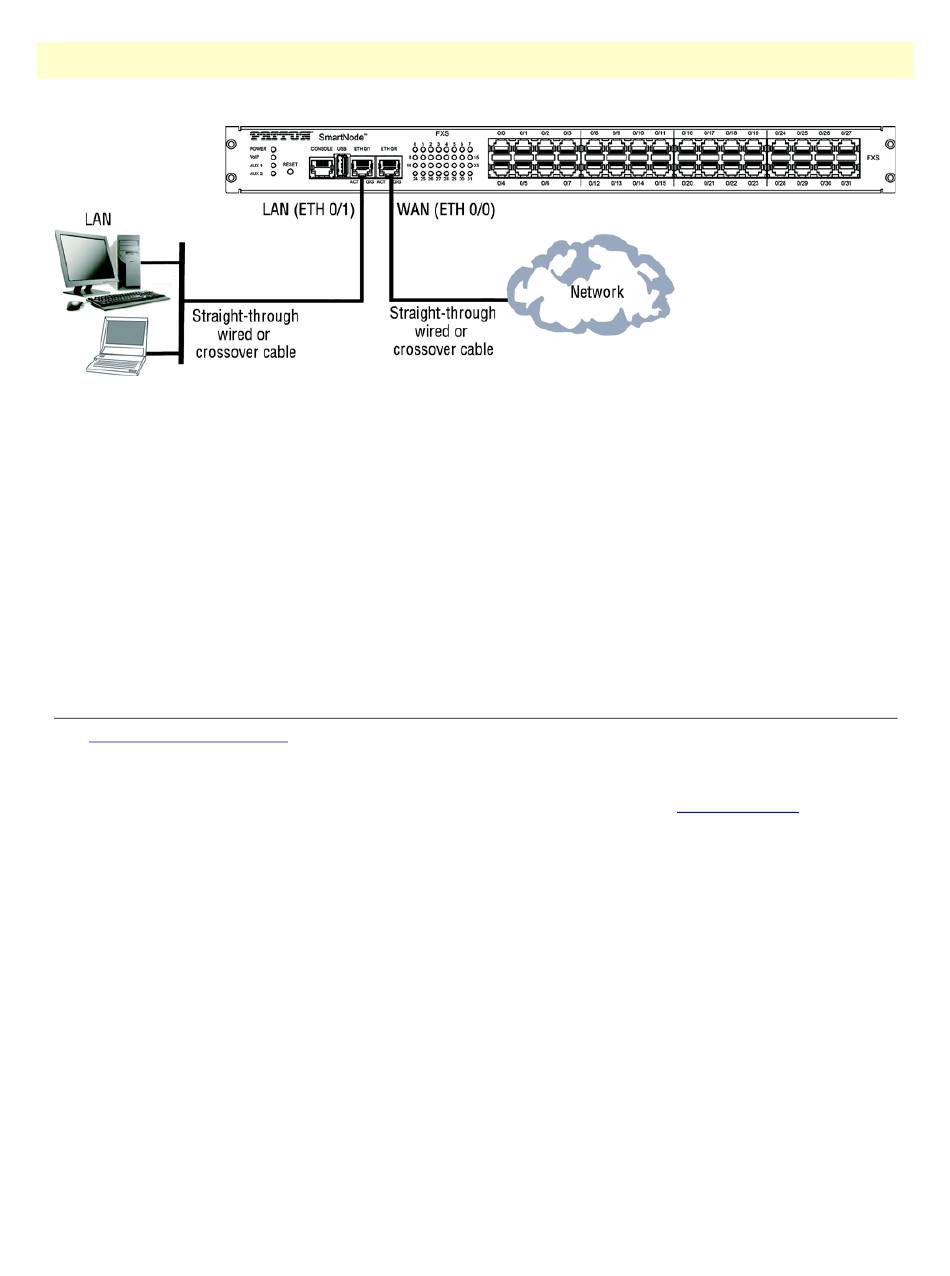

Figure 15. Connecting the SmartNode to the network
provides a collection of Wizards that help to reduce the setup time of a Patton
AN]#copy tftp://172.16.1.11/sn.cfg startup-config
AN]#
4 • Initial Configuration
