Console port
N/C means no internal electrical connection.
Note
Console Connection Settings:
19200bps
•
8 bits, no parity
•
1 stop bit
•
flow control off
•
Console port
(N/C)
(N/C)
(N/C)
DSR
Pins 1 & 3 are
connected together

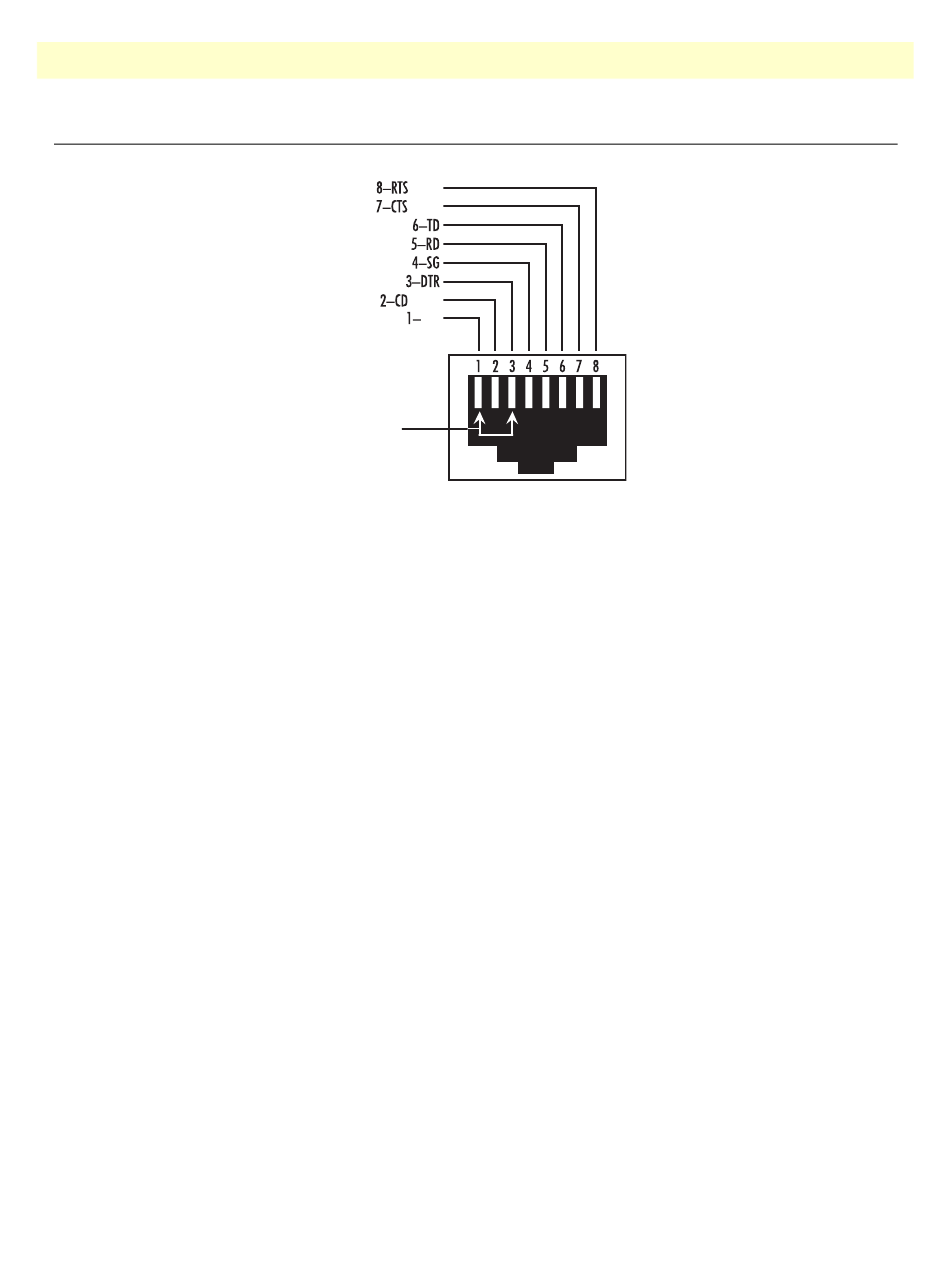

Figure 2. EIA-561 (RJ-45 8-pin) port
1 • Quick Start
17
