SmartNode 4740 Series (16–32 Ports) User Manual

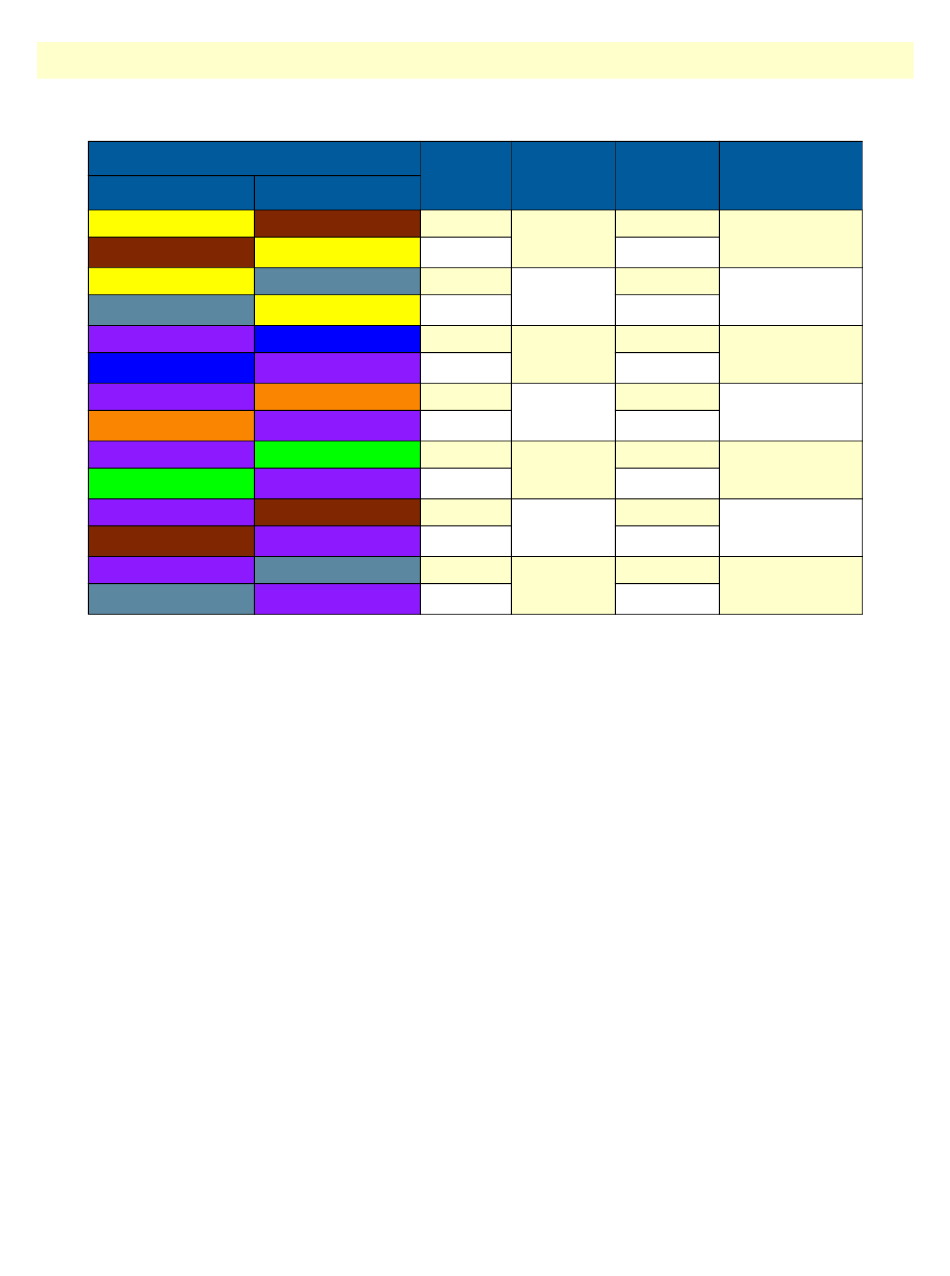

Table 10. Band Marked Color Code for 16 and 24 FXS port models (Continued)
Wire/Color Code
Main Color
Yellow
Brown
Yellow
Slate
Violet
Blue
Violet
Orange
Violet
Green
Violet
Brown
Violet
Slate
FXS port
Tip and
Ring
Stripe
Brown Tip 19
Yellow Ring 19
Slate Tip 20
Yellow Ring 20
Blue Tip 21
Violet Ring 21
Orange Tip 22
Violet Ring 22
Green Tip 23
Violet Ring 23
Brown Tip 24
Violet Ring 24
Slate Not Used
Violet Not Used
Pair 50 Pin
Number Positions
Pair 19 44
19
Pair 20 45
20
Pair 21 46
21
Pair 22 47
22
Pair 23 48
23
Pair 24 49
24
Pair 25 50
25
(Not Used)
D • Port pin-outs
SmartNode
Config-Port
Port 0/18
Port 0/19
Port 0/20
Port 0/21
Port 0/22
Port 0/23
