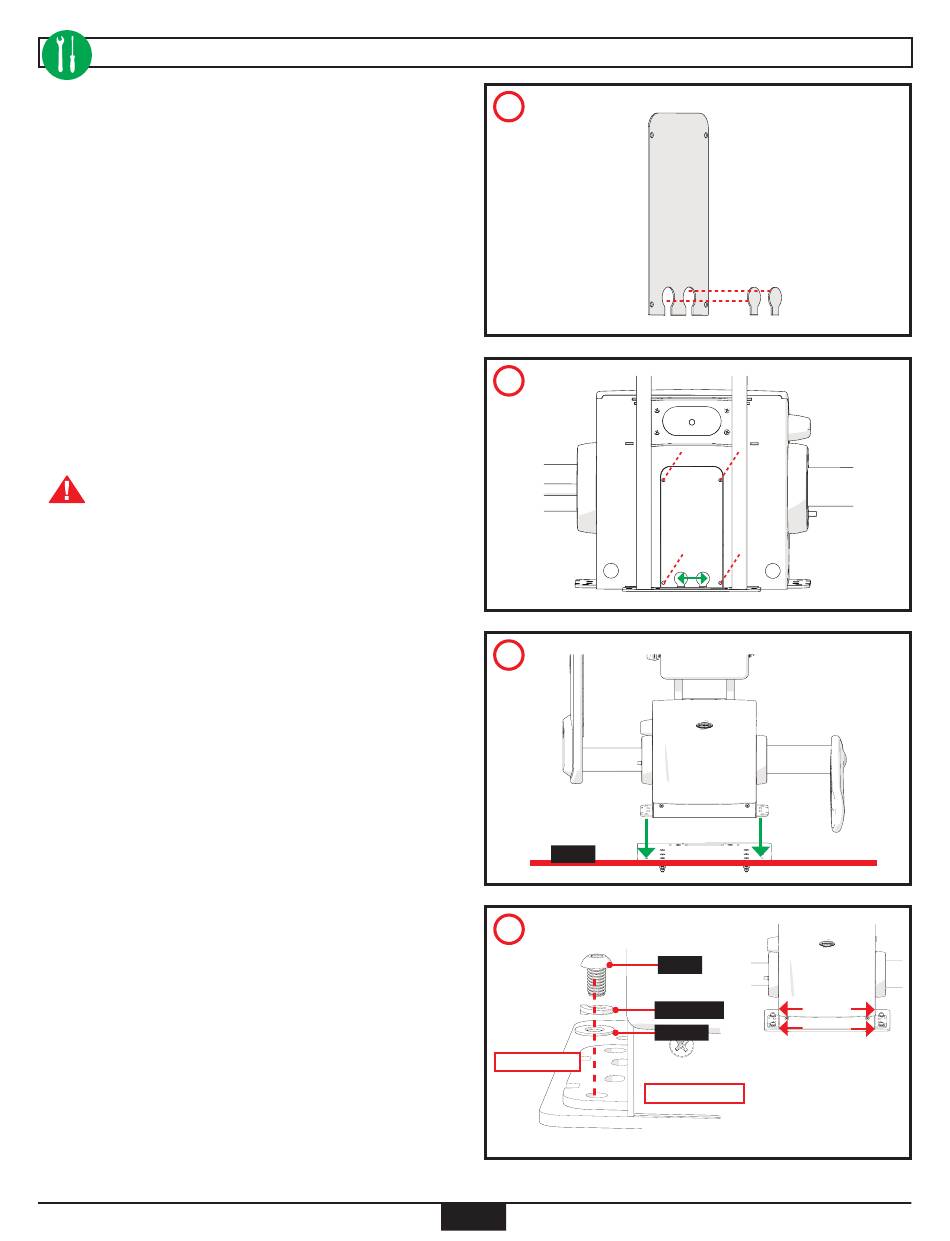

Q'STRAINT QUANTUM Installation Manual page 36

25. Choose the best Knock-Out Hole(s) on the Electrical Panel
Cover, push out the insert(s) and place a grommet in the
hole(s) opening to protect the wires running through it (U).
26. Run the wires through the Knock-Out Hole(s). Place back
the Electrical Panel Cover onto the QUANTUM® and screw-
in the 4 screws (V).
Make sure there is no tension with wires running
through the Electrical Panel Cover Knock-Out Holes.
27. Place QUANTUM® with Backrest on top of the installed
Mounting Plate and align the holes (W).
28. Place Bolt through a lock washer, a washer, the QUANTUM®
Base, Mounting Plate and tighten Bolt (X) to permanently
install the QUANTUM® onto the Mounting Plate. Repeat
step 28 for the remaining 3 holes (X).
INSTALLATION
U
V
W
Floor
X
Mounting Plate
36
Bolt
Lock Washer
Washer
QUANTUM® Base
