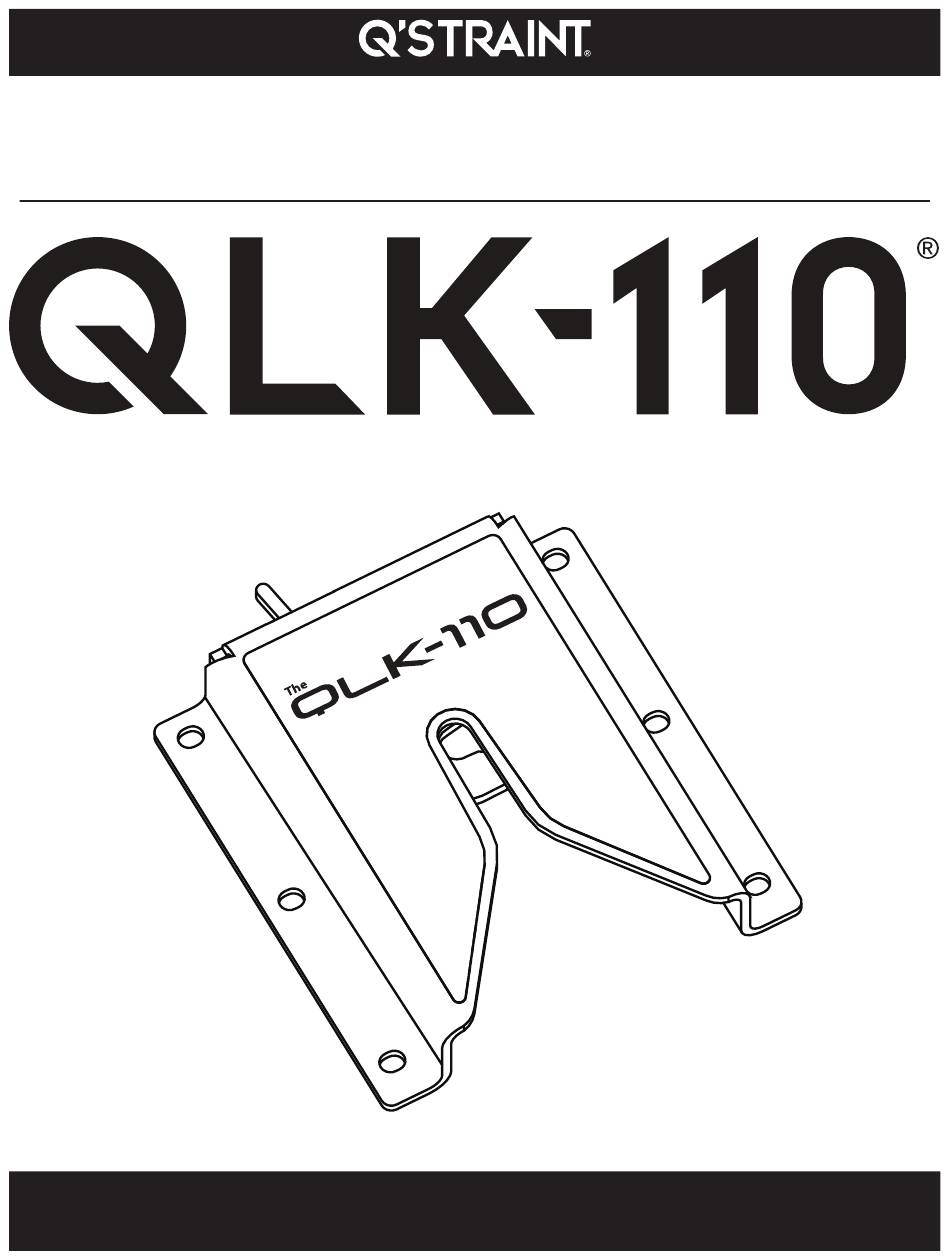

- Page 1 W H E E LC H A I R D O C K I N G S TAT I O N THE QLK-110 WHEELCHAIR DOCKING STATION COMPLIES WITH ALL APPLICABLE REQUIREMENTS OF: ADA, FMVSS, CMVSS, SAE J2249, CSA Z604, AS2942, ISO 10542-1 AND ANSI/RESNA WC-4 SECTION 18.
- Page 2 © 2014 Q’Straint®. All Rights Reserved. QLK™ is a registered trademark of Q’Straint®, Inc.
-
Page 3: Table Of Contents
WARRANTY ....................19 Read All Instructions Prior to Installation • This manual is a comprehensive step-by-step instruction guide on how to install the QLK-110 Wheelchair Docking Station and components into vehicles’ floors. • Make sure to read, understand and follow all these instructions. -
Page 4: Important Safeguards And Warnings
• Do not operate the vehicle if the warning buzzer is beeping, or the amber light is lit up or flashing on the Dash Control Panel. • The QLK-110 Wheelchair Docking Station should not be operated by anyone who does not have full comprehension of how the station works or if the station is not working properly. -
Page 5: Introduction
BUILT TO LAST The QLK-110 Wheelchair Docking Station is constructed out of high quality, heat treated, and anti-corrosive metal—designed with micro switch protection. Our durable wheelchair brackets offer occupants the right choice for their wheelchair securement. SECURED ON THE ROAD We are involved in all major international safety committees to assist in developing and improving wheelchair and occupant safety standards. -
Page 6: Equipment And Part Numbers
EQUIPMENT AND PART NUMBERS Order Parts by contacting the nearest Q’Straint® authorized dealer or office. 1. QLK-110 Wheelchair Docking Station 1. Locking Pawl 1. Electronic Control Module (ECM) (part# Q041250) 2. 5/8” (15.88mm) Docking Bolt (Grade 8) (part# QS00095) 2. Emergency Release Lever 1. -
Page 7: Installation Instructions
Varies depending on Bracket and V-Guide Attach to wheelchair the wheelchair model (Required for Driver Application) Mark Location of QLK-110 Center Wheelchair over Docking Station Wheelchair Docking Station Choose best location and mark up the position of and Stabilizer (Required for... - Page 8 This will vary depending on the wheelchair model. 2. This illustration is a sample of an installed Wheelchair Interface Bracket and V-Guide on a wheelchair (D). MARK LOCATION OF QLK-110 WHEELCHAIR DOCKING STATION AND STABILIZER Stabilizer required for driver application and recommended for all other applications.
- Page 9 7. Mark the location of the QLK-110 Docking Station with the wheelchair occupant present (J). If replacing an existing Q’Straint® QLK Docking Station, use the same holes in the vehicle and the new (supplied) Q’Straint® Hardware (Grade 8). 8. Follow the assembly instructions that come with the Stabilizer.
- Page 10 CONNECT POWER WIRES Disconnect main power source. Red Power Wire White Ignition Wire Black Ground Wire Make sure there are no open electrical connections. 13. Remove all necessary vehicle panels according to manufacturer instructions. 14. Temporarily connect the Power (red), Ground (black) and Ignition (white) Wires to main power (M) by connecting the red wire to a constant 12V source through Connected Power Wires...
- Page 11 If not installing the Auxiliary Release Switch proceed to step 25. 23. Manually push in the Locking Pawl with a screwdriver to lock the QLK-110 Wheelchair Docking Station, Green Light Vehicle Off on Dash Control Panel illuminates. 24. With the...
- Page 12 27. With the Vehicle ON, manually push in the Locking Pawl with a screwdriver to lock the Docking Station and the Green Light on Dash Control Panel illuminates (steady audio beep stops if it was not muted) (W). Wheelchair is secure and ready for transport.
-
Page 13: Routing Wires
ROUTING WIRES Before installation, inspect the underside of vehicle floor, note utilities, frames, cross-members, fuel tanks and other possible obstructions. Make sure there are no open electrical connections. 33. Route all wiring and cables so that they do not interfere with the normal operation of both the wheelchair and vehicle (wheelchair castors, gas and brake pedals, etc.). -
Page 14: Electronic Control Module (Ecm)
ELECTRONIC CONTROL MODULE (ECM) 38. Permanently connect Docking Base Wire Harness to the Connected Power Wires Electronic Control Module (ECM) (CC). Connected 39. Permanently connect the Communication Cable to the Electronic Control Module (ECM) (DD). 40. Mount Electronic Control Module (ECM) behind dash panel with 4 screws (provided) or with double-sided adhesive tape placed on the back of the ECM (EE). - Page 15 Connectors Auxiliary Release Cables 44. Install the Auxiliary Release Switch where previously determined by the wheelchair occupant. MOUNTING THE QLK-110 WHEELCHAIR DOCKING STATION Inspect the underside of vehicle floor, note utilities Level and Parallel frames, cross-members, fuel tanks and other possible obstructions.
- Page 16 MOUNTING THE STABILIZER Inspect the underside of vehicle floor, note utilities, frames, cross-members, fuel tanks and other possible obstructions. 50. Place the wheelchair (without occupant) on top of the Docking Station. Move wheelchair forward and engage the 5/8” (15.88mm) Docking Bolt into the Docking Station (QQ). 51.
-
Page 17: Testing The System
Unlocks Auxiliary Release Switch Follow the complete Operating Instructions in the Use and Care Manual to test the QLK-110 Wheelchair Docking Station with the wheelchair occupant present. When vehicle is turned off, make sure the Locking Pawl REMAINS open on the Docking Station so that all lights on the Dash Control Panel are off. -
Page 18: Power Failure And Emergency Release
POWER FAILURE AND EMERGENCY RELEASE 57. In case of power failure or an emergency, push the Emergency Release Lever. This will unlock the Locking Pawl and release the wheelchair from the Docking Station (WW). TROUBLESHOOTING PROBLEM IMAGE ANSWER The Dash Control Panel Check that the Communication Cable is connected to both the is not working. -
Page 19: Preventative Maintenance Checklist
Check Docking Bolt adjustment where it enters guide channel and correct if necessary. 2. Any deficiencies shall be noted below and rectified before the QLK-110 is released to the consumer for use. 3. If the repairing technician has any issues not covered by this document or is not clear on what corrective action needs to be taken, they MUST consult the nearest Q’Straint®... - Page 20 www.qstraint.com This manual contains current information at the time of printing. Q’Straint® reserves the right to modify systems, components and content without notice. This manual was printed on 30% post-consumer stock using vegetable oil based inks and is 100% recyclable. ©...
