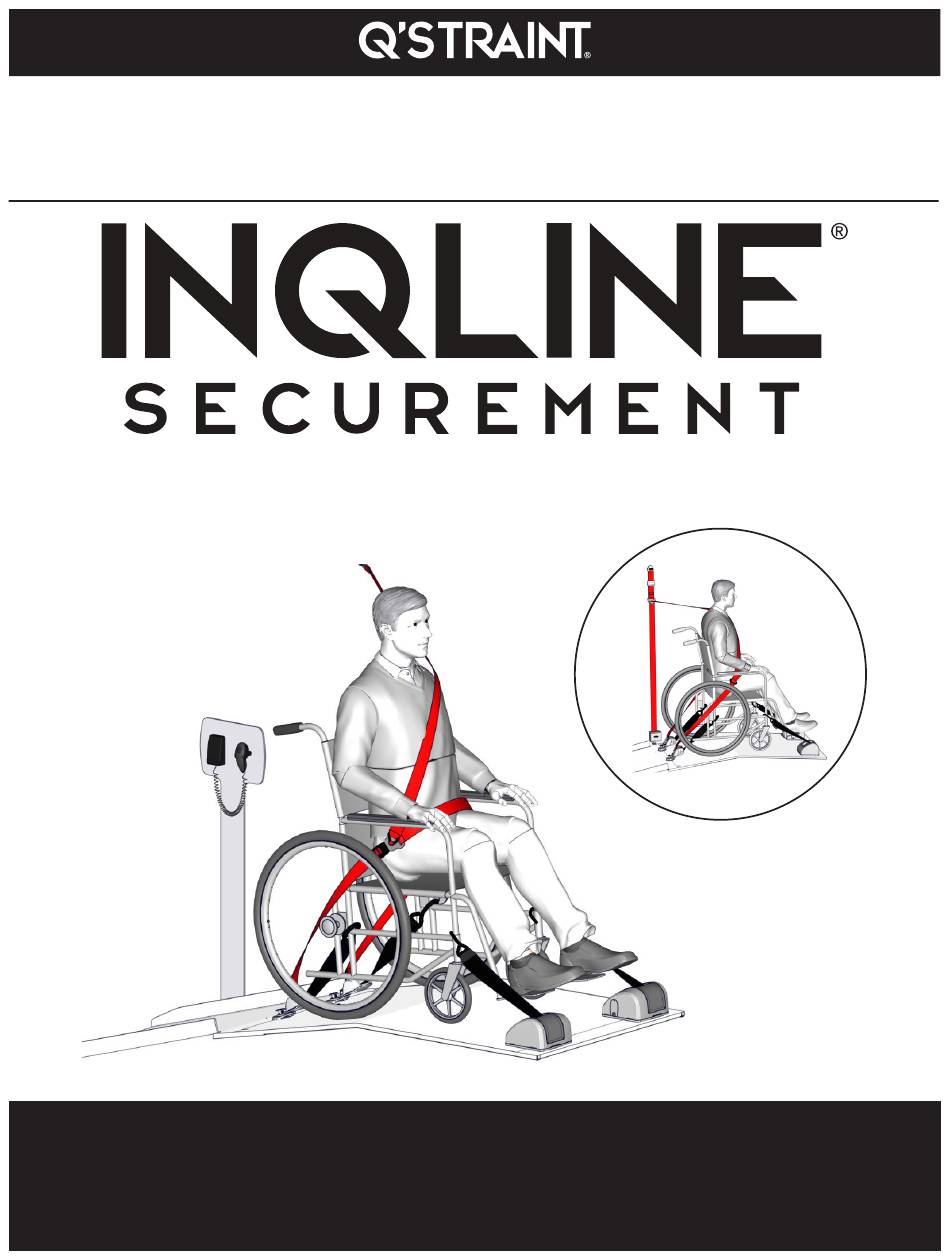

Use and Care Manual
INTEGRATED WINCH & RETRACTOR SYSTEM
THIS REAR-ENTRY INTEGRATED SECUREMENT SYSTEM AND COMPONENTS COMPLY WITH ALL APPLICABLE PARTS
OF RELATED SAFETY REGULATIONS AND STANDARDS INCLUDING ADA, FMVSS & CMVSS 209/302, AND CSA Z605.
IN ADDITION, ALL SYSTEMS ARE CRASH TESTED AT 30MPH (48KPH), 20G, AND FULLY COMPLY WITH RESNA WC-4,
SECTION 18 AND ISO-10542-1.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Q'STRAINT INQLINE SECUREMENT
Summary of Contents for Q'STRAINT INQLINE SECUREMENT
- Page 1 Use and Care Manual INTEGRATED WINCH & RETRACTOR SYSTEM THIS REAR-ENTRY INTEGRATED SECUREMENT SYSTEM AND COMPONENTS COMPLY WITH ALL APPLICABLE PARTS OF RELATED SAFETY REGULATIONS AND STANDARDS INCLUDING ADA, FMVSS & CMVSS 209/302, AND CSA Z605. IN ADDITION, ALL SYSTEMS ARE CRASH TESTED AT 30MPH (48KPH), 20G, AND FULLY COMPLY WITH RESNA WC-4, SECTION 18 AND ISO-10542-1.
- Page 2 © 2019 Q’Straint®. All Rights Reserved. Q’Straint®, Q’Straint® logo, OMNI® and Slide ‘N Click® are registered trademarks of Q’Straint®, Inc. QRT™ and INQLINE SECUREMENT™ are trademarks of Q’Straint®, Inc. Products mentioned herein are for identification purposes only and may be registered trademarks or trademarks of their respective companies. All other brand...
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT INSTALLATION REQUIREMENTS ....................4 IMPORTANT SAFEGUARDS AND WARNINGS ....................5 INTRODUCTION ...............................6 COMPLIANCE ................................6 ELECTRICAL REQUIREMENTS ..........................7 SYSTEM DEFINITIONS ............................7-9 OPERATIONAL SEQUENCE ..........................10 OPERATING INSTRUCTIONS ........................11-16 EMERGENCY RELEASE ...........................17-20 TROUBLESHOOTING .............................20-23 MAINTENANCE AND CARE ..........................24 WARRANTY ................................25... -
Page 4: Important Installation Requirements
INQLINE SECUREMENT™ System). • This manual provides an instruction guide for the installation of the INQLINE SECUREMENT™ System. Do NOT alter, modify, interchange or substitute any Q'STRAINT® components as the INQLINE SECUREMENT™ System and all related component are designed and tested to work as one cohesive system and MUST be suitable for your particular application. Any deviation, alterations, or improper installation of the INQLINE SECUREMENT™ System may result in personal injury. • All equipment and components MUST be installed and serviced by an experienced and trained technician. We recommend the use of safety eye glasses, and other injury preventive measures, whenever installing or servicing this system. • Inspect and verify the underside location of the vehicle floor, utilities, frames, cross-members, fuel tanks and other possible obstructions that may effect the proper installation of the INQLINE SECUREMENT™ System. Do NOT install anchorages or any other system components into faulty or non-durable materials such as corroded metal, wood, plastic, or fiberglass panels. The INQLINE SECUREMENT™ System and vehicle anchor points may require additional reinforcement. The installer is responsible for ensuring that anchorages are installed into a structure that conform to applicable regulations, standards, and performance requirements. • Do NOT attempt to repair or modify the INQLINE SECUREMENT™ System or any of its components. Unless otherwise stated, ONLY use Q'STRAINT® components with this system. Do NOT mix parts and components from other manufacturers, and do NOT use if any components are missing, defective or if the webbing is cut, frayed, burnt, melted, or abraded. • The INQLINE SECUREMENT™ System is dynamically crash tested at 30MPH (48KPH), 20G in the forward facing direction using a Surrogate Wheelchair (SWC) weighing 187LBS (85KG) to 440LBS (200KG) and a 168LBS (76KG) Anthropomorphic Test Device (ATD). The ATD is secured using a compliant Occupant Restraint System that includes a Shoulder and Pelvic Belt. • The INQLINE SECUREMENT™ System is statically tested (Winch Straight Line Pull) on a 16° simulated ramp and a combined mass of 608LBS (276KG). • The permanent Placard which provides a general guideline for the proper use and operation of the INQLINE SECUREMENT™ System and, if applicable, the manual override, must be posted in a visible location close to the installed device. • Contact Q'STRAINT® in the event that the vehicle’s dimensions are outside the testing or recommended installation instructions. SAVE THESE INSTRUCTIONS... -
Page 5: Important Safeguards And Warnings
IMPORTANT SAFEGUARDS AND WARNINGS • Do NOT operate or use this product until you read and fully understand all the instructions in the installation and use & care manuals. Only permit a QUALIFIED person, an individual properly trained in securing mobility aids and positioning occupant restraints, to install and use this system. Improper use of the INQLINE SECUREMENT™ System may result in personal injury. • ONLY use this product with forward-facing wheelchairs. For maximum safety use a Wheelchair Tie-Down and Occupant Restraint System (WTORS) compliant to ANSI/RESNA WC-4, Section 18, CSA-Z605, or ISO 10542 and wheelchairs compliant to ANSI/RESNA WC-4, Section 19, CSA-Z604, or ISO 7176 Part 19. • When installed and used per these instructions, the INQLINE SECUREMENT™ System will result in increased safety and security for wheelchair bound occupants during normal travel, emergency vehicle maneuvers, and other type of incidents. Replace the INQLINE SECUREMENT™ System and its components after a vehicle incident or a sudden stop that may have comprised the integrity of the system. • Due to variations of wheelchair designs, occupant size and weight, and loading ramp angles, any additional equipment or luggage being carried on the wheelchair or occupant may create a hazardous condition for the wheelchair and its occupant to tip backwards, or sideways. We therefore recommend that all additional equipment and luggage that could increase the likelihood of tipping are removed from the wheelchair or the occupant prior to use. We also recommend the presence of an assistant at all times when the wheelchair is boarding, or alighting, the vehicle. • The INQLINE SECUREMENT™ System will only operate when the vehicle is set to “Park” mode. The System is also equipped with a factory set Auto Stop feature designed to stop the wheelchair approximately 12 – 16 inches (300 – 400 mm) away from the units. As each wheelchair and vehicle installation differs, additional distance may be required to prevent contact with the units or vehicle furniture and reduce the likelihood of injury to the occupant. We recommend that careful observation is given to the placement of the occupant in the vehicle during boarding and alighting. • The INQLINE SECUREMENT™ System and its components MUST be regularly cleaned, maintained, and inspected before each use. Do NOT use if any of the components are damaged, broken, missing, defective or if the webbing is cut, frayed, burnt, melted, or abraded. • When not in use, always keep the wheelchair and occupant (shoulder and lap) belts off the floor by using a proper storage bag or container. Do not allow webbing to get twisted inside the retractors or come in contact with sharp corners and edges. • The Wheelchair Securement Tie-Down hooks MUST be attached to designated wheelchair securement locations or the wheelchair frame as described in the Use and Care manual. Do NOT attach the Tie-Down hooks to the wheelchair’s wheel spokes, the wheels, or any removable or non-durable sections of the wheelchair. Ensure all Wheelchair Securement Tie-Downs are locked and properly tensioned. If necessary rock the wheelchair back and forth or manually tension knobs (if available) to remove webbing slack. -
Page 6: Introduction
INTRODUCTION ENGINEERED TO PERFORM This Integrated Winch and Retractor Compact System, designed by our engineers has revolutionized the industry with its innovative design that automatically steers a wheelchair passenger up the ramp, self-tensions and secures—all at the Touch-of-a-Button. Offering peace-of-mind and full control over the ascent and descent of the mobility device. BUILT TO LAST Equipped with energy-absorbing steel frame and heavy-duty precision belt retractors that hold the load in place as it guides the wheelchair passenger up and down the ramp. -
Page 7: Electrical Requirements
ELECTRICAL REQUIREMENTS Power Supply • All equipment and components must be installed and serviced by an experienced and trained technician. • Connection to be 12Vdc using a 30 amp fuse between + terminal of battery and controller. SYSTEM DEFINITIONS J-Hooks Front, Automatic Right and Left INQLINE SECUREMENT™ Retractors • Automatically retracts wheelchair into vehicle and descends wheelchair from vehicle. - Page 8 SYSTEM DEFINITIONS LOCKS Front Retractors Reset Button Press Both to Release Front Retractors UNLOCKS Front Retractors Wall Control Panel • Releases, locks, unlocks Front Automatic INQLINE SECUREMENT™ Retractors and resets system. Thumb Controller Z Button J-Hooks Wall Mount Thumb Controller and Wall Mount Slide 'N Click • Press Z Button to activate Thumb Controller, then *Sold Separately move the Controller forward, downward or slightly left Rear QRT Retractors (compliant with RESNA WC-4, or right to regulate the direction of the wheelchair.
- Page 9 SYSTEM DEFINITIONS From Webbing Center Line 13" - 15"(330mm) - (380mm) 27" (658mm) - 34" (865mm) Securement Zone 13" (330mm) - 15" (380mm) 48" (1220mm) - 54" (1370mm) Securement Zone • Securement Zone for Wheelchair Occupant. Shoulder Belt Shoulder Belt Pelvic Belt Lap Belt Lap Belt Pelvic Belt US Occupant Securement UK Occupant Securement...
-
Page 10: Operational Sequence
OPERATIONAL SEQUENCE The following is a quick guide on how the INQLINE SECUREMENT™ Integrated Winch & Retractor System works. Reference the Operating Instructions Section in this Manual for complete instructions. Press & Hold Z Button... -
Page 11: Operating Instructions
Park wheelchair behind ramp, lock brakes or power off chair (A). Chair Off Press and hold both buttons (4 seconds) to release front INQLINE SECUREMENT™ retractors (B). Attach front J-Hooks to solid wheelchair frame (30 seconds), unlock brakes and keep chair powered off (C). - Page 12 OPERATING INSTRUCTIONS SECURING WHEELCHAIR Use CAUTION when adjusting the direction of the wheelchair as it goes up the ramp (F). Position wheelchair in Securement Zone (G). Ensure there are 4" between existing securement attached points and rear wheel edges of the wheelchair for correct securement.
- Page 13 OPERATING INSTRUCTIONS SECURING WHEELCHAIR Press & Hold Press and hold Lock Button (3 seconds) to lock INQLINE SECUREMENT™ Retractors in place (L). SECURING PASSENGER Occupant Securement System may differ from what is illustrated depending on the vehicle model Attach Lap Belt Pin Connector to Retractor Pin (M).
- Page 14 OPERATING INSTRUCTIONS SECURING PASSENGER Shoulder and Lap Belt must go across occupant’s shoulder and hip, and not be held away from the occupant’s body by wheelchair components. We recommend using both a pelvic and shoulder belt together and not individually since it will compromise the performance of the system.
- Page 15 OPERATING INSTRUCTIONS RELEASING PASSENGER Detach Pelvic Belt Pin Connector from Retractor Pin (W) and place Pelvic Belt in storage. Detach Lap Belt Pin Connector from Retractor Pin (X) and place Lap Belt in storage. RELEASING WHEELCHAIR Unlock brakes and keep chair powered off (Y). Press and hold Unlock Button (4 seconds) to release retractors (Z).
- Page 16 OPERATING INSTRUCTIONS RELEASING WHEELCHAIR Remove rear QRT Retractors from floor by lifting the Slide ‘N Click® and sliding out the retractors (BB). Place retractors in storage. Press and hold Z Button; push the Thumb Controller Press & Hold Z Button downward to move wheelchair down the ramp with CAUTION, then move it slightly left or right to adjust wheelchair direction (CC).
-
Page 17: Emergency Release
(KK). Press If Retractors release, proceed to step 6. If the front INQLINE SECUREMENT™ Retractors do NOT release, disconnect the Thumb Controller Cord from the Wall Control Panel (LL); in order to use the Wall Control Panel as the Thumb Controller. - Page 18 Retractors and move the wheelchair back a few inches Press (MM). If the front INQLINE SECUREMENT™ Retractors do NOT release, make sure someone is behind the wheelchair to hold it in place before cutting the front webbings at an angle with the Q’Straint® Emergency Cutter (NN).
- Page 19 (SS). Place wheelchair in secure area. Webbing Was NOT Cut If the front INQLINE SECUREMENT™ Webbing was NOT cut proceed to the next step (TT). Unlock brakes and keep chair powered off. Press and Press &...
-
Page 20: Troubleshooting
(XX). TROUBLESHOOTING PROBLEM IMAGE ANSWER Front INQLINE SECUREMENT™ Make sure they have power, all wires are Retractors are not working. connected and interlock circuit is working properly. Also, that the car battery has no less than 12 volts of power. - Page 21 TROUBLESHOOTING PROBLEM IMAGE ANSWER The webbing is twisted inside Press and hold both buttons for about 4 the front retractor. seconds to release front retractors. Then pull J-Hook until you find twisted webbing and straighten the webbing. The webbing is twisted inside Press lever and pull J-Hook until you find the back retractor.
- Page 22 Thumb Controller. In Case of Power Failure: Push the Reset Button and see if the INQLINE SECUREMENT™ power comes back on. Also, check the INQLINE SECUREMENT™ fuse to make sure it’s working. If the fuse is not working, replace it.
- Page 23 J-Hooks, cut webbings at an and not releasing the J-Hooks. angle (Use Q'Straint® Emergency Cutter). It's an Emergency Cut Webbing Cut webbings at an angle (Use Q'Straint® and there is no power Emergency Cutter). It's an Emergency Press & hold Z button; pull...
-
Page 24: Maintenance And Care
MAINTENANCE AND CARE Prevent Exposure to Moisture • Do NOT wet the Retractors. • Do NOT wet the Thumb Controller or Wall Control Panel. • Inspect all cables, make sure they are connected and covered. • Inspect for pulled wires. •... -
Page 25: Warranty
2 YEAR WARRANTY - ALL SYSTEMS, PRODUCTS & ACCESSORIES WARRANTY REGISTRATION In order to take full advantage of Q’Straint’s warranty, register your product online at: www.qstraint.com/registration PLEASE DO NOT MAIL IN THIS REGISTRATION. Before going online, have your vehicle’s registration handy as well as the equipment’s: Serial # _________________________ Part # __________________________ Q’STRAINT’S LIMITED WARRANTY: Q’Straint® warrants this product conformance to our manufacturing specifications and to be free from defects in materials and workmanship. Q’Straint® or its authorized dealer will (at its sole discretion), repair or replace the defective component(s) free of charge. - Page 28 This manual contains the most current information at the time of printing. Q'STRAINT® reserves the right to modify systems, components and content without notice. This manual was printed on 30% post-consumer stock using vegetable oil based inks and is 100% recyclable. © 2017 Q'STRAINT . All Rights Reserved. ® Our products are protected under the following patents: www.qstraint.com/patents FOR TECHNICAL SUPPORT OR TO FIND YOUR NEAREST AUTHORIZED DEALER: Q’STRAINT EUROPE Q’STRAINT AMERICA Q’STRAINT AUSTRALIA 72-76 John Wilson Business Park 4031 NE 12th Terrace Tramanco Pty Ltd. Whitstable, Kent, CT5 3QT Oakland Park, FL 33334 21 Shoebury Street, United Kingdom Tel: 800-987-9987 Rocklea, Australia, QLD. 4106...
