Q'STRAINT QRT-1 Series Use And Care Manual

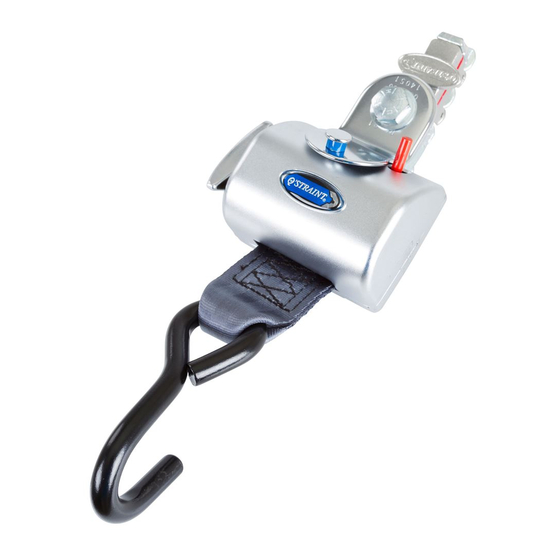

Vehicle anchorages & accessories for 4-point wheelchair securement systems
Hide thumbs Also See for QRT-1 Series:

Advertisement

Table of Contents

Use and Care Manual
VEHICLE ANCHORAGES & ACCESSORIES FOR 4-POINT
WHEELCHAIR SECUREMENT SYSTEMS:
QRT- 1, 3 & 5 SERIES
Q-5000 SERIES
M-SERIES
THE Q'STRAINT® 4-POINT WHEELCHAIR SECUREMENT SYSTEM AND COMPONENTS
COMPLY WITH ALL APPLICABLE REQUIREMENTS OF SAFETY REGULATIONS
AND STANDARD ISO10542-1:2012, PAS2012 AND UN ECE REGULATION 107 AS APPLICABLE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QRT-1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Q'STRAINT QRT-1 Series

Summary of Contents for Q'STRAINT QRT-1 Series

  • Page 1 Use and Care Manual VEHICLE ANCHORAGES & ACCESSORIES FOR 4-POINT WHEELCHAIR SECUREMENT SYSTEMS: QRT- 1, 3 & 5 SERIES Q-5000 SERIES M-SERIES THE Q’STRAINT® 4-POINT WHEELCHAIR SECUREMENT SYSTEM AND COMPONENTS COMPLY WITH ALL APPLICABLE REQUIREMENTS OF SAFETY REGULATIONS AND STANDARD ISO10542-1:2012, PAS2012 AND UN ECE REGULATION 107 AS APPLICABLE.
  • Page 2 © 2020 Q’Straint®. All Rights Reserved. QRT™ is a registered trademark of Q’Straint®, Inc.

  • Page 3: Table Of Contents

    4-POINT WHEELCHAIR SECUREMENT SYSTEMS TABLE OF CONTENTS READ ALL INSTRUCTIONS PRIOR TO INSTALLATION...........................4 IMPORTANT SAFEGUARDS AND WARNINGS ............................4 COMPLIANCE ........................................5 EQUIPMENT.........................................6 OPERATIONAL SEQUENCE ....................................7 SYSTEM DEFINITIONS ....................................8-9 OPERATING INSTRUCTIONS ................................10-17 POWER FAILURE ......................................18 TROUBLESHOOTING ....................................19-20 MAINTENANCE AND CARE..................................21 WARRANTY ........................................

  • Page 4: Read All Instructions Prior To Installation

    • This manual is a comprehensive step-by-step guide for the following 4-point Wheelchair Securement Systems: QER - Q’straint Electrical Front Retractor, QRT-1 Series - QRT Deluxe, QRT Max & QRT Standard, QRT-3 Series - QRT350e, QRT-5 Series - QRT550e, M-Series & Q-5000 Series •...

  • Page 5: Compliance

    COMPLIANCE • The QER, QRT 1,3, 5, Q5000, M-Series series 4-point 4-Point Wheelchair Securement Systems and components comply with all applicable requirements of safety regulations and standard ISO10542-1:2012, PAS2012 and UN ECE Regulation 107, as applicable. • QRT-1 (used with either QRT1 or QER at the front), Q-5000 & M-Series Systems are dynamically crash tested at 30mph (48kph), 20g, using a 85kg forward facing surrogate wheelchair and a 78kg Anthropomorphic Test Device (ATD).

  • Page 6: Equipment

    EQUIPMENT Functionality of Q’Straint® Retractors 1. Red Release Lever 2. Connecting Pin on Retractor (for occupant restraint) 3. Frame and cover 4. Webbing 5. J-Hook (universal wheelchair securement) 6. Retractor Knobs (manually tension webbing) Functionality of Q’Straint® Manual Tiedown Straps Q5000 REAR TIEDOWN Q5000 FRONT TIEDOWN M-SERIES FRONT &...

  • Page 7: Operational Sequence

    OPERATIONAL SEQUENCE The following is a quick guide on how the Electrical Retractor and QRT (QER-QRT) System and 4 point (QRT) Wheelchair Securement System works.. Reference the Operating Instructions Section in this manual for complete instructions. FRONT ELECTRICAL AND REAR FRONT AND REAR QRT FRONT AND REAR MANUAL QRT MECHANICAL RETRACTORS...

  • Page 8: System Definitions

    SYSTEM DEFINITIONS J-Hook Retractor Webbing Red Release Lever Pin on Rear Retractor Solid Frame Members QRT Retractor J-Hook J-Hook Webbing QER Electrical Retractor Red Release Lever Webbing QRT Retractor Front Electrical Retractor Front Mechanical Retractor Pin on Rear Manual Tiedown Strap Webbing Adjuster FRONT MANUAL STRAP TIEDOWN...
  • Page 9 SYSTEM DEFINITIONS REAR VIEW SIDE VIEW FRONT VIEW Wheelchair Wheelchair Reference Plane Reference Plane Front Securement Points Rear Securement Points 30º 40º 6º 11º 45º 60º 32º 20º 13” (330mm) 27” 48” - 54” (685mm) (1220mm - 1520mm) 34” 15” (380mm) (865mm) Please CONTACT Q’Straint®...

  • Page 10: Operating Instructions

    OPERATING INSTRUCTIONS SECURING WHEELCHAIR Front (QER) Electrical Retractors: (If front retractors Power On are not electrical follow steps 4-10.) Prior to entering vehicle, park wheelchair behind ramp, lock wheelchair brakes and power on Electrical Retractors (A). 2. Pull both J-Hooks, attach them to solid wheelchair frame, power off Electrical Retractors and unlock wheelchair brakes (B).
  • Page 11 SECURING WHEELCHAIR 5. Attach Front Retractor or Manual Front Tiedown into floor anchorage points and lock them in place (E). If the KIT has 2 QRT-1 (Deluxe or Max) and 2 QRT350e or QRT550e Retractors (the bigger retractors), ensure the 2 QRT-1 Retractor are used at the front 6.
  • Page 12 SECURING PASSENGER RETRACTABLE COMBINATION LAP/SHOULDER BELT SYSTEMS- Steps 11+ RETRACTABLE COMBINATION LAP/SHOULDER BELT SYSTEMS with BUCKLE STALKS - Steps 14+ SEPARATE SHOULDER AND PELVIC BELTS – Steps 16+ RETRACTABLE COMBINATION LAP/SHOULDER BELT SYSTEMS 11. Attach Shoulder belt Pin Connector to Pin on Rear Retractor closest to the Wall (M) Shoulder Belt Pin Connector Pin on Rear Retractor...
  • Page 13 SECURING PASSENGER SEPARATE SHOULDER BELT AND PELVIC BELTS 16. Attach Pelvic belt Pin Connectors onto Pins on Rear Retractors (Q) or Tiedown Straps (R) Pelvic Belt Pin Connector Pin on Rear Retractor Pelvic Belt Pin Connector Check that the Buckle Release is nearest to the Occupants Hip on the Aisle Side (opposite side to shoulder belt) 17.
  • Page 14 RELEASING PASSENGER 21. Disconnect the Shoulder belt from the lapbelt (W) or Unbuckle Shoulder Belt Pelvic Connector from Removeable Pelvic Belt /Buckle Stalk (X). 22. For Removeable Shoulder belts, Remove Shoulder belt and place in storage pouch. Shoulder Belt Pelvic Connector Removable Pelvic Belt 23.
  • Page 15 RELEASING WHEELCHAIR J-Hook 27. Press Red Release Levers on QRT Rear Retractors and detach J-Hooks from wheelchair and slowly return them to retractors (X). Red Release Lever Manual Tiedown Straps, Press release lever on adjuster to loosen webbing and detach hooks QRT-350E Rear Retractors from wheelchair.
  • Page 16 RELEASING WHEELCHAIR 31. Position wheelchair on the ground and lock wheelchair brakes (or power off electric chair) (EE). Power Off 32. Detach J-Hooks from wheelchair, slowly return them to retractors and power off Electrical Retractors (FF). Keep loose articles of clothing away from retractors.
  • Page 17 RELEASING WHEELCHAIR 36. Remove Retractors or straps from Floor Anchorage points (II) and place in storage. 37. Unlock wheelchair brakes (power on electric chair). Wheelchair occupant is ready to exit vehicle (JJ).

  • Page 18: Power Failure

    POWER FAILURE - ELECTRIC RETRACTORS 1. Release Occupant Restraint (Shoulder and Pelvic Belt) (KK). Rear Retractors: Press Red Release Levers on QRT Rear Retractors and detach J-Hooks from wheelchair and slowly return them to retractors (LL). Remove Rear Retractors from Floor Anchorage points and place in storage.

  • Page 19: Troubleshooting

    TROUBLESHOOTING PROBLEM IMAGE ANSWER Press and hold Red Release Lever then pull The webbing is twisted inside J-Hook until webbing is straight. the retractor. Press and hold Red Release Lever to release The retractor(s) is (are) not webbing from retractor. releasing the webbing.
  • Page 20 TROUBLESHOOTING PROBLEM IMAGE ANSWER The Electrical Retractors MUST be powered The Electrical Retractors are not on and wheelchair moved forward in order releasing the webbing. for the webbing to be released. Can the J-Hooks of the Electrical This is NOT recommended. J-Hooks should be Retractors be attached to attached to wheelchair before going up the ramp wheelchair once inside vehicle?

  • Page 21: Maintenance And Care

    MAINTENANCE AND CARE The following items should be inspected and serviced by an experienced and trained technician during the scheduled maintenance of the Q’Straint® 4-Point Wheelchair Securement System. • Always keep belts clean and off the floor by using a storage device such as a Q’Straint® wall pouch. We recommend one storage device per wheelchair location.
  • Page 24 www.qstraint.com This manual contains the most current information at the time of printing. Q’Straint® reserves the right to modify systems, components and content without notice. This manual was printed on 30% post-consumer stock using vegetable oil based inks and is 100% recyclable. ©...
