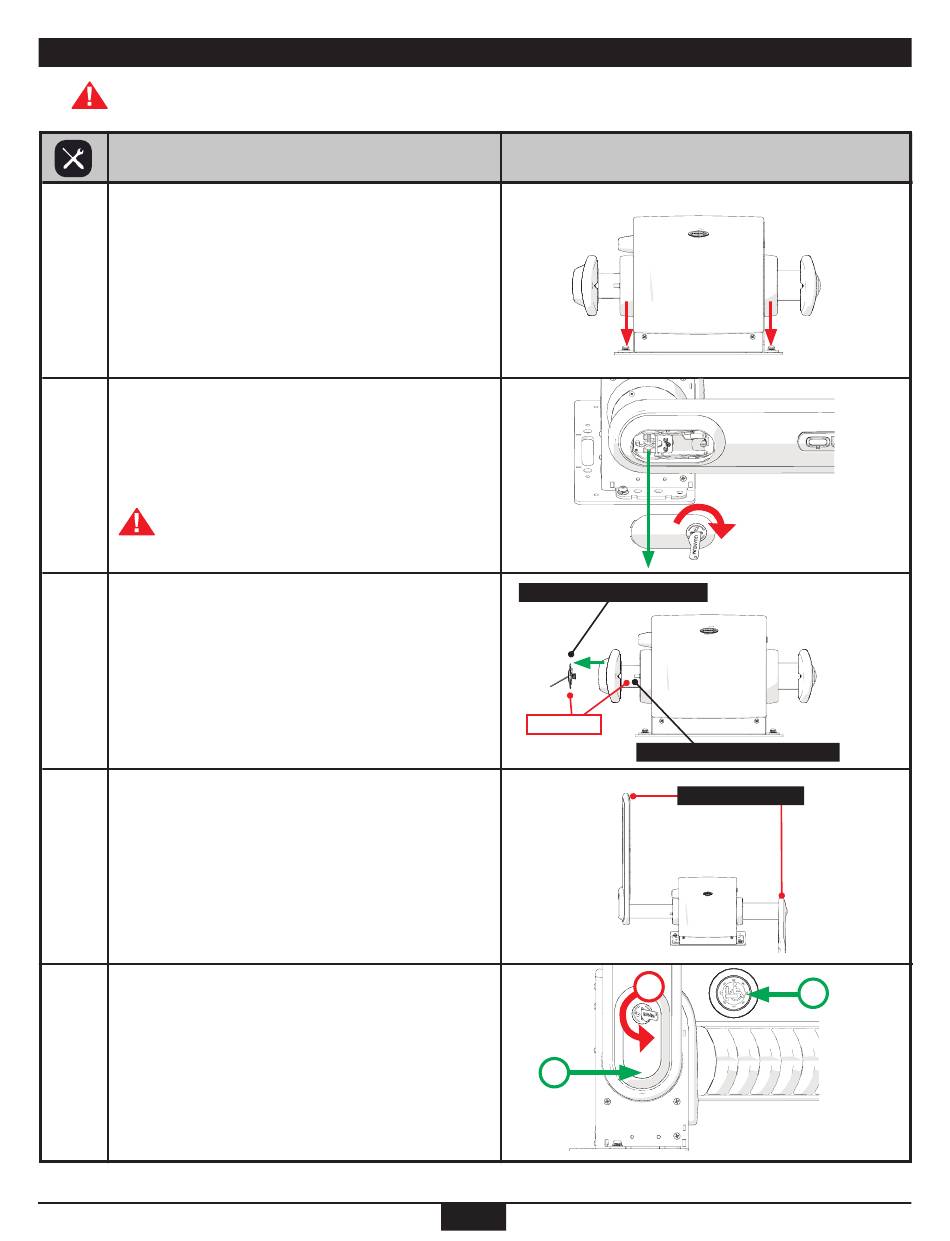

Q'STRAINT QUANTUM Installation Manual page 11

WARNING: While in maintenance and service mode, ALL safety features are temporarily disable, therefore
keep hands, feet and all body parts away from the QUANTUM® Securement System when activated.
Power source MUST be connected to QUANTUM®
with Ignition "ON" and Parking Brake "OFF".
1
Place and hold the QUANTUM® and Mounting Plate
flat on the floor in the upright position.
Remove Manual Release Cover by inserting QUANTUM®
Key (or quarter) in the slit on the Cover and turning it
2
to the right (cover pops out).
Complete step 3 within 30 seconds after
completing step 2.
Press the Stroke-Out Switch 2 times.
3
Both QUANTUM® Arms extend fully with Rotational Arm
in the vertical position and Non-Rotational Arm in the
4
horizontal position.
When done, replace Manual Release Cover, insert
QUANTUM® Key (or quarter) in the slit on the Cover and
5
turn it to the left to lock cover in place. Press Occupant
Interface to return QUANTUM® to Stow position.
SYSTEM DEFINITIONS
SERVICE MODE
(for Installation)
8
1. Remove Manual Release Cover
30 Seconds
8
1
11
2. Press Stroke-Out Switch - 2 Times
8
Arms Fully Extended
2
3
