INSTALLATION INSTRUCTIONS
• This is a comprehensive step-by-step instruction guide on how to install the QLK-150 Invacare TDX SP2 Narrow Wheelchair Bracket.
• Make sure to read, understand and follow all these instructions.
• To address any questions contact the nearest Q'Straint® office.
• All deviations and alterations from these instructions MUST be reported to both your supervisor and Q'Straint®.
• For installation of the QLK Docking system, please refer to the separate Installation Instructions and the Use and Care Manual.
• All equipment and components MUST be installed and serviced
by an experienced and trained technician.

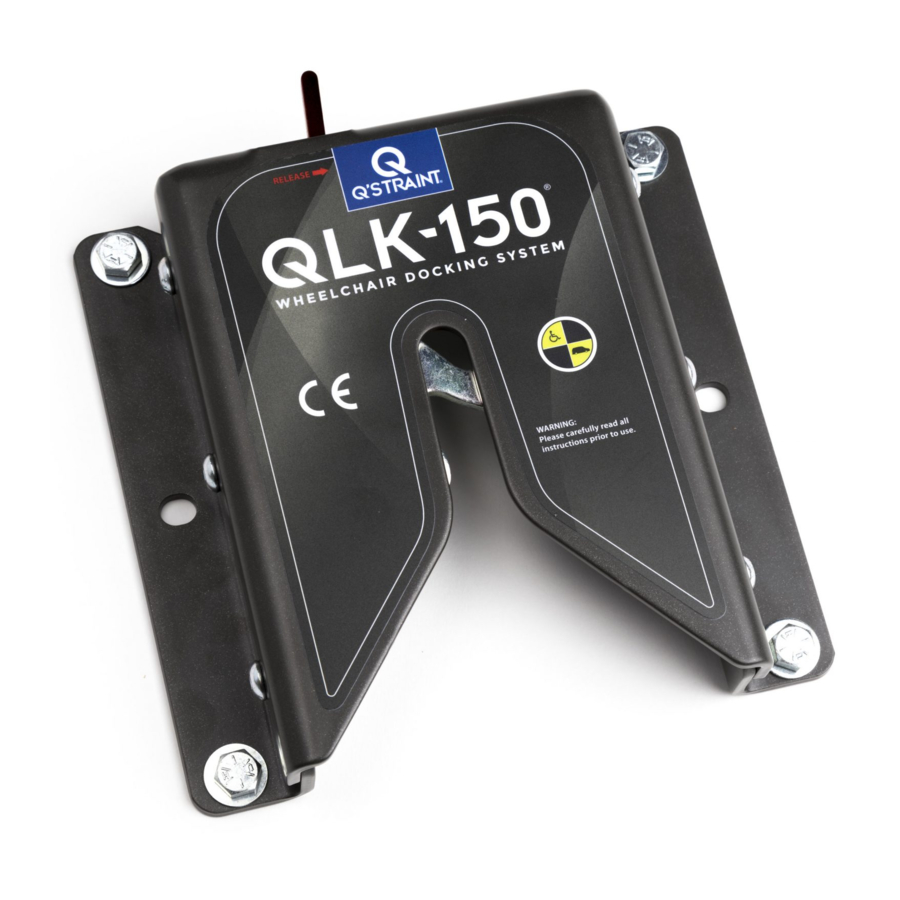

• The QLK-150 Wheelchair Docking System complies with all
applicable requirements of ADA, FMVSS, CMVSS, SAE J2249,
CSA Z604, AS2942, ISO 10542-1 and ANSI/RESNA WC-4
SECTION 18.
• This System is a complete integrated system, do not alter or
modify it in any way and do not interchange or substitute any
components. Any deviation from these recommendations is the
responsibility of the installer.
• The QLK-150 Docking System, bracket and its components
MUST be regularly inspected, cleaned and maintained.
• Do NOT attempt to repair, adjust, or modify any component(s) of
the QLK-150 system or bracket without consulting a Q'Straint®
representative.
• The QLK-150 Wheelchair Docking System should not be
operated by anyone who does not have full comprehension of
how the System works or if the System is not working properly.
• The QLK-150 Wheelchair Docking System, bracket and all
system components including floor and wall anchorages MUST
be replaced after a vehicle collision
• The QLK-150 Wheelchair Docking System MUST be installed
with a compliant occupant restraint system (shoulder and lap
belt).
INVACARE TDX SP2 NARROW
READ ALL INSTRUCTIONS PRIOR TO INSTALLATION
IMPORTANT SAFEGUARDS AND WARNINGS
SAVE THESE INSTRUCTIONS
• Broken and worn components MUST be replaced.
• All damages and defects MUST be reported to both your
supervisor and Q'Straint®.
• Only use Q'Straint® components with this system, including
hardware and wheelchair interface bracket unless otherwise
stated.
• Q'Straint wheelchair brackets and QLK docking station have
been designed and tested as a system, for use with specific
wheelchairs.
• Q'Straint supplies all the components/hardware required to
install the system so the configuration is the same as that tested
and set out in the individual installation instructions.
• Occasionally, wheelchairs may have additional components
installed which are not detailed in our installation instructions
and which may need to be temporarily removed in order to
gain access to fixing holes or support frames to enable the
attachment of the wheelchair bracket.
• It is the responsibility of the installer to ensure that all such
wheelchair component(s) are put back in their original location
using the original fixings or fixing of the same size and grade.
• Each wheelchair should be test driven after fitment of the
bracket, to ensure it is functioning correctly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QLK-150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Q'STRAINT QLK-150

  • Page 1 INSTALLATION INSTRUCTIONS READ ALL INSTRUCTIONS PRIOR TO INSTALLATION • This is a comprehensive step-by-step instruction guide on how to install the QLK-150 Invacare TDX SP2 Narrow Wheelchair Bracket. • Make sure to read, understand and follow all these instructions. • To address any questions contact the nearest Q’Straint® office.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS COMPONENT STRUCTURE ..............2 STEP 9: ATTACH SIDES OF BRACKET ............7 EQUIPMENT CHECKLIST .................3 STEP 10: SECURE ALL FIXINGS ..............7 COMPONENT CHECKLIST ..............3-4 STEP 11: INSTALL DOCKING BOLT ............8 STEP 1: REMOVE LEGS RESTS ..............5 STEP 12: INSTALLATION OF QLK DOCKING SYSTEM ....8 STEP 2: REMOVE COVER ................5 STEP 13: ALIGNMENT AND ADJUSTING ...........8 STEP 3: REMOVER ACTUATOR ...............5...
  • Page 3: Equipment Checklist

    EQUIPMENT CHECKLIST QTY. SIZE EQUIPMENT Allen Keys Adjustable Adjustable Spanner Screw Driver Flat Head Spanner 11mm COMPONENT CHECKLIST Bracket Kit Q080031 is to be used with Q04S153 and QC03003. Complete kit is part number QE-8970 Within Kit Q080031: ITEM IMAGE QTY.
  • Page 4 COMPONENT CHECKLIST Within Kit Q03BR004: ITEM IMAGE QTY. PART# AND DESCRIPTION Q03C0040 Welded Assembly QC04263 Spacer Place QC04259 Adapter Brush Within Kit QE-8971: ITEM IMAGE QTY. PART# AND DESCRIPTION QE9-8108 M8 Flat Washer QE9-8105 M8 x 25mm Button Head QE9-8111 Docking Bolt...
  • Page 5: Step 1: Remove Legs Rests

    INSTALLATION PROCEDURE Step 1 – Remove Leg Rests Remove the side-mounted leg rests if fitted. A centrally-fitted, manually adjustable leg rest should be put in its top position by turning the spindle as shown in Fig.1. Step 2 - Remove Cover Remove the thumb screws securing the front cover to the wheelchair, shown in Fig 2.
  • Page 6: Step 5: Remover Battery Tray

    Step 5 – Remove Battery Tray Slide out the battery tray that holds the two batteries as shown in Fig.5. These are both strapped in place. Step 6 – Disconnect Batteries Remove the terminal cover from the battery Battery Terminals terminals as shown in Fig.6.
  • Page 7: Step 8: Securing Back Of Bracket

    Align item 1 Q03C0040 Welded Bracket Assembly with the holes on the bottom of the wheelchair as shown in Fig.7c. Align the side of the bracket with the two holes at the side of the chair, shown in Fig.7d on each side of the chair.
  • Page 8: Step 11: Install Docking Bolt

    Step 11 – Install Docking Bolt Install item 6 QE9-8111 Docking Bolt at the base of the wheelchair as shown in Fig.11a. Use the adjustable spanner to tighten the bolt. The assembled docking bolt is shown in Fig.11b. Step 12 – Installation of QLK Docking System Install QLK docking system Q04S153 QLK 150 Kit and QC03003 QLK 150 2”...
  • Page 9: Step 15: Replace Battery Tray

    Step 14 – Reconnect Batteries Replace the bolt on the positive terminal - red cable. Replace the bolt on the negative terminal - black cable -with the 11 mm jaw spanner. Replace the terminal cover from the battery terminals. See Fig. 6. Step 15 –...
  • Page 12 www.qstraint.com © 2019 Q’Straint®. All Rights Reserved. Q’Straint® and Q’Straint® logo are registered trademarks of Q’Straint®, Inc. QLK is a trademark of Q’Straint®, Inc. Products mentioned herein are for identification purposes only and may be registered trademarks, trademarks and patents of their respective companies. All other brand names, trademarks, registered trademarks and patents are the property of their respective owners.
