INSTALLATION INSTRUCTIONS

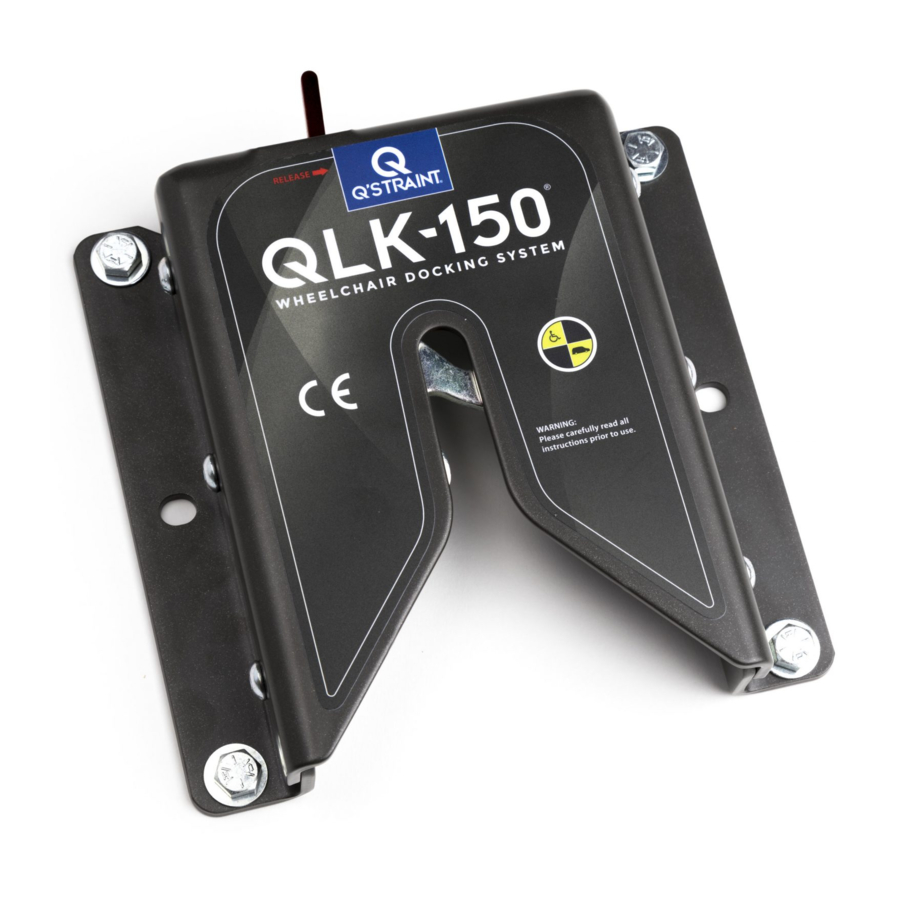

• This is a comprehensive step-by-step instruction guide on how to install the QLK-150 KITE Wheelchair Bracket.
• Make sure to read, understand and follow all these instructions.
• To address any questions contact the nearest Q'Straint® office.
• All deviations and alterations from these instructions MUST be reported to both your supervisor and Q'Straint®.
• For installation of the QLK Docking system, please refer to the separate Installation Instructions and the Use and Care Manual.
• All equipment and components MUST be installed and serviced
by an experienced and trained technician.
• The QLK-150 Wheelchair Docking System complies with all
applicable requirements of ADA, FMVSS, CMVSS, SAE J2249,
CSA Z604, AS2942, ISO 10542-1 and ANSI/RESNA WC-4
SECTION 18.
• This System is a complete integrated system, do not alter or
modify it in any way and do not interchange or substitute any
components. Any deviation from these recommendations is the
responsibility of the installer.
• The QLK-150 Docking System, bracket and its components
MUST be regularly inspected, cleaned and maintained.
• Do NOT attempt to repair, adjust, or modify any component(s) of
the QLK-150 system or bracket without consulting a Q'Straint®
representative.
• The QLK-150 Wheelchair Docking System should not be
operated by anyone who does not have full comprehension of
how the System works or if the System is not working properly.
• The QLK-150 Wheelchair Docking System, bracket and all
system components including floor and wall anchorages MUST
be replaced after a vehicle collision
• The QLK-150 Wheelchair Docking System MUST be installed
with a compliant occupant restraint system (shoulder and lap
belt).
Q5-1150-KITE
READ ALL INSTRUCTIONS PRIOR TO INSTALLATION
IMPORTANT SAFEGUARDS AND WARNINGS
SAVE THESE INSTRUCTIONS
• Broken and worn components MUST be replaced.
• All damages and defects MUST be reported to both your
supervisor and Q'Straint®.
• Only use Q'Straint® components with this system, including
hardware and wheelchair interface bracket unless otherwise
stated.
• Q'Straint wheelchair brackets and QLK docking station have
been designed and tested as a system, for use with specific
wheelchairs.
• Q'Straint supplies all the components/hardware required to
install the system so the configuration is the same as that tested
and set out in the individual installation instructions.
• Occasionally, wheelchairs may have additional components
installed which are not detailed in our installation instructions
and which may need to be temporarily removed in order to
gain access to fixing holes or support frames to enable the
attachment of the wheelchair bracket.
• It is the responsibility of the installer to ensure that all such
wheelchair component(s) are put back in their original location
using the original fixings or fixing of the same size and grade.
• Each wheelchair should be test driven after fitment of the
bracket, to ensure it is functioning correctly.
