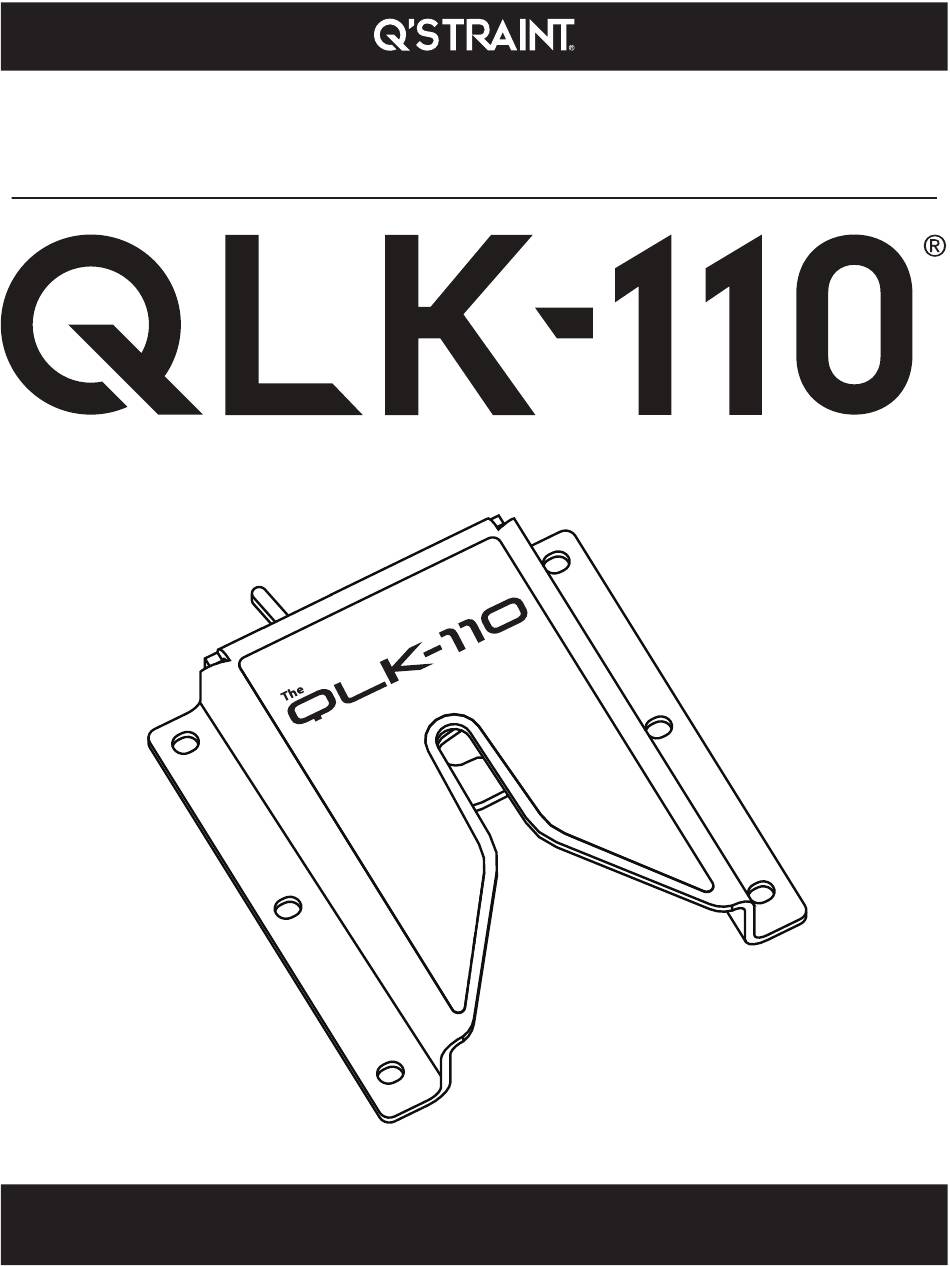

- Page 1 W H E E LC H A I R D O C K I N G S TAT I O N THE QLK-110 WHEELCHAIR DOCKING STATION COMPLIES WITH ALL APPLICABLE REQUIREMENTS OF: ADA, FMVSS, CMVSS, SAE J2249, CSA Z604, AS2942, ISO 10542-1 AND ANSI/RESNA WC-4 SECTION 18.
- Page 2 © 2014 Q’Straint®. All Rights Reserved. QLK™ is a registered trademark of Q’Straint®, Inc.
-
Page 3: Table Of Contents
SYSTEM FUNCTIONS ................7 Read All Instructions Prior to Operating • This manual is a comprehensive step-by-step user instruction guide for the QLK-110 Wheelchair Docking Station. • Make sure to read, understand and follow all these instructions. • To address any questions relating to ordering parts, operating the Docking Station, troubleshooting, maintenance, service or anything else, contact a Q’Straint®... -
Page 4: Important Safeguards And Warnings
• If no lights illuminate on the Dash Control Panel when the ignition is turned on, DO NOT use the QLK-110 Wheelchair Docking Station. • A Stabilizer MUST be used with the QLK-110 Wheelchair Docking Station if this station is being used for a driver application and recommended for all other applications. -
Page 5: Introduction
Built to Last The QLK-110 Wheelchair Docking Station is constructed out of high quality, heat treated, and anti-corrosive metal—designed with micro switch protection. Our durable wheelchair brackets offer occupants the right choice for their wheelchair securement. Secured on the Road We are involved in all major international safety committees to assist in developing and improving wheelchair and occupant safety standards. -
Page 6: Equipment And Part Numbers
5. Wiring Harness (not shown) 8. Buzzer (not shown—steady audio beep) (part# QS00088) 6. Remote Manual Cable Release (Optional) (not shown) (part# Q04F0013) THEORY OF OPERATION QLK-110 Wheelchair Docking Station with Stabilizer Reference the Operating Instructions Section in this manual for complete instructions. -
Page 7: System Functions
SYSTEM FUNCTIONS AUXILIARY FUNCTIONS DOCKING SYSTEM DASH CONTROL PANEL BUZZER RELEASE SWITCH Locking Pawl Vehicle OFF and Docking Station All LED Lights are Off Unlocked Unlocked (next # 7) Vehicle OFF and Docking Station Locking Pawl Solid Green Light is On Locked (next # 3) Locked Press Release Button on... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS SECURING WHEELCHAIR Driver Application 1. With Vehicle OFF, the wheelchair occupant enters the vehicle and centers the wheelchair in forward facing position Dash Control Panel over the Docking Station (A). If the Locking Pawl is locked, press the Release Button on the Dash Control Panel or Auxiliary Release Switch (A) the Locking Pawl unlocks, the Buzzer and all LED Other Applications... - Page 9 SECURING PASSENGER 3. Place lap belt over occupant’s hips and buckle (E). 4. Place shoulder belt across occupant’s chest and attach it to lap belt connector (F). Shoulder and Lap Belt must go across occupant’s shoulder and hip, and not be held away from the occupant’s body by wheelchair components.
-
Page 10: Docking Station
TEST DOCKING STATION Dash Panel and Auxiliary Release Switch Are Disabled Auxiliary Release TEST Vehicle ON, wheelchair Docking Station—with secured inside Locking Pawl, Buzzer off, solid Green Docking Bolt Light and LED Button Back Lights illuminated—press Release Button on Dash Control Panel and Auxiliary Solid Green Light On Release Switch, both should work (J). - Page 11 RELEASING WHEELCHAIR With Vehicle OFF, Unlock wheelchair brakes (power on electric chair) (M). With Vehicle OFF, press the Release Button on Dash Control Panel or the Auxiliary Release Switch—the Locking Pawl unlocks, wheelchair is released and all LED lights are off on the Dash Control Panel (N). Immediately move wheelchair back to disengage the Docking Station.
-
Page 12: Power Failure And Emergency Release
POWER FAILURE AND EMERGENCY RELEASE 11. In case of power failure or an emergency, push the Emergency Release Lever. This will unlock the Locking Pawl and release the wheelchair from the Docking Station (R). TROUBLESHOOTING PROBLEM IMAGE ANSWER The Dash Control Panel Call a Q’Straint®... -
Page 13: Maintenance Checklist
MAINTENANCE CHECKLIST The following items should be inspected and serviced by an experienced and trained technician during the scheduled maintenance of the QLK-110 Wheelchair Docking Station. Clean all debris from under the base unit. Clean the latch mechanism with WD-40 then lubricate with light oil such as 3 in1. -
Page 16: Find Your Nearest Authorized Dealer
www.qstraint.com This manual contains current information at the time of printing. Q’Straint® reserves the right to modify systems, components and content without notice. This manual was printed on 30% post-consumer stock using vegetable oil based inks and is 100% recyclable. ©...
