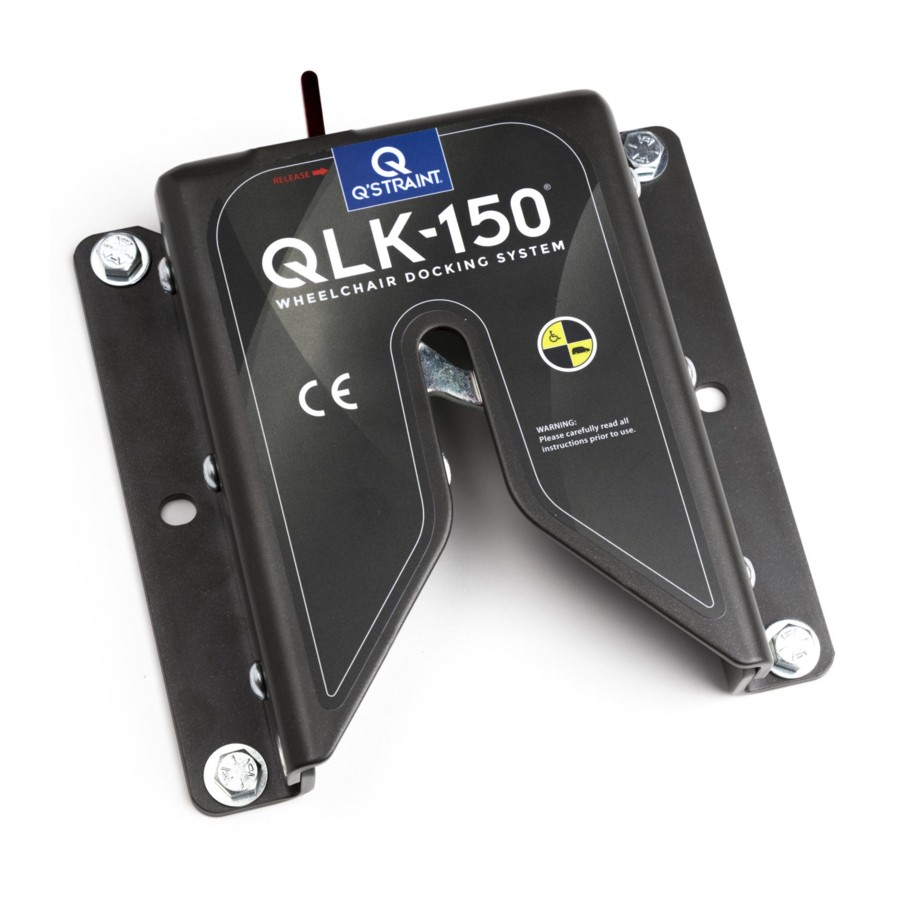

Wheelchair docking station
Hide thumbs Also See for QLK-150:
Table of Contents

Advertisement

Quick Links

Use and Care Manual
W H E E LC H A I R D O C K I N G S TAT I O N
THE QLK-150 WHEELCHAIR DOCKING SYSTEM COMPLIES WITH ALL APPLICABLE REQUIREMENTS OF:
ADA, FMVSS, CMVSS, SAE J2249, CSA Z604, AS2942, ISO 10542-1 AND ANSI/RESNA WC-4 SECTION 18

Advertisement

Table of Contents
loading

Related Manuals for Q'STRAINT QLK-150

Summary of Contents for Q'STRAINT QLK-150

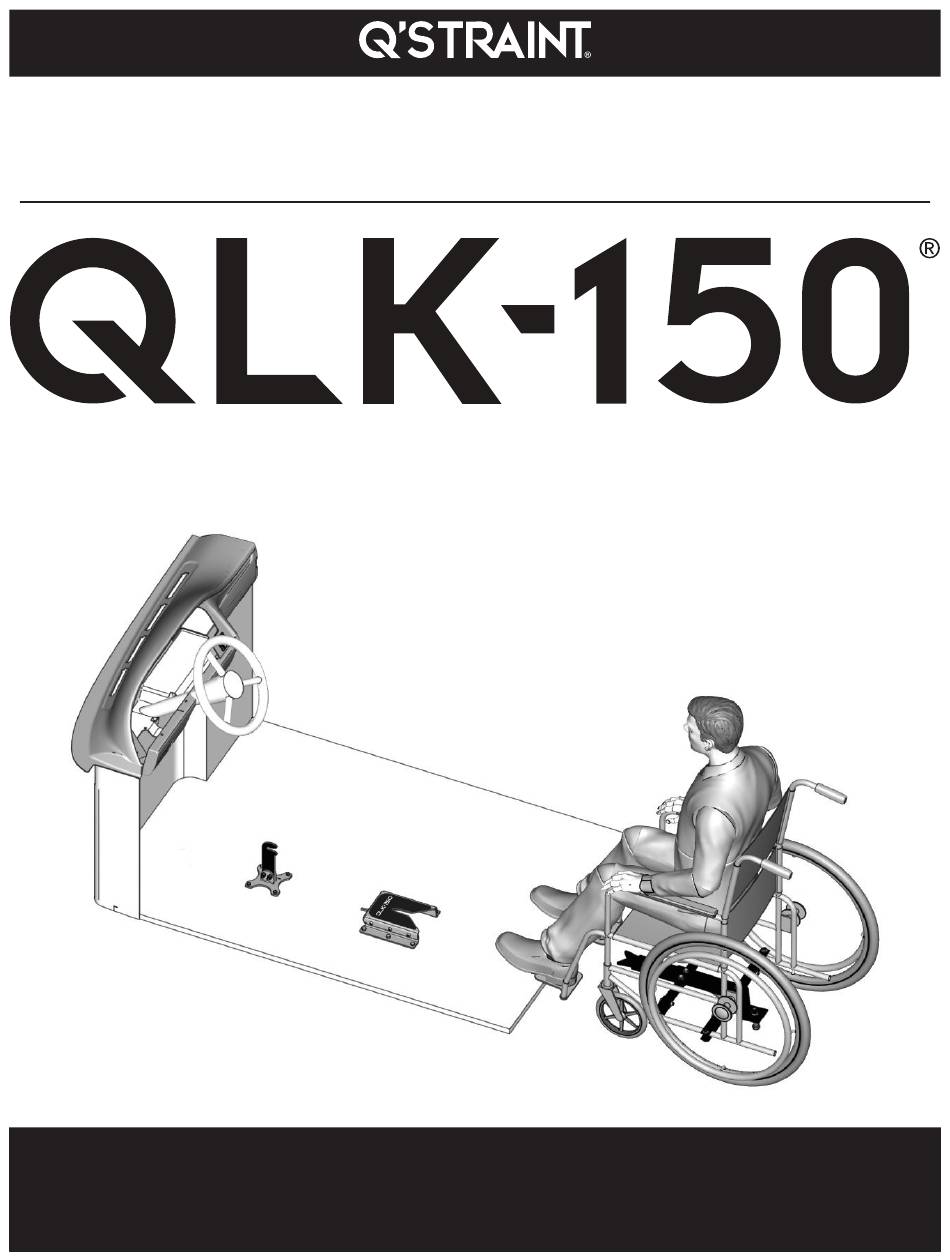

  • Page 1 W H E E LC H A I R D O C K I N G S TAT I O N THE QLK-150 WHEELCHAIR DOCKING SYSTEM COMPLIES WITH ALL APPLICABLE REQUIREMENTS OF: ADA, FMVSS, CMVSS, SAE J2249, CSA Z604, AS2942, ISO 10542-1 AND ANSI/RESNA WC-4 SECTION 18...
  • Page 2 © 2016 Q’Straint®. All Rights Reserved. QLK™ is a trademark of Q’Straint®, Inc. Q’Straint® and Q’Straint® logo are registered trademarks of Q’Straint®, Inc. Products mentioned herein are for identification purposes only and may be registered trademarks or trademarks of their respective companies. All other brand names, trademarks or registered trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    WARRANTY ........................................18 READ ALL INSTRUCTIONS PRIOR TO OPERATING • This manual is a comprehensive step-by-step user instruction guide for the QLK-150 Wheelchair Docking System. • Make sure to read, understand and follow all these instructions. • To address any questions relating to ordering parts, operating the Docking System, troubleshooting, maintenance, service or anything else, contact a Q’Straint®...

  • Page 4: Important Safeguards And Warnings

    IMPORTANT SAFEGUARDS AND WARNINGS • All equipment and components MUST be installed and serviced • Installer is responsible for making sure the installed QLK-150 by an experienced and trained technician. Wheelchair Docking System meets all applicable regulations and standards—and that the system works according to the •...

  • Page 5: Introduction

    BUILT TO LAST The QLK-150 Wheelchair Docking System is constructed out of high quality, heat treated, and anti-corrosive metal—designed with micro switch protection. Our durable wheelchair brackets offer occupants the right choice for their wheelchair securement. SECURED ON THE ROAD We are involved in all major international safety committees to assist in developing and improving wheelchair and occupant safety standards.
  • Page 6 4. Clips (2) and Mutes Buzzer 9. UK Hardware Kit (not shown) (part# Q045111 5. Release Switch (Occupant’s Switch, 4. QLK-150 is Unlocked, Red Light (comes Optional) on for 10 seconds) 10. Remote Manual Cable Release (Optional) (not shown) 6. Fuses (2) 5.

  • Page 7: Theory Of Operation

    THEORY OF OPERATION QLK-150 Wheelchair Docking System with Stabilizer SECURING WHEELCHAIR RELEASING WHEELCHAIR 1. VEHICLE OFF 1. VEHICLE OFF 2. LIGHTS OFF 2. UNBUCKLE SEATBELTS 3. ENTER QLK 3. UNLOCK OR POWER ON CHAIR 4. SECURED IN QLK 5. GREEN LIGHT ON 4.

  • Page 8: System Functions

    SYSTEM FUNCTIONS AUXILIARY FUNCTIONS DOCKING SYSTEM Dash Control BUZZER RELEASE SWITCH Locking Pawl Vehicle OFF and Docking System All LED Lights are Off Unlocked Unlocked (next # 7) Vehicle OFF and Docking System Locking Pawl Solid Green Light is On Locked (next # 3) Locked Press Release Button on...

  • Page 9: Watch Operating Video

    OPERATING INSTRUCTIONS Watch QLK Video, Scan QR Code: or Follow Web-Link: youtu.be/izUFVliQ6Fc SECURING WHEELCHAIR Driver Application 1. With Vehicle OFF, the wheelchair occupant enters the vehicle and centers the wheelchair in forward facing position over the Docking System (A). Dash Control Other Applications Auxiliary Release Switch If the Locking Pawl is locked, press the Release Button on...
  • Page 10 SECURING WHEELCHAIR 2. With Vehicle OFF, move wheelchair forward and engage the 5/8” (15.88mm) Docking Bolt into the Docking System—Locking Pawl locks and wheelchair is secured (C). Make sure the Docking Bolt is secured inside the Docking System—Locking Pawl is locked, solid Green Light on the Dash Control is illuminated and steady audio beep is off Docking Bolt (D).
  • Page 11 SECURING PASSENGER 3. Place lap belt over occupant’s hips and buckle (E). 4. Place shoulder belt across occupant’s chest and attach it to lap belt connector (F). Shoulder and Lap Belt must go across occupant’s shoulder and hip, and not be held away from the occupant’s body by wheelchair components.
  • Page 12 SECURING PASSENGER DO NOT accidentally push the Manual Release Lever while the vehicle is on or in motion because it will open the Locking Pawl and release the wheelchair (H). TEST DOCKING SYSTEM TEST DOCKING System Docking Bolt With Vehicle ON, wheelchair secured inside Locking Pawl, Buzzer off, solid Green Light illuminated—press Release Button on Dash Control and Auxiliary Release Switch, both...
  • Page 13 RELEASING PASSENGER 6. Turn Vehicle OFF, disconnect shoulder belt and place in storage (K). 7. Unbuckle lap belt and place in storage (L).
  • Page 14 RELEASING WHEELCHAIR 8. With Vehicle OFF, Unlock wheelchair brakes (power on electric chair) (M). 9. With Vehicle OFF, press the Release Button on Dash Control or the Auxiliary Release Switch; the Locking Pawl unlocks, Red LED Light comes on for 10 seconds, wheelchair is released and all LED lights are off on the Dash Control (N).
  • Page 15 RELEASING WHEELCHAIR If the wheelchair does not disengage the Docking System immediately after Locking Pawl opens, the Locking Pawl will lock up again after 10 seconds (P). If this happens repeat step 9. Locking Pawl Locks After 10 Seconds 10. With Vehicle OFF, occupant maneuvers out of the Docking System and vehicle (Q).

  • Page 16: Optional Manual Release Control

    OPTIONAL MANUAL RELEASE CONTROL 1. If the Release Handle Loop is facing up, pulldown the Manual Release Handle to release the wheelchair from the Docking System (R). Do NOT pulldown the Manual Release Handle while vehicle is in motion, for it will release the wheelchair. 2.

  • Page 17: Troubleshooting

    TROUBLESHOOTING PROBLEM IMAGE ANSWER The Dash Control Call a Q’Straint® authorized dealer. is not working. All LED Lights are off on the Dash Vehicle needs to be turned ON in order for LED lights to work. Control. The Release Button on the Dash The vehicle needs to be turned OFF in order for the Release Button Control Panel and the Auxiliary and Auxiliary Release Switch to work.

  • Page 18: Preventative Maintenance Checklist

    PREVENTATIVE MAINTENANCE CHECKLIST The following items should be inspected and serviced by an experienced and trained technician during the scheduled maintenance of the QLK-150 Wheelchair Docking System. ❏ ❏ Clean all debris from under the base unit. ❏ ❏ Clean the latch mechanism with WD-40 then lubricate with light oil such as 3-in-1.
  • Page 20 www.qstraint.com This manual contains the most current information at the time of printing. Q’Straint® reserves the right to modify systems, components and content without notice. This manual was printed on 30% post-consumer stock using vegetable oil based inks and is 100% recyclable. ©...
