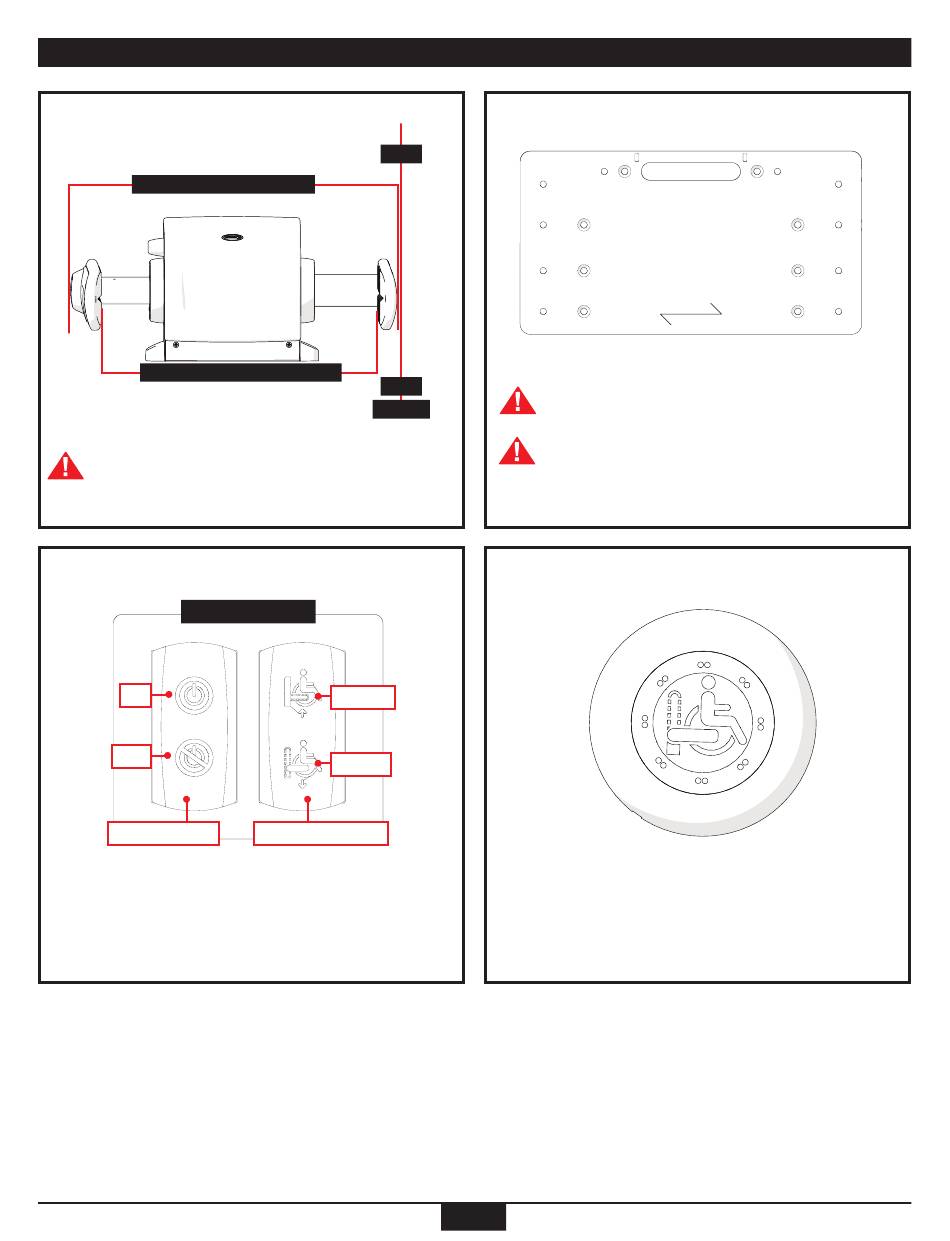

Q'STRAINT QUANTUM Installation Manual page 24

38" (965mm) Fully Extended (Outside)
33.14" (842mm) Fully Extended (Inside)
When Arms are fully extended (38" or 965mm outside
length), the Non-Rotational Arm cannot be closer to the
wall or the thin flip-up theatre seats than .25" (6.35mm).
Driver Interface
ON
OFF
Master Switch
Driver Interface
Near or on driver's console. This however should be
determined by the original equipment manufacturer.
LOCATION RECOMMENDATIONS
Wall
0.25"
(6.35mm)
Release
Secure
Occupant Switch
The Mounting Plate Must be installed on a flat and
durable surface.
The images of the Mounting Plate and Supporting
Plates illustrated in this manual are a representation
of the Basic Plates. The Plates will vary depending on
the Bus Configuration.
Occupant Interface
It should be mounted next to the QUANTUM® Securement
System on the wall or underneath thin flip-up theatre seats.
The occupant must be able to reach it.
