When lifting the product, the lifting point must always
be above the center of gravity to ensure stability.
• Use lifting gear that ensures a vertical lift.
• Use a safety strap around one of the pump motors to prevent
the system from tilting.
Do not stand on the manifolds.
2

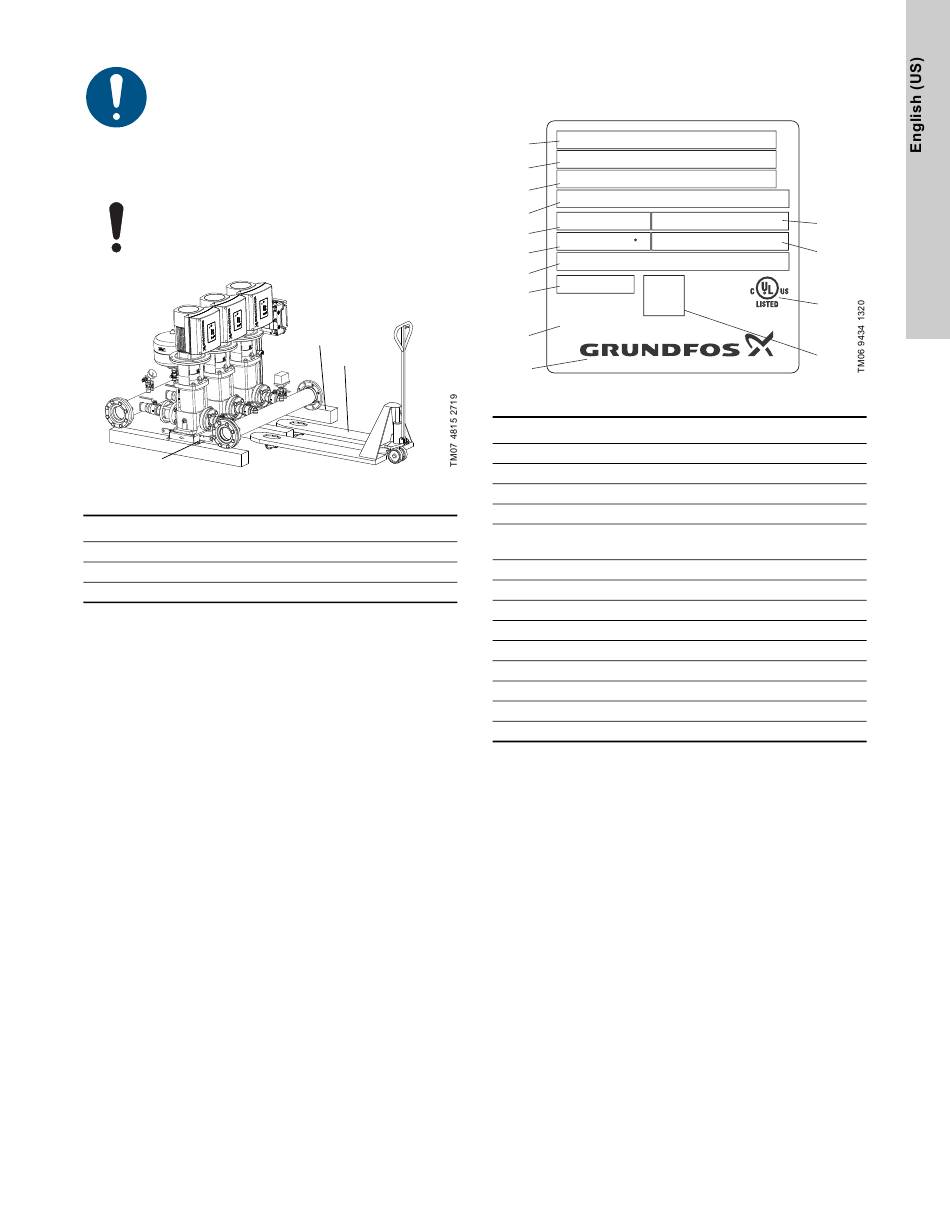

Fig. 2 Lifting a Hydro Multi-E system correctly with a fork lift
Pos. Description
1 Wooden pallet (included)
2 Wood screws (included)
3 Fork lift

5. Identification

5.1 Nameplate

1
3
Type: HYDRO MPC E 3CRE 15-03
1
Model: A 98919308 P1 01 05 52
2
Serial No.: 10000001
3
Mains supply: 3 x 460 V, 60 Hz
4
pMax: 232 psi Q Nom / Max: 277 / 347
5
Liq. temp.: 32-140 F H Nom / Max: 137 / 202
6
Panel PN: 91148011
16
Weight: 1029.6 Ib QR
8
code
ASSEMBLED IN US
9
DK - 8850 - Bjerringbro - Denmark
10
Fig. 3 Hydro Multi-E nameplate
Pos. Description
1 Type designation
2 Model
3 Serial number
4 Supply voltage
Maximum operating pressure in pound per square
5
inch [psi]
6 Liquid temperature
7 Panel part number
8 Weight in pound [lb]
9 Country of origin
10 Company logo
11 Maximum flow rate in gallon per minute (GPM)
12 Nominal head in foot [ft]
13 Approval mark
14 QR code
GPM
11
ft
12
13
Packet Pumping system 38PK
14
