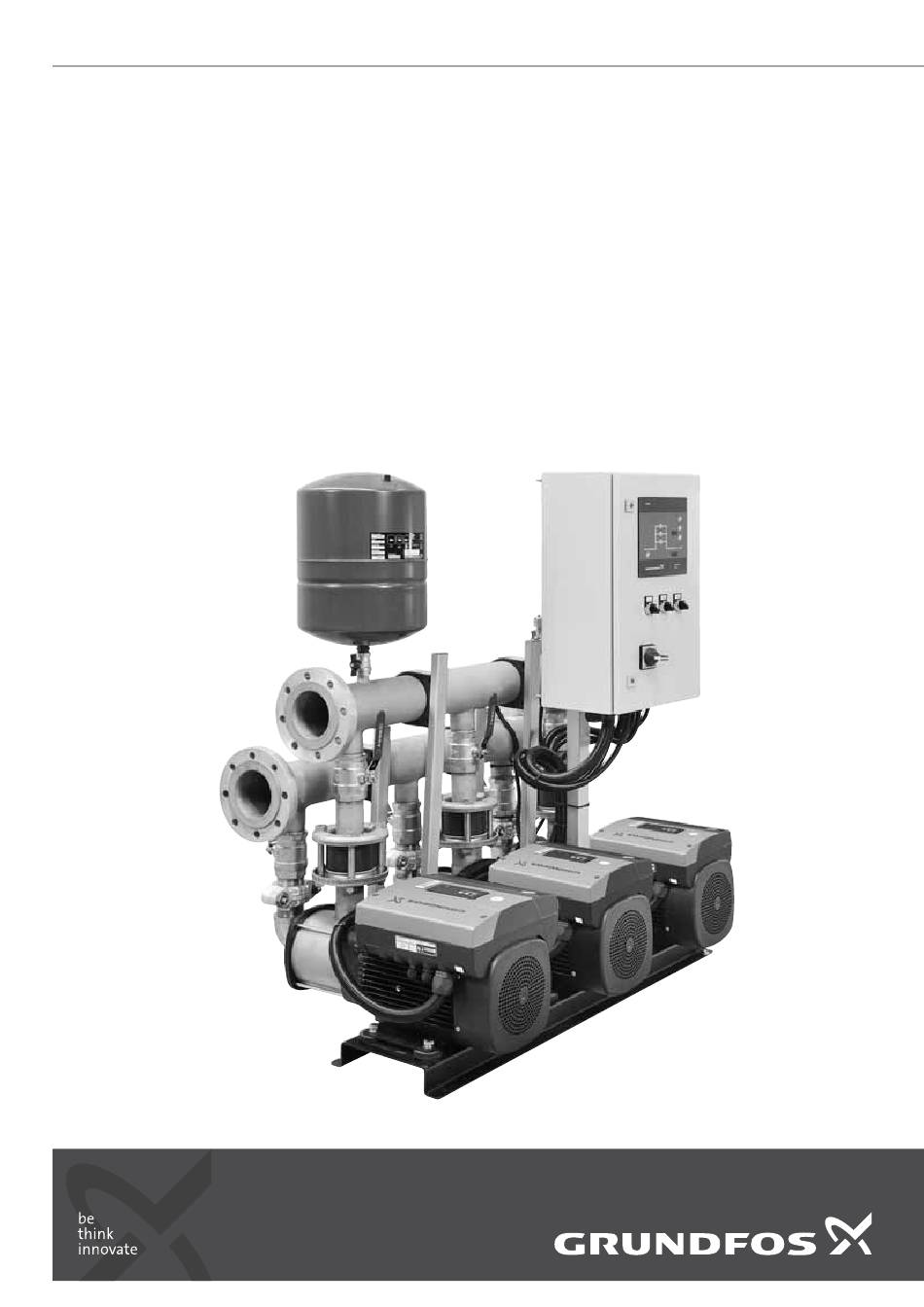

- Page 1 GRUNDFOS INSTRUCTIONS Hydro Multi-B Installation and operating instructions...
-
Page 2: Table Of Contents
Data communication Fault finding 2. Scope of these instructions Maintenance These installation and operating instructions apply to Grundfos 14.1 Pumps Hydro Multi-B booster systems. Hydro Multi-B is a range of 14.2 CU 323 factory-assembled booster systems, ready for installation and Frost protection operation. -
Page 3: Product Description
3. Product description As standard, the booster systems consist of two to four pumps coupled in parallel and mounted on a common base frame with all the necessary fittings and a control cabinet. Fig. 3 Front view of Hydro Multi-B CR booster system Fig. -
Page 4: Application Types
4. Application types The booster systems are available for the following application types: • constant-pressure boosting • tank filling. Furthermore, two control variants of the booster systems are available. The control variants are described below. 4.1 Booster system for constant-pressure applications The booster system for constant-pressure applications is designed to maintain a constant pressure on the discharge side of the pumps. -
Page 5: Booster Systems For Tank-Filling Applications
4.2 Booster systems for tank-filling applications The booster system for tank-filling applications is designed to fill a tank such as a roof tank or a break tank in a controlled manner. The booster system controls the filling either via level switches or a level sensor. -
Page 6: Delivery And Handling
5. Delivery and handling 6. Identification 5.1 Delivery 6.1 Nameplate The booster system is delivered in a recyclable packaging, The nameplate of the booster system is fitted on the base frame. specially designed for transport by fork-lift truck or a similar vehicle. -
Page 7: Type Key
6.2 Type key Example Hydro Multi-B CME 0-8 Type range System variants All pumps E-motor or all fixed-speed pumps with CUE/VFD ES: Fixed-speed pumps, one E-motor or fixed-speed pump with CUE/VFD Number of pumps* Pump type** Voltage code U1: 3 x 380-415, N, PE, 50/60 Hz U2: 3 x 380-415, PE, 50/60 Hz U3: 3 x 380-415, N, PE, 50 Hz U4: 3 x 380-415, PE, 50 Hz... -
Page 8: Installation
7. Installation Warning Installation and operation must comply with local regulations and accepted codes of good practice. Before installation, check the following: • Does the booster system correspond to order? • Are all visible parts intact? 7.1 Mechanical installation 7.1.1 Location The booster system must be installed in a well ventilated room to ensure sufficient cooling of the pumps and the control cabinet. -
Page 9: Electrical Installation
7.1.5 Expansion joints 7.2 Electrical installation Expansion joints are installed with the following purposes: Warning • to absorb expansions/contractions in the pipework caused by The electrical installation must be carried out by changing liquid temperature an authorised person in accordance with local •... -
Page 10: User Interface
8. User interface The booster system incorporates a CU 323 control unit which enables manual setting and monitoring of the system. Figure shows the user interface for a system with four pumps. CU 323 CU 323 AUTO AUTO AUTO AUTO AUTO RESET system run... - Page 11 Pos. Displays Description Measured value Shows the actual, measured value on the discharge side. Proportional setpoint at zero flow, PPS [bar]. PPS is visible if the button is pressed for 4 seconds. RESET Proportional setpoint After the button is released, PPS can be adjusted by the means of the button.
-
Page 12: Startup
9. Startup A positive inlet pressure is required before startup and during operation. Caution Do not start the pumps until they have been fully primed. Warning When pumping hot liquids, ensure that persons cannot accidentally come into contact with hot surfaces of the product. -
Page 13: Operating Modes
10. Operating modes User operation depends on the system mode. The system modes are described in the following sections. 10.1 Local mode, external stop not activated In this mode, the system is locally controlled, and the external stop via digital input is not activated. The flow charts below show examples of how settings can be made. -
Page 14: Remote-Controlled, External Stop Not Activated
10.3 Remote-controlled, external stop not activated In this mode, the system is remote-controlled, and the external stop via digital input is not activated. If local settings are to be changed, follow the flow chart examples below. Keep pressed for 3 seconds See section 10.1 Local mode, external stop not activated... -
Page 15: Functions
S-system. The limit for the minimum inlet pressure in the suction manifold is See section 11.2.5 S-system mode (start/stop a factory-set value which can only be changed by a Grundfos band). service engineer. Time-dependent pump change If the sensor output is below the limit for minimum inlet pressure... -
Page 16: Functions For Constant-Pressure Systems
11.2.5 S-system mode (start/stop band) The status as standby pump alternates between all pumps. Contact Grundfos for further information. S-system mode is only auto-enabled in an ES-system if the CME pump is out of operation due to a fault. -
Page 17: Functions For Tank-Filling Systems
Various CIM modules are available, depending on the type of compensate for flow-dependent dynamic losses. network. See the Hydro Multi-B data booklet or contact Grundfos Maximum flow rate at the selected setpoint. A filter factor can for further information regarding CIM modules. -
Page 18: Fault Finding
Main switch cut out. Cut in the main switch. d) Main switch is defective. Replace the main switch. e) Motor protection is activated. Contact Grundfos. Motor is defective. Repair or replace the motor. g) Pressure transmitter fault: Replace the pressure transmitter. -
Page 19: Maintenance
14. Maintenance 17. Technical data 17.1 Pressure Warning Before starting work on the pumps, make sure Inlet pressure that the power supply has been switched off. A positive inlet pressure is required before Lock the main switch with a padlock to ensure Caution startup and during operation. -
Page 20: Electrical Data
1. Use the public or private waste collection service. Open-circuit voltage 8 VDC ± 15 % 2. If this is not possible, contact the nearest Grundfos company Closed-circuit current 1.7 mA, DC or service workshop. Inputs for PTC sensors are electrically separated... - Page 21 VI: Tuyên bố tuân thủ EC (Hội đồng Châu Âu) A Grundfos declara sob sua única responsabilidade que o produto Chúng tôi - Grundfos - tuyên bố trong phạm vi trách nhiệm duy nhất của Hydro Multi-B booster system, ao qual diz respeito esta declaração, está...
- Page 23 BH-71000 Sarajevo Turkey Siu Wai Industrial Centre Phone: +387 33 592 480 GRUNDFOS Pumper A/S GRUNDFOS POMPA San. ve Tic. Ltd. Sti. 29-33 Wing Hong Street & Telefax: +387 33 590 465 Strømsveien 344 Gebze Organize Sanayi Bölgesi 68 King Lam Street, Cheung Sha Wan www.ba.grundfos.com...
- Page 24 98937586 0715 ECM: 1162157 www.grundfos.com...
