- Page 1 GRUNDFOS INSTRUCTIONS Hydro Multi-B Installation and operating instructions...
-
Page 2: Table Of Contents
Original installation and operating instructions. These installation and operating instructions describe the Read this document before installation. Installation Grundfos Hydro Multi-B booster system. and operation must comply with local regulations and accepted codes of good practice. Sections 1-4 give the information necessary to be able to unpack, install and start up the product in a safe way. -
Page 3: Receiving The Product
2. Receiving the product 2.1 Transporting the product The booster system is delivered in a recyclable packaging, specially designed for transport by forklift truck or a similar vehicle. The forks of the forklift truck must be at least 2 m long. 3. -
Page 4: Electrical Installation
3.2.2 Foundation 3.2.5 Prefilling of diaphragm tank, if applicable Position the booster system on an even and solid surface, for If a diaphragm tank is connected to the system, prefill the tank instance a concrete floor or foundation. The booster system must with nitrogen to a pressure of -0.7 times the setpoint. -
Page 5: Starting Up The Product
4. Set the "Auto-Manual" switch for all pumps to "Manual". The switch is located on the front of the control cabinet. Fig. 4 Correct lifting of Hydro Multi-B with CM and CME 5. Close all pump outlet valves, and prime all pumps. See the pumps installation and operating instructions for the pumps. -
Page 6: Product Introduction

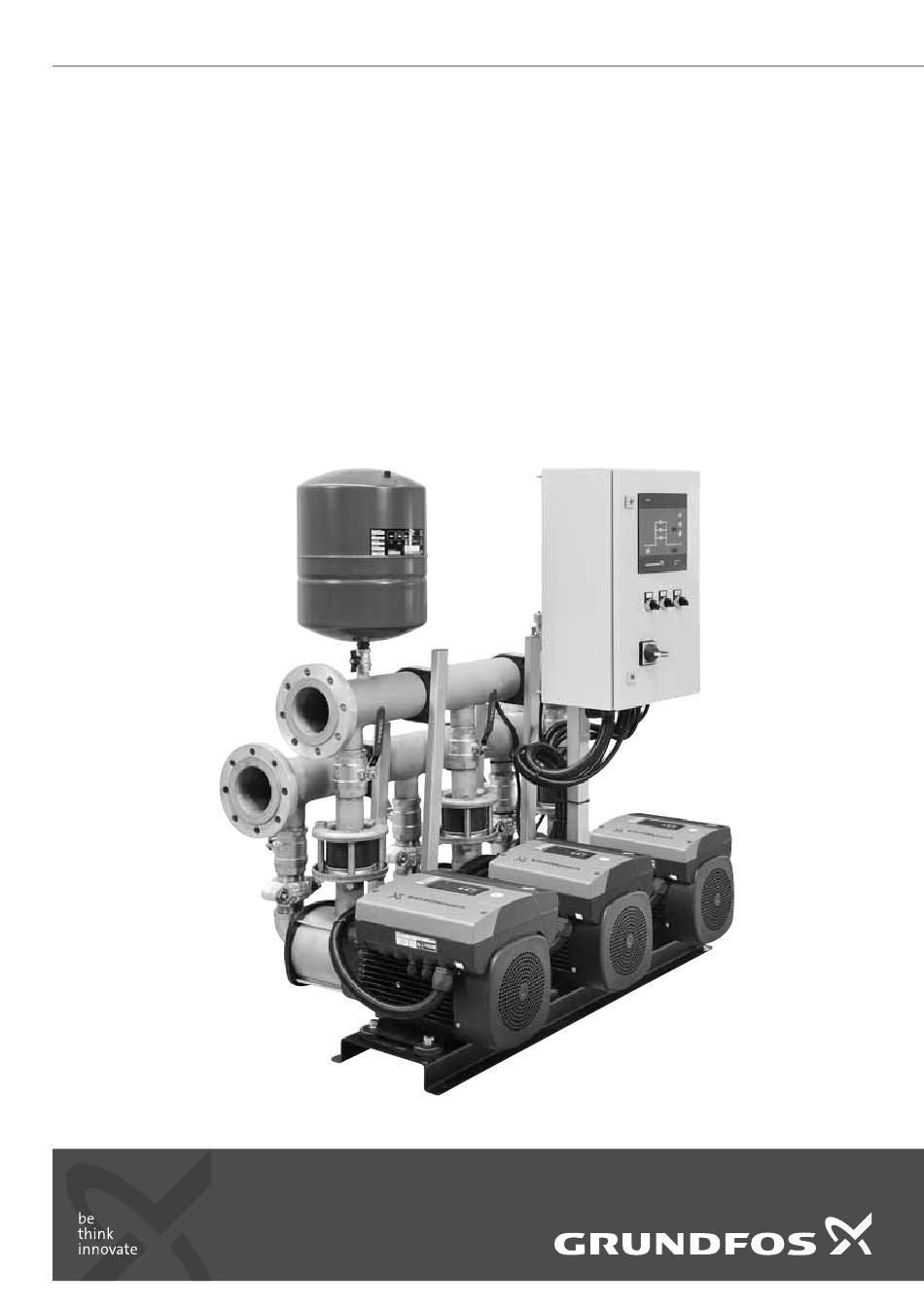

5. Product introduction 5.1 Product description Hydro Multi-B is a range of factory-assembled booster systems, ready for installation and operation. As standard, the booster systems consist of two to four pumps connected in parallel and mounted on a common base frame with a control cabinet and all necessary fittings. - Page 7 5.2.1 Booster system for constant-pressure applications Operating principle The user enters the required pressure of the system (setpoint) via The booster system for constant-pressure applications is the user interface of the CU 323 control unit. CU 323 adjusts the designed to maintain a constant pressure on the outlet side of the system performance according to the feedback received from the pumps.
-
Page 8: Identification
Control variants The booster systems for tank-filling applications are available as control variants E and ES. Both systems work as described below. Control variants E and ES E: Two to four electronically speed-controlled pumps ES: One to three mains-operated pumps and one speed-controlled pump Pump speed 100 % 70 %... - Page 9 CUE or VFD. In these cases, all pumps are fixed-speed pumps. ** Hydro Multi-B, ES systems, are only shown with the E-pump description, meaning that the fixed-speed pumps have the same size, number of stages, material combination and kW.
-
Page 10: Control Unit
6. Control unit The booster system incorporates a CU 323 control unit which enables manual setting and monitoring of the system. Figure shows the user interface for a system with four pumps. CU 323 CU 323 AUTO AUTO AUTO AUTO AUTO RESET system run... - Page 11 Pos. Display Description "Measured value" Shows the actual, measured value on the outlet side. Proportional setpoint at zero flow, PPS [bar]. "PPS" is visible if you press [RESET] for four seconds. After [RESET] has been released, you can adjust "PPS" by means of the arrow up or arrow down buttons.
-
Page 12: Operating Modes
7. Operating modes User operation depends on the system mode. The system modes are described in the following sections. 7.1 Local mode, external stop not activated In this mode, the system is locally controlled, and the external stop via digital input is not activated. The flow charts below show examples of how settings can be made. -
Page 13: Remote-Controlled, External Stop Not Activated
7.3 Remote-controlled, external stop not activated In this mode, the system is remote-controlled, and the external stop via digital input is not activated. If you want to change the local settings, follow the flow chart examples below. Keep the buttons pressed for 3 seconds. See section 7.1 Local mode, external stop not activated... -
Page 14: Adjusting The Proportional-Pressure Setpoint
7.5 Adjusting the proportional-pressure setpoint The function has these purposes: • to compensate for pressure losses Description • to reduce the energy consumption You can only enable this function in pressure-controlled systems. • to increase the comfort for the user. The function automatically adapts the setpoint to the actual flow rate to compensate for flow-dependent dynamic losses. -
Page 15: Functions
The limit for the minimum inlet pressure in the inlet manifold is a pumps is running. This means that the number of running pumps factory-set value which can only be changed by a Grundfos always corresponds to the required flow at the entered setpoint. - Page 16 8.2.3 Maximum pressure exceeded 8.2.6 Proportional-pressure control mode This function protects the piping on the outlet side of the booster The proportional-pressure control mode is only available for system against damaging high pressures. The pressure is E-pump systems. monitored, and if the pressure is higher than 1.5 bar above the Description setpoint for more than 5 seconds, the pumps are stopped, the You can only enable this function in pressure-controlled systems.
-
Page 17: Functions For Tank-Filling Systems
WARNING Various CIM modules are available, depending on the type of Electric shock network. See the Hydro Multi-B data booklet or contact Grundfos for further information regarding CIM modules. Death or serious personal injury - Do not touch the conductors in front of the main 10. -
Page 18: Fault Finding
The main switch has cut out. Cut in the main switch. d) The main switch is defective. Replace the main switch. e) The motor protection has been Contact Grundfos. activated. The motor is defective. Repair or replace the motor. g) The pressure transmitter is defective. -
Page 19: Technical Data
14. Technical data 14.5 Electrical data Supply voltage 14.1 Pressure See the nameplate. Inlet pressure Digital inputs Open-circuit voltage 24 VDC A positive inlet pressure is required before startup Closed-circuit current 5 mA, DC and during operation. Frequency range 0-4 Hz We recommend that you calculate the inlet pressure in these cases: All digital inputs are supplied with PELV voltage... -
Page 20: Related Documents
Service kit catalogue 50/60 96488862 Other documentation * The instructions are only relevant for Hydro Multi-B booster systems, variants E and ES. ** A wiring diagram is supplied with the booster system. 15.1 Service documentation Service documentation is available in Grundfos Product Center under the specific product. - Page 21 Chúng tôi, Grundfos, tuyên bố trong phạm vi trách nhiệm duy nhất của ขอประกาศภายใต ค วามรั บ ผิ ด ชอบของเราแต เ พี ย งผู เ ดี ย วว า ผลิ ต ภั ณ ฑ mình rằng sản phẩm Hydro Multi-B mà tuyên bố dưới đây có liên quan Hydro Multi-B tuân thủ...
- Page 23 Unit 1, Ground floor Turkey Av. Humberto de Alencar Castelo Branco, Siu Wai Industrial Centre GRUNDFOS Pumper A/S GRUNDFOS POMPA San. ve Tic. Ltd. Sti. 29-33 Wing Hong Street & Strømsveien 344 Gebze Organize Sanayi Bölgesi CEP 09850 - 300...
- Page 24 97822771 0617 ECM: 1210752 www.grundfos.com...
