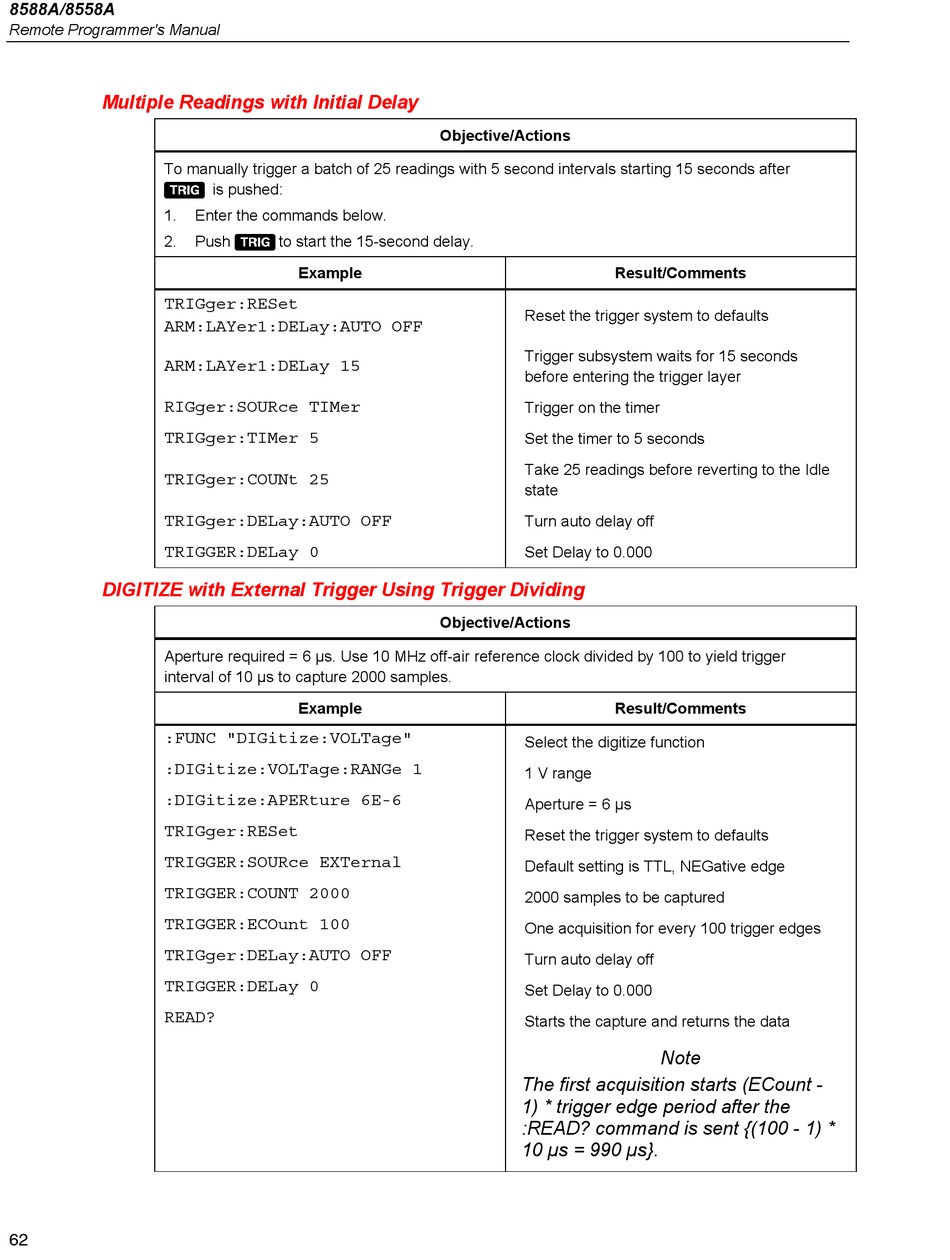

Multiple Readings with Initial Delay

To manually trigger a batch of 25 readings with 5 second intervals starting 15 seconds after
 is pushed:
1.
2.
TRIGger:RESet
ARM:LAYer1:DELay:AUTO OFF
ARM:LAYer1:DELay 15
RIGger:SOURce TIMer
TRIGger:TIMer 5
TRIGger:COUNt 25
TRIGger:DELay:AUTO OFF
TRIGGER:DELay 0

DIGITIZE with External Trigger Using Trigger Dividing

Aperture required = 6 µs. Use 10 MHz off-air reference clock divided by 100 to yield trigger
interval of 10 µs to capture 2000 samples.
:FUNC "DIGitize:VOLTage"
:DIGitize:VOLTage:RANGe 1
:DIGitize:APERture 6E-6
TRIGger:RESet
TRIGGER:SOURce EXTernal
TRIGGER:COUNT 2000
TRIGGER:ECOunt 100
TRIGger:DELay:AUTO OFF
TRIGGER:DELay 0
READ?
62
Enter the commands below.
Push to start the 15-second delay.
Example
Example
Objective/Actions
Result/Comments
Reset the trigger system to defaults
Trigger subsystem waits for 15 seconds
before entering the trigger layer
Trigger on the timer
Set the timer to 5 seconds
Take 25 readings before reverting to the Idle
state
Turn auto delay off
Set Delay to 0.000
Objective/Actions
Result/Comments
Select the digitize function
1 V range
Aperture = 6 µs
Reset the trigger system to defaults
Default setting is TTL, NEGative edge
2000 samples to be captured
One acquisition for every 100 trigger edges
Turn auto delay off
Set Delay to 0.000
Starts the capture and returns the data
The first acquisition starts (ECount -
1) * trigger edge period after the
:READ? command is sent {(100 - 1) *
10 µs = 990 µs}.
