Manual Console - Automatic Technology Axess Pro Series Installation Instructions Manual

Manual Console

The manual console has open, close, stop and set push
buttons. The status of the door is indicated by the LED lights.
The manual console only supports Safety Close mode. In
this mode, the user must press and hold the close button to
close the door. The door can be opened by pressing the
open button once.
NOTE: PE Beams, transmitters or any other device to
control the operation of the shutter is not supported by
the manual console.
Step 5.1 - Setting Travel Limits With Manual
Console
1. Turn on the power to the opener. After a short delay
blue close LED will start to fl ash.
2. Press and hold the CLOSE button
shutter should start closing.
• If the shutter opens, release the CLOSE button
and press the STOP button once to change the
motor's direction. Press and hold the CLOSE
button until close position of the shutter is
reached.
• If the shutter overshoots, press the OPEN button
to move the shutter in the open direction.
3. When the shutter is at the desired close position, press
the SET button to record the close limit position. The
green open LED will start to fl ash.
4. Press and hold the OPEN button
the shutter. When the shutter is at the desired open
position, release the OPEN button
• If the shutter overshoots, press the CLOSE button
to move the shutter in the CLOSE direction.
WARNING! Once the next step is performed, the
shutter will automatically close and open to calculate
travel time settings. Keep persons and objects clear of
the shutter.
5. Press the SET button to store the open limit. The
shutter will now automatically close and open to
calculate the travel time settings.
6. Replace the main cover. The opener can now be
operated with the OPEN or CLOSE buttons on the
manual console.
Step 5.2 - Clearing Travel Limits With Manual
Console
1. Turn power to the opener off.
2. Press and hold the SET Button.
3. Turn power on while holding the SET button.
Continue to hold until all LED's are off.
4. Repeat Steps 5.1 to set travel limit positions.
12 Axess® Pro Series 3100

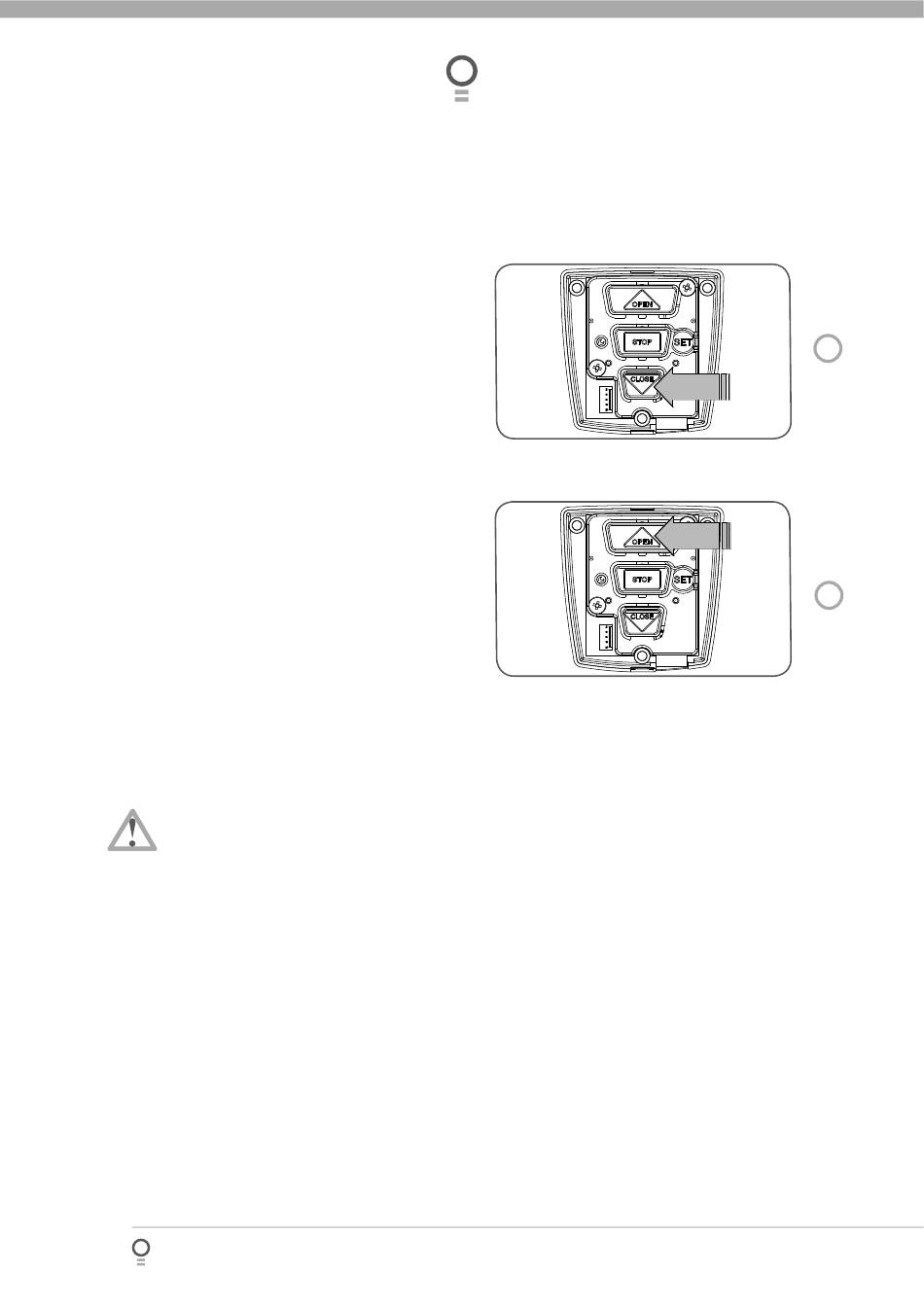

(Fig. 09)- the
