Coding Transmitter
The Axess ® Pro Series 3100 can store 511 transmitters in
its memory. Each transmitter can be allocated an alpha-
numeric ID label up to eleven characters in length and
each button can be assigned to one of several control
functions. The settings for a transmitter are represented in

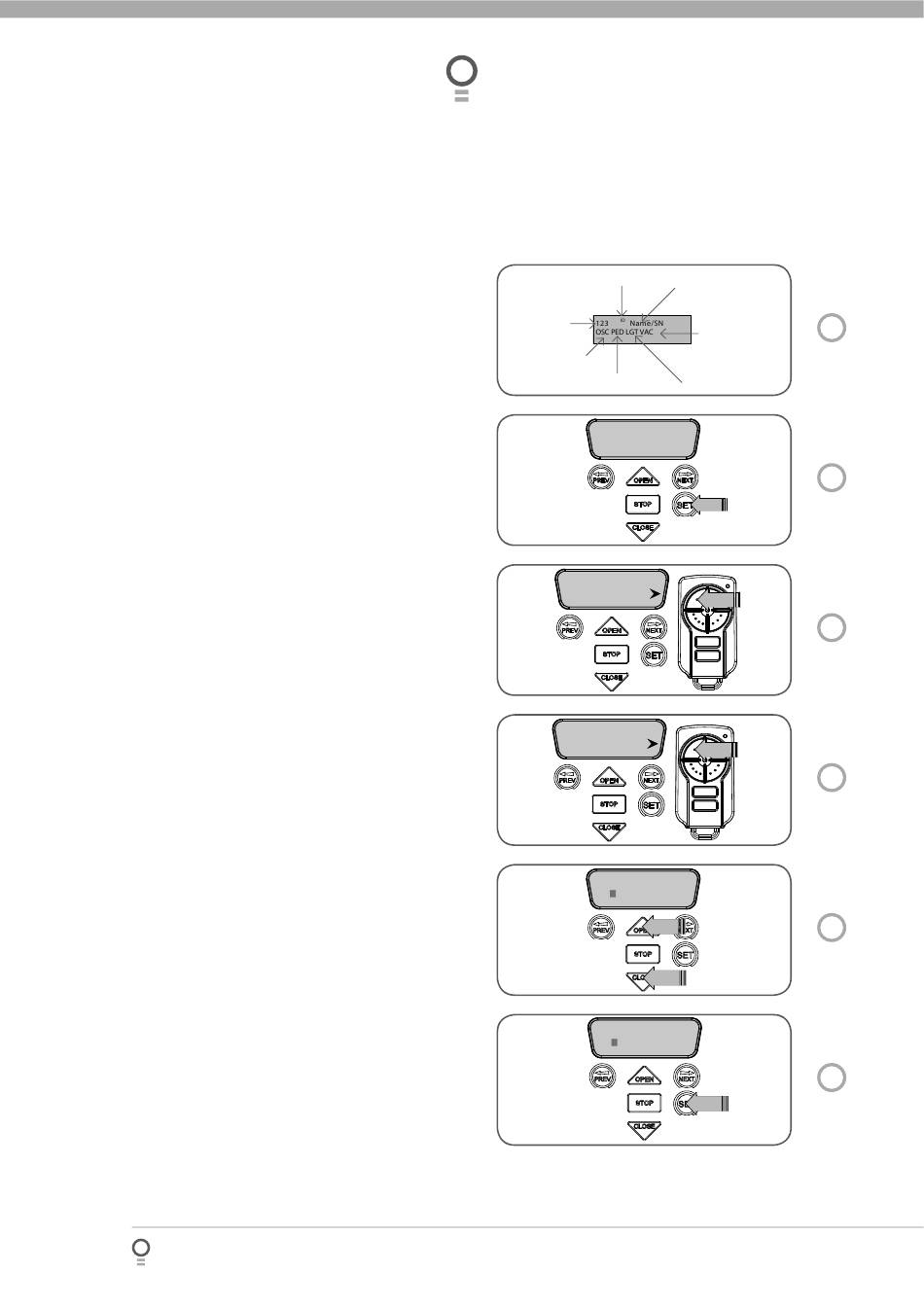

Fig. 20. It shows the transmitter's store number, ID label
or serial number and the functions assigned to each of
the four buttons. To toggle between ID/SN display, press
UP/DOWN with the cursor on the ID/SN indicator. The
procedures below code, delete, replace, edit and copy
transmitter records.
Step 9 - Coding Transmitter Button
Navigating To Menu 1 "Code Transmitter"
1. Press NEXT to navigate to Menu 1
2. Press SET to enter the code set procedure.
Storing Transmitter Code
1. The logic console will prompt to press one of the
transmitter's buttons.
2. Press the transmitter button you wish to use to
operate the opener (e.g. button 1)
3. Press the same transmitter button again as prompted
by the display
Selecting Function Of The Button
The logic console will now show the transmitter's record,
with a cursor on the fi eld for the button being coded
(Fig. 24). Use OPEN/CLOSE to select the function for
the button.
Available functions:
OSC (Open/Stop/Close)
PED (Pedestrian access)
SWP (Swipe)
CLS (Close)
OPN (Open)
STP (Stop)
LGT (Courtesy Light)
VAC (Vacation Mode)
AUX (Auxiliary )
OFF (No action)
NOTE: OSC will change to OS and CLS (Close) function
is not available in the case where PE Beams are not
installed.
Press SET to save the settings or STOP to abort without
saving (Fig. 25).
Returning To Main Screen
The "Code Transmitter" menu will now be shown. Press
STOP to return to the MAIN SCREEN and test the
transmitter.
NOTE: To edit the other settings, refer to transmitter
edit procedure.
18 Axess® Pro Series 3100
(Fig. 21).
(Fig. 22) .
(Fig. 23).
Owner Installation Instructions
ID/SN display indicator
Store number
Button 1 function
Button 2 function
MENU 1
Code Transmitter
Press Tx'er
Button! List
Press Tx'er
Again! View
# 1 [No Name]
OSC OFF OFF OFF C
PRESS
PRESS
# 1 [No Name]
OSC OFF OFF OFF C
I.D label/Serial number
fi g 20
Button 4 function
Button 3 function
fi g
21
PR E S S
PR E S S
fi g 22
PR E S S
fi g 23
fi g 24
fi g 25
PRESS
