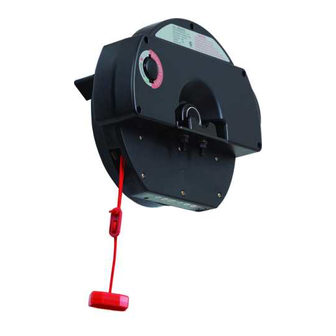

- Page 1 GDO-8v1 EasyRoller ® Weather Resistant Roll Up Door Opener INSTALLATION INSTRUCTIONS | OWNERS COPY...
- Page 2 Automatic Technology Australia Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an Automatic Technology Australia Pty Ltd Roll Up Garage Door Opener.
-
Page 3: Table Of Contents
GDO-8v1 EasyRoller ® Roll Up Garage Door Opener Safety Warnings Product Features Operating Controls Package Contents Side Room Requirements Fixing Weight Bar Fitting Locking Bar Covers Mounting The Opener Fixing Curtain To Drum Setting Limits Via Control Panel Setting Limits Via Transmitter Setting Obstruction Force Margin (ISS) Re-Calculating Force Margin Sensitivity Coding Transmitters... -
Page 4: Safety Warnings
Photo Electric (P.E.) Beam. In most countries P.E. Beams are mandatory on all garage doors fi tted with automatic openers. For a small additional outlay Automatic Technology recommends that P.E. Beams be installed with the EasyRoller® II ensuring additional safety and peace of mind. - Page 5 If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualifi ed person. Make sure that the door is fully open before driving in or out of the garage and fully closed before leaving the driveway.
-
Page 6: Product Features
Features Thank you for purchasing the Automatic Technology EasyRoller® II Automatic Garage Door Opener. Designed by our renowned engineers to suit vertical operating continuous curtain roll up doors, the EasyRoller® will provide years of smart, simple & secure convenience to your home. - Page 7 Lockable control panel The control panel can be locked and disabled to prevent tampering. This is useful if the opener is to be mounted on an exposed carport or a perimeter door. Locking the control panel will prevent operating the door via the Operate button, reprofi...
-
Page 8: Operating Controls
Operating controls Prog input is used for the connection of the Automatic Technology PG-3 Universal Programmer for the purpose of editing control and receiver functions. P.E. Shunt The shunt has to be removed when connecting a Photo Electric (P.E.) Beam. NOTE: THE P.E. Shunt must not be removed otherwise the opener will not function correctly. - Page 9 Operating controls Owner Installation Instructions GDO-8v1 EasyRoller® II...
-
Page 10: Package Contents
Package contents GDO-8 Easyroller® drive unit PTX-4 SecuraCode® keyring transmitter Alkaline battery A23 12V Weight bar (not included in some models) Pan head screw M4x50mm (not included in some models) Nilock hex nut M4 (not included in some models) Flat washer I.D. x ½... -
Page 11: Side Room Requirements
Before installation IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION Warning: Incorrect installation can lead to severe injury. Follow ALL instructions. Side Room Requirements Fig. 01 shows the minimum and recommended side room that is required to mount the opener. The distance between the edge of the door curtain and the inside of the bracket must be at least 40mm. -
Page 12: Mounting The Opener
Mounting the opener 4. Fixing drive unit to the door The EasyRoller® can be fi xed to the roll up garage door Remove U bolt in a variety of ways. Described below is one method of fi xing. Make sure there is enough side room to slide the drive assembly onto shaft. -
Page 13: Fixing Curtain To Drum
Setting limits 5. Fixing of door curtain to drumwheel Drum wheel The door curtain has to be secured to the drum wheel with suitable fasteners. This prevents unauthorised access through the door by pushing the curtain up and off the drum. 1. -
Page 14: Setting Limits Via Transmitter
Setting limits 6.3 Setting limits via remote control PLEASE NOTE: The opener is factory preset for installation on the RIGHT HAND SIDE. When the opener fi g is mounted on the left side of the door the opener will travel in reverse. 1. -
Page 15: Setting Obstruction Force Margin (Iss)
Setting safety obstruction force 8. Safety obstruction test Please take care when testing the Safety Obstruction Force. Due to Excessive forces failure to follow this warning may cause SERIOUS fi g PERSONAL INJURY and/or property damage. The test below should be repeated at regular intervals (approximately every two months). -
Page 16: Coding Transmitters
Coding transmitters IMPORTANT NOTE: The door must be activated when the step below is performed. The moving door confi rms that the correct button was pressed and the transmitter was in range of the opener. fi g 1. Take any pre-coded transmitter. Press the button for Press and hold the function you require until the door is activated Door Code button... -
Page 17: Connecting Photo Electric Beam
13. Fitting the Photo Electric (P.E.) beam sensor (optional) Locate the P.E. Beam in a strategic location within doorway. Automatic Technology recommends 150mm above the fl oor level and as close as possible to the door opening, inside the garage. Remove shunt from P.E. -
Page 18: Door Status Indicators
Parameters Door Status Indicators Door Opener State Open LED Close LED Door Status Beeper Green LED yellow Open Close Opening Flashing Closing Flashing Door travel stopped Flashing Door obstructed when Flashing opening Door obstructed when closed Flashing Beeps while door is moving Opener overloaded Alternating fl... -
Page 19: Factory Default Settings
Default settings & specifi cations Factory Default Settings Default Step Maximum Maximum motor run time 30 seconds Obstruction force margin Technical Specifi cations Input: 230v. - 240v AC 50Hz Controller voltage: 24v. DC Standby power: 2.8W Motor power: 100W Operating temperature +5°... -
Page 20: Trouble Shooting Guide
In such an instance please contact your Automatic Technology dealer for an alternative frequency replacement kit. As this is not a warrantable situation but an environmental issue charges may apply for the changeover. - Page 21 In such an instance please contact your Automatic Technology dealer for an alternative frequency replacement kit. As this is not a warrantable situation but an environmental issue charges may apply for the changeover.
-
Page 22: Parts List
Spare parts list GDO-8v1 EasyRoller® II Owner Installation Instructions... -
Page 23: Warranty
©January 2007 Automatic Technology Australia Pty Ltd. All Rights Reserved. SecuraCode® and EasyRoller® are registered trademarks of Automatic Technology Australia. In an ongoing commitment to product quality Automatic Technology reserve the right to change specifi cations without notice. E&OE. Printed For Export. - Page 24 Automatic Technology Pty Ltd ABN 11 007 125 368 6-8 Fiveways Boulevard Keysborough, Victoria 3173 P 1300 133 944 E sales@ata-aust.com.au www.ata-aust.com.au GARAGE DOOR OPENERS | GATE OPENERS | REMOTE CONTROL ACCESS SOLUTIONS...
