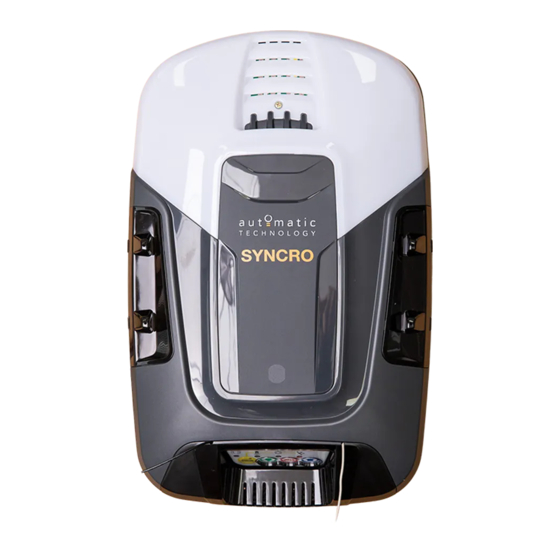

- Page 1 ATS Series Sectional Door Opener Installation Manual TEMPO ATS-2 SYNCRO ATS-3 SECTIONAL DOOR OPENER SMART SECTIONAL DOOR OPENER Doc # 160420_04 Released 22/04/21...
-
Page 2: Table Of Contents
ATS Series Installation Manual Table of Contents Installation Instructions 15. Coding a Transmitter 1. Installation Safety Warnings! 15.1 Storing the Transmitter Code 2. Before you Begin 15.2 Remotely Coding Transmitters 3. Tools Required 15.3 Erasing All Transmitter Codes 4. Kit Contents 15.4 Vacation Mode 15.5 Installation of the Wall Mounted Transmitter 14 5. -
Page 3: Installation Safety Warnings
Disconnect the power cord from mains power before making any repairs or removing covers. Only experienced service personnel should remove covers from the opener. • If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualified person. •... -
Page 4: Before You Begin
ATS Series Installation Manual 2. Before you Begin 2.1 Examine the conditions in the garage: a. Look at the ceiling: i. Is it plastered? The opener is mounted to a perforated angle which MUST be securely fastened to a structural support. You will need to locate the structural beams in the ceiling which are generally 400mm apart. -
Page 5: Kit Contents
ATS Series Installation Manual 4. Kit Contents 1. 1 x ATS drive unit 8. 1 x Door bracket PLUS 2. 1 x Wall mount transmitter 9. 3 x Pin Snap SSP 8 ZNU 31080 15. 2 x Track Bracket 3. 2 x Transmitters and batteries 10. -
Page 6: Fit The Opener
ATS Series Installation Manual 6. Fit the Opener 6.1 Secure C-Rail to Opener: a. Remove the Opener from the box. b. Locate and insert the shaft of drive unit into the C-Rail’s sprocket. c. Fix the two track brackets with four (4) M4 x 8 screws supplied in accessory pack. -
Page 7: Perforated Angle
ATS Series Installation Manual 8. Perforated Angle (Not supplied) 8.1 Attach Perforated Angle (not supplied) or equivalent a. Measure across the ceiling from the centre point 3155mm (+/- 50mm) to find a supporting beam. b. Create a perforated angle which best suits your site. Use a hack saw to cut the L shape metal strips. Secure the perforated angle to a supporting beam using diagrams shown below. -
Page 8: Safety Beam Kit (Ats-3 Only)
ATS Series Installation Manual 10. Safety Beam Kit (ATS-3 Only) WARNING! The Opener must be fitted with Safety Beams if: • the closing force at the bottom edge of the door exceeds 400N (40kg) and/or; • the opener has a smart device fitted to operate the door, when not in line-of-sight. CAUTION! The Safety Beam must be installed and connected before the travel limits are set. -
Page 9: Specifications
ATS Series Installation Manual 11. Specifications Technical Specifications SYNCRO TEMPO ATS-3V2 ATS-2V2 Rated voltage range: 230V - 240V 230V - 240V Rated frequency: 50Hz / 60Hz 50Hz / 60Hz Rated power input: 225W 165W Door opening: Maximum Door Area: Maximum Door Weight: 236kg* 200kg* Door must be well balanced and able to... -
Page 10: Setting Limits
ATS Series Installation Manual 12. Setting Limits CAUTION! Limit setup is not available when running on battery backup Refer to Appendix G for setting limits via a transmitter. NOTE - Speed of the opener can not be adjusted when using this method. 12.1 Set the Limit Positions and adjust drive speed: When setting the Close limit, ensure the position is when the door makes first contact with the ground. -
Page 11: Clearing The Door Limit Positions
ATS Series Installation Manual 12. Setting Limits NOTE: If unhappy with the speed or travel limit setting, restart this procedure by resetting the door limit positions as per below first. 12.2 Clearing the Door Limit Positions Limit positions can be deleted by: a. -
Page 12: Safety Testing
ATS Series Installation Manual 13. Safety Testing 13.1 Test the Close Cycle CAUTION: Take care when completing a a. Press the OPEN button or transmitter button to open the door safety test. Failure to follow this warning (If the door starts closing, press the transmitter button to stop the can result in serious personal injury and/or door, then press transmitter again to open). -
Page 13: Auto-Close & Accessories
ATS Series Installation Manual 14. Auto-Close & Accessories 14.1 Auto-Close Auto-Close mode is a function that automatically closes the door after a pre-set time. Safety beams must be installed in order to run the Auto- Close function. There are two types of Auto-Close available: i. -
Page 14: Coding A Transmitter
ATS Series Installation Manual 15. Coding a Transmitter BUTTON 15.1 Storing the Transmitter Code TRANSMITTER The opener can only be operated from remote control FUNCTION transmitters that have been programmed into its memory. Up to 64 codes can be stored in the memory. HOLD Open / Stop / Close a. -
Page 15: Smart Phone Control (Ats-3 Only)
ATS Series Installation Manual 16. Smart Phone Control (ATS-3 Only) This device allows for operation of the door when not in line-of-sight of the door and opener. The door may operate unexpectedly, therefore do not allow anything to stay in or near the path of the door. -
Page 16: Home Owner Safety Warnings
ATS Series Installation Manual 17. Home Owner Safety Warnings! This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage. -
Page 17: Opener Safety & Security
ATS Series Installation Manual 18. Opener Safety & Security 18.1 Your Door CAN NOT be used by the opener when: WARNING! When operating the manual a. There is a locking device installed. release (while the door is open) the door b. -
Page 18: User Operating Controls
ATS Series Installation Manual 20. User Operating Controls Button Function 1. DOWN ARROW (Blue) Closes the door 2. DOWN ARROW LED (Blue) Illuminates when the door is closed and flashes when the door is obstructed on close or stopped. 3. STOP (Red) Stops the door 4. -
Page 19: Troubleshooting
ATS Series Installation Manual 21. Troubleshooting Symptom Possible cause Remedy The opener does not Garage door in poor condition e.g. Check the door’s operation work from the transmitter springs may be broken The opener does not have power Plug a device of similar voltage (e.g. a hairdryer) into the power point and check that it is OK The battery in the transmitter is flat Replace the battery... - Page 20 ATS Series Installation Manual 21. Troubleshooting Main Light = Service / Warning Indicator: Requirements for a service and user warnings are indicated after operation by the main light repeatably flashing OFF a number of times followed by a pause. When the alert is first triggered the beeper will also sound The below table identifys the issues and remedies.
-
Page 21: After Installation Care
ATS Series Installation Manual 22. After Installation Care 22.1 Service Checklist Preventative servicing of your garage door and opener, is WARNING! Failure to maintain your just as important as servicing your car. Much like the engine garage door voids the warranty on your of your car, your garage door is made up of numerous garage door opener. -
Page 22: Battery Replacement
When batteries reach the end of their usual life in accordance with Australian Battery Recycling Initiative please follow the next simple steps for protecting the environment. Refer to the Automatic Technology website for information on where to recycle batteries in Australia. -
Page 23: Appendix
ATS Series Installation Manual 23. Appendix A - Status Indication during Operating Mode. LEDs Light Status Indicates BLUE GREEN YELLOW PURPLE DOOR OPEN AND CLOSED LEDS solid Open rapid Open with Autoclose timer running flashing flashing Opening / Obstructed on Open solid Closed flashing... -
Page 24: B - Adjustment Mode Instructions
ATS Series Installation Manual B - Adjustment Mode Instructions a. Press the MODE button repetitively until the GEAR LED starts flashing b. Referring to the table below, select the desired parameter using the OPEN and CLOSE buttons and observing the number of flashes on the GEAR LED. -
Page 25: C - Adjusting Force Margins
ATS Series Installation Manual C - Adjusting Force Margins Adjusting Safety Obstruction Force The Safety Obstruction Force is calculated automatically during setup. Adjusting this is normally only necessitated by environmental conditions such as windy or dusty areas, and areas with extreme temperature changes. -
Page 26: G - Setting Limits Via Transmitter
Automatic Technology office location Head Office 6-8 Fiveways Blvd, Keysborough 3073 Phone (03) 9791 0200 Prefixed trademarks are the property of Automatic Technology (Australia) Pty Ltd ABN 11 007 125 368. © 2020 Automatic Technology Australia Pty Ltd. ata-aust.com.au...
