Summary of Contents for Automatic Technology ATS Series

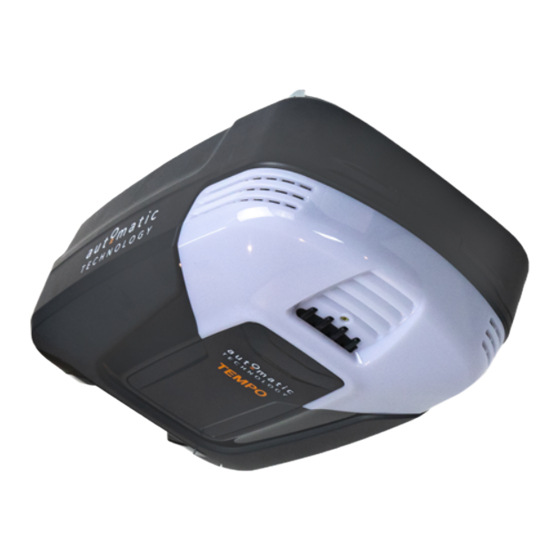

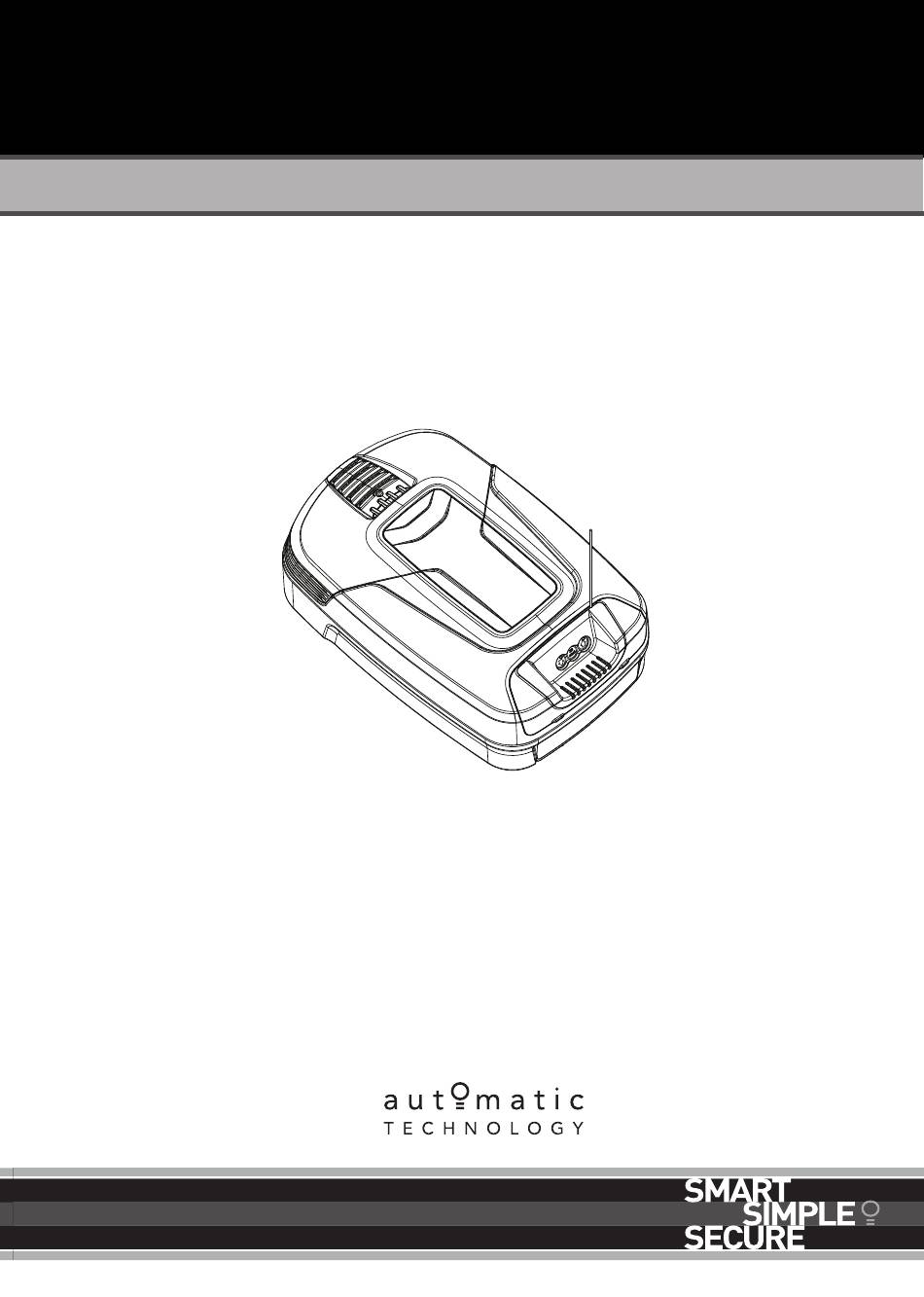

- Page 1 ATS Series Sectional Door Opener Instruction Manual TEMPO ATS-2 SECTIONAL DOOR OPENER Doc # 160091_02 Part # 86296 Released 03/06/19...
-
Page 2: Table Of Contents
ATS Series Instruction Manual Table of Contents Installation Instructions Home Owner Instructions 15. Home Owner Safety Warnings! 1. Installation Safety Warnings! 2. Before you Begin 16. Opener Safety & Security Your Door CAN NOT be used when: 3. Tools Required Your Door CAN be used when: 4. -
Page 3: Installation Safety Warnings
Disconnect the power cord from mains power before making any repairs or removing covers. Only experienced service personnel should remove covers from the opener. • If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualified person. •... -
Page 4: Before You Begin
ATS Series Instruction Manual 2. Before you Begin Examine the conditions in the garage: a. Look at the ceiling: i. Is it plastered? The opener is mounted to a perforated angle which MUST be securely fastened to a structural support. -
Page 5: Kit Contents
ATS Series Instruction Manual 4. Kit Contents 1 x ATS drive unit 8. 1 x Door bracket PLUS 2. 1 x Wall mount transmitter 9. 3 x Pin Snap SSP 8 ZNU 31080 15. 2 x Track Bracket 3. 2 x Transmitters and batteries 10. -
Page 6: Fit The Opener
ATS Series Instruction Manual 6. Fit the Opener Secure C-Rail to Opener: a. Remove the Opener from the box. b. Locate and insert the shaft of drive unit into the C-Rail’s sprocket. c. Fix the two track brackets with four (4) M4 x 8 screws supplied in accessory pack. -
Page 7: Perforated Angle
ATS Series Instruction Manual 8. Perforated Angle (Not supplied) Attach Perforated Angle (not supplied) or equivalent a. Measure across the ceiling from the centre point 3155mm (+/- 50mm) to find a supporting beam. b. Create a perforated angle which best suits your site. Use a hack saw to cut the L shape metal strips. Secure the perforated angle to a supporting beam using diagrams shown below. -
Page 8: Optional Safety Beam Kit
ATS Series Instruction Manual 10. Optional Safety Beam Kit Safety Beams The Safety Beam Kit provides additional safety by preventing the door closing when the beam is blocked by a car, child etc. When the Safety Beam Kit is installed the Auto-close feature can be enabled if required. -
Page 9: Setting Limits
ATS Series Instruction Manual 11. Setting Limits Set the Limit Positions and adjust drive speed: The Limit Positions can vary due to site conditions, such as uneven ground. When setting the Close limit, ensure the position is when the door makes first contact with the ground. Alternatively for the Open limit the position should be at the height of the garage opening. -
Page 10: Safety Testing
ATS Series Instruction Manual 12. Safety Testing CAUTION: Take care when completing a safety test. Failure to follow this warning can result in serious personal injury and/or Test the Close Cycle property damage. a. Press the OPEN button or transmitter button to open the door (If the door starts closing, press the transmitter button to stop the door, then press transmitter again to open). -
Page 11: Coding A Transmitter
ATS Series Instruction Manual 14. Coding a Transmitter Storing the Transmitter Code BUTTON The opener can only operated from remote control transmitters that have been programmed into its TRANSMITTER FUNCTION memory. Up to 64 codes can be stored in the memory. -
Page 12: Home Owner Safety Warnings
ATS Series Instruction Manual 15. Home Owner Safety Warnings! This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage. -
Page 13: Opener Safety & Security
ATS Series Instruction Manual 16. Opener Safety & Security Your Door CAN NOT be used by the opener when: WARNING! When operating the manual a. There is a locking device installed. release (while the door is open) the door b. There is a power failure. -
Page 14: User Operating Controls
ATS Series Instruction Manual 18. User Operating Controls Button Function 1. DOWN ARROW (Blue) Closes the door 2. DOWN ARROW LED (Blue) Illuminates when the door is closed and flashes when the door is obstructed on close or stopped. 3. STOP (Red) Stops the door 4. -
Page 15: Specifications
ATS Series Instruction Manual 19. Specifications Technical Specifications ATS-2 Rated voltage range: 230V - 240Va.c. Rated frequency: 50Hz / 60Hz Rated power input: 165W Door opening: Maximum Door Area: Maximum Door Weight: 200kg* Door must be well balanced and able to be operated by hand, as per... -
Page 16: Troubleshooting
ATS Series Instruction Manual 20. Troubleshooting Symptom Possible cause Remedy The opener does not Garage door in poor condition e.g. Check the door’s operation work from the transmitter springs may be broken The opener does not have power Plug a device of similar voltage (e.g. a hair dryer) - Page 17 ATS Series Instruction Manual 20. Troubleshooting Main Light = Service / Warning Indicator: Requirements for a service and user warnings are indicated after operation by the main light repeatable flashing OFF a number of times followed by a pause. The below table identifys the issues and remedies.
-
Page 18: Maintenance
ATS Series Instruction Manual 21. Maintenance Door Maintenance WARNING! Failure to maintain your A poorly maintained door could cause fatal / serious injuries or damage garage door may void the warranty on to property. your garage door opener. • Frequently examine the door, particularly the cables, springs and mountings for signs of wear, damage or imbalance. -
Page 19: Battery Replacement
When batteries reach the end of their usual life in accordance with Australian Battery Recycling Initiative please follow the next simple steps for protecting the environment. Refer to the Automatic Technology website for information on where to recycle batteries in Australia. -
Page 20: Appendix
ATS Series Instruction Manual 24. Appendix A - Status Indication during Operating Mode. LEDs Light Status Description BLUE GREEN YELLOW PURPLE solid Open DOOR OPEN CLOSED LEDS flashing Open with Autoclose timer running flashing Opening / Obstructed on Open solid... -
Page 21: B - Adjustment Mode Instructions
ATS Series Instruction Manual 24. Appendix B - Adjustment Mode Instructions a. Press the MODE button until the GEAR LED starts flashing b. Referring to the table below, select the desired parameter using the OPEN and CLOSE buttons and observing the number of flashes on the GEAR LED. -
Page 22: E - Setting Limits Via Transmitter
ATS Series Instruction Manual E - Setting limits via Transmitter Button 1 a. Switch power on and the BLUE LED on the CLOSE button (inch Open) Button 2 will start to flash to indicate that the opener is ready to... -
Page 23: Warranty
REGISTER ONLINE TODAY! Register your Product to take advantage of convenient service and support at www.ata-aust.com.au/register This Warranty is given by Automatic Technology (Australia) Pty Ltd (ABN 11 007 125 368) (ATA), 6-8 Fiveways Boulevard, Keysborough 3173, 1300 769 850, sales@ata-aust.com.au.
