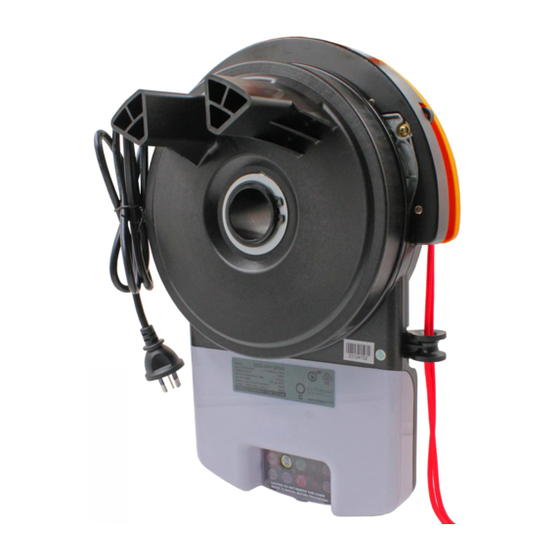

Rolling door opener

Advertisement

EasyRoller
®
GDO-6
R o l l i n g D o o r O p e n e r
Installation Manual
Doc # 160072_04
Released 01/04/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 62717 and is the answer not in the manual?

Questions and answers

Summary of Contents for Automatic Technology 62717

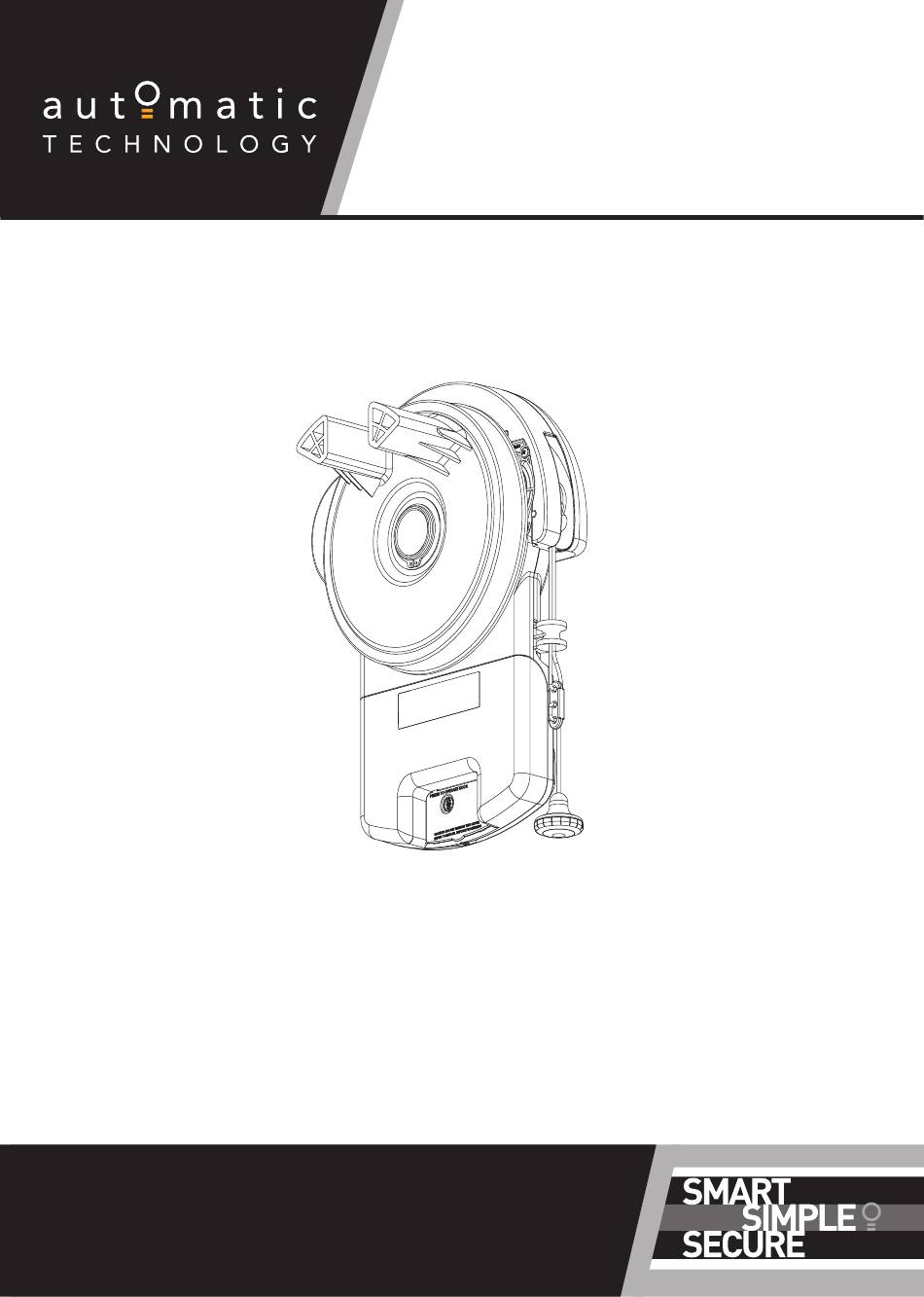

  • Page 1 EasyRoller ® GDO-6 R o l l i n g D o o r O p e n e r Installation Manual Doc # 160072_04 Released 01/04/20...
  • Page 2: Table Of Contents

    GDO-6 EasyRoller Installation Manual Table of Contents Installation Instructions 1. Installation Safety Warnings! 13. Auto-Close 13.1 Safety Beams 2. Kit Contents 13.2 Auto Close Option 3. Tools Required 14. Coding a Transmitter 4. Setup Requirements 14.1 Storing the Transmitter Code 5.
  • Page 3: Installation Safety Warnings

    Disconnect the power cord from mains power before making any repairs or removing covers. Only experienced service personnel should remove covers from the opener. • If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualified person. •...
  • Page 4: Kit Contents

    GDO-6 EasyRoller Installation Manual 2. Kit Contents 1. 1 x drive unit Fastner Bag 2. 2 x Locking Bar Covers 5. 2 x Nilock Nut 3. 2 x PTX-6 Transmitters (GDO-6V4) OR 6. 2 x 3/16 x 1/2 flat washers 2 x PTX-5V2 Transmitters (GDO-6V3) 7.
  • Page 5: Setup Requirements

    GDO-6 EasyRoller Installation Manual 4. Setup Requirements 4.1 The Opener: a. MUST BE installed in a dry position, protected from weather. (Moisture or corrosion not covered by Warranty) b. Is factory set for RIGHT HAND SIDE installation (from inside garage), but capable of LEFT HAND SIDE installation. c.
  • Page 6: Door Preparation

    GDO-6 EasyRoller Installation Manual 5. Door Preparation 5.1 Prepare the Door: a. Clean the guides if there is any oil or wax present using a suitable white spirit. The only lubricant suitable for use on door guides is silicon spray. DO NOT use WD-40, RP-7, petroleum grease, or similar. b.
  • Page 7: Pinning The Door

    GDO-6 EasyRoller Installation Manual 7. Pinning the Door 7.1 Pinning the Door to the drum: Screw into the Pinning the door’s curtain to its drum maintains security when the opener is low part of closed. If the curtain is not pinned the door can be partially opened manually. grove a.
  • Page 8: Mounting The Opener

    GDO-6 EasyRoller Installation Manual 9. Mounting the Opener 9.1 Raising the Door: a. When in position, remove the U-bolt (or bolts) and saddle from the door bracket. b. Lift the door up and away from the wall until clear of the door bracket, before lowering the door to rest on the door stand or prop.
  • Page 9: Setting The Travel Limits

    GDO-6 EasyRoller Installation Manual 10. Setting the Travel Limits 10.1 Initial Preparation: a. Move the door to the half way position. b. Engage the opener by pulling down on the manual release string until a click sounds. c. Remove the clear button cover from the unit. d.
  • Page 10: Safety Testing

    GDO-6 EasyRoller Installation Manual 11. Safety Testing 11.1 Test the Close Cycle CAUTION: Take care when completing a a. Press the OPERATE button to open the door. safety test. Failure to follow this warning b. If the door closes, press the OPERATE button to stop the door, can result in serious personal injury and/or then press OPERATE again to open.
  • Page 11: Accessories

    GDO-6 EasyRoller Installation Manual 12. Accessories GDO-6V4 GDO-6V3 30V PWR 12.1 Auxiliary Output External device, The auxiliary output can be used to control Relay Alarm, Door or PE (OV) alarm or another garage door opener. A valid Gate opener. transmission from the pre-coded transmitter will cause the auxiliary output to pulse for approximately 1 (one) second.
  • Page 12: Coding A Transmitter

    GDO-6 EasyRoller Installation Manual 14. Coding a Transmitter 14.1 Storing the Transmitter Code The opener can only operated from remote control transmitters that have been programmed into its memory. Up to 64 codes can be stored in the memory. a. Press and hold the DOOR CODE button. b.
  • Page 13: Easy Access Transmitter (Eat) Coding

    GDO-6 EasyRoller Installation Manual 14. Coding a Transmitter 14.6 Easy Access Transmitter (EAT) Coding a. Press and hold the DOOR CODE button. b. Press the EAT’s buttonfor two (2) seconds, pause for two (2) seconds, then press the button again for two (2) seconds. c.
  • Page 14: Home Owner Safety Warnings

    GDO-6 EasyRoller Installation Manual 15. Home Owner Safety Warnings! This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage.
  • Page 15: Opener Safety & Security

    GDO-6 EasyRoller Installation Manual 16. Opener Safety & Security 16.1 Your Door CAN NOT be used by the opener when: WARNING! When operating the manual a. There is a locking device installed. release (while the door is open) the door b.
  • Page 16: User Operating Controls

    GDO-6 EasyRoller Installation Manual 18. User Operating Controls Button Function 1. OPERATE Opens/stops/closes the door 2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed 3. LIGHT CODE (White) Is used for storing or erasing the transmitter button (code) you wish to use to switch the courtesy light on the opener on or off.
  • Page 17: Specifications

    GDO-6 EasyRoller Installation Manual 20. Specifications Technical Specifications GDO-6V4 GDO-6V3 EasyRoller ® EasyRoller ® Power supply 230V - 240Va.c. 50Hz 230V - 240Va.c. 50Hz Maximum door opening Door Height: 3.25 turns of the drum wheel 3.25 turns of the drum wheel (approx.
  • Page 18: Troubleshooting

    GDO-6 EasyRoller Installation Manual 21. Troubleshooting Symptom Possible cause Remedy The opener does The opener does not have power Plug a device of similar voltage (e.g. a hairdryer) into not work from the the power point and check that it is OK transmitter The battery in the transmitter is flat Replace the battery...
  • Page 19 GDO-6 EasyRoller Installation Manual 21. Troubleshooting Symptom Possible cause Remedy The SERVICE LED has A Fault has been detected. The fault Record opener function (How many beeps?) then started to flash and will be active each time an attempt is press the SET button once to reset the opener.
  • Page 20: After Installation Care

    GDO-6 EasyRoller Installation Manual 22. After Installation Care 22.1 Service Checklist Preventative servicing of your garage door and opener, is just as WARNING! Failure to maintain your your important as servicing your car. Much like the engine of your car, your garage door voids the warranty on your garage door is made up of numerous moving parts designed to lift and garage door opener.
  • Page 21: Battery Replacement

    When batteries reach the end of their usual life in accordance with Australian Battery Recycling Initiative please follow the next simple steps for protecting the environment. Refer to the Automatic Technology website for information on where to recycle batteries in Australia.
  • Page 22 GDO-6 EasyRoller Installation Manual Automatic Technology office location Head Office 6-8 Fiveways Blvd, Keysborough 3073 Phone (03) 9791 2000 Prefixed trademarks are the property of Automatic Technology (Australia) Pty Ltd ABN 11 007 125 368. © 2020 Automatic Technology Australia Pty Ltd. ata-aust.com.au...

This manual is also suitable for:

Easyroller gdo-6v4Easyroller gdo-6v3Easyroller gdo-6
