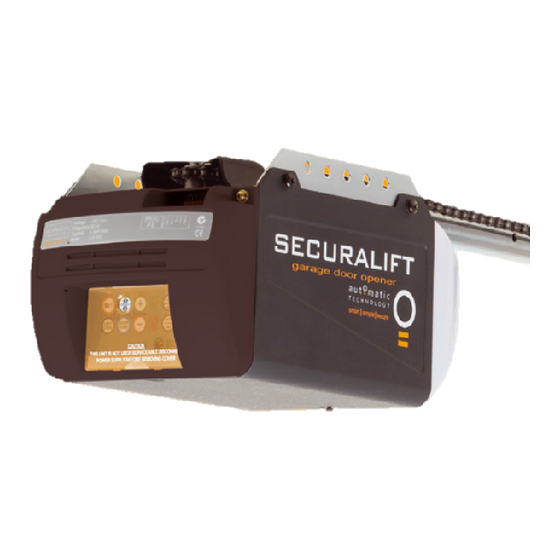

Summary of Contents for Automatic Technology SecuraLift GDO-7V1
- Page 1 GDO-7V1 SecuraLift ® Overhead Garage Door Opener INSTALLATION INSTRUCTIONS | OWNERS COPY...
- Page 2 Automatic Technology Australia Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an Automatic Technology Australia Pty Ltd Garage Door Opener.
-
Page 3: Table Of Contents
GDO-8V1 SecuraLift ® Overhead Garage Door Opener Safety Precautions Opener Features Operating Controls Kit Contents Installation Tube Pipe Assembly Determine Door Type Mounting - Track Type Door Using inbuilt antivibration brackets Mounting - Spring Loaded Door Mounting Door Bracket & Arms Easy Access Transmitter Programming the Opener Setting Travel Limits - Control Pane... -
Page 4: Safety Precautions
Important safety instructions WARNING: It is vital for the safety of persons to follow all instructions. Failure to comply with the following Safety Rules may result in serious personal injury and/or property damage. CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed. This accessory allows manual operation of the garage door from outside in case of power failure. - Page 5 Important safety instructions to water or rain. It is not to be immersed in water or sprayed directly by a hose or other water carrying device. The garage door must be well balanced. Sticking or binding doors must be repaired by a qualified garage door installer prior to installation of the opener.
-
Page 6: Opener Features
Features ThankyouforpurchasingtheATASecuraLift®Automatic Garage Door Opener. This opener is designed to suit sectional overhead and one piece tilt up doors. The components and materials used in this opener are of the latest technology and highest quality. Listed below are some of the many features. Operation To open or close the door simply press the hand held transmitter, the wall mounted transmitter, or optional wall switch for two seconds. -
Page 7: Manual Operation
Over load indicator When the maximum opening and closing capacity of the opener is exceeded the red and green Limits LEDs flash alternately to indicate that an overload has occurred. Auto courtesy light The courtesy light on the opener comes on automatically whenever the door is activated. -
Page 8: Operating Controls
Operating controls P. E. Shunt. The shunt has to be removed when connecting a Photo Electric Beam. NOTE: P.E. Shunt must not be removed otherwise the opener will not function correctly. Remove only when a P.E beam is to be connected. PROG INPUT is used for the connection of the ATA Handheld Programmer for the purpose of editing control and receiver functions. - Page 9 Operating controls Datum adjust screw is used during limits set up to indicate the mid point of the door’s travel. Auto close time button (White) is used to adjust the auto close time. While holding in the auto close button and then pressing the open button the time is increased. Each press will increase the time by 5 seconds.
-
Page 10: Kit Contents
Package contents GDO-7 Securalift ® drive unit Securacode key ring transmitter pack ® Pack includes two keyring transmitters two batteries and one wall mount bracket for ptx4 transmitter Easy access transmitter - EAT-1 (not available some models) Tubes Tube inserts Pipe support assembly Chain Shuttle assembly... -
Page 11: Installation
If the opener is to be fitted to a one piece door without track, exchange the 8 teeth sprocket on drive unit, with a 7 teeth drive sprocket available as an option from Automatic Technology. Locking nuts Step 3. -
Page 12: Determine The Door Type
(on springs) (Fig. 5) proceed with the fig installation from Step 9. Door Sectional door with track fig One piece door with track Door fig One piece door without track - 9 - opyright 2006 Automatic Technology GDO-7V1 SecuraLift® Owner Installation Instructions... -
Page 13: Mounting On A Track Type Door
Mounting on a track type door Step 5. Open the door and find the highest point of travel of the top door panel. Using a level, transfer this height to Track the wall above the floor (Fig. 6) and mark a line 60mm Door above it. -
Page 14: Using Inbuilt Antivibration Brackets
Using anti vibration brackets Step 8b. (Method two) Raise the drive unit from the packing box and support it in a horizontal position with a step ladder, then open the garage door. Rest the opener on the open door and use a scrap piece of wood to bring it to horizontal level. -
Page 15: Mounting - Spring Loaded Door
Mounting on a spring loaded door Step 9. Centre of Door Determine the centre of the door and mark this location on the wall above and on top of the door. Then draw two (2) lines 21.5mm on each side of the door. -
Page 16: Mounting Door Bracket & Arms
Mounting door bracket and arms Step 13. The door bracket comes in two parts. The bottom plate with two mounting holes is used on its own for any one piece doors. The top plate is placed over the bottom plate and uses 4 mounting holes for extra strength. This is used on sectional doors. -
Page 17: Programming The Opener
Setting limits Step 15. Setting travel limits positions method one: via the control panel IMPORTANT NOTE: The OPERATE button will not function until the open and close limits positions are set. fig 15.1. Setting datum position 1. Move the door manually to engage the shuttleassembly onto the chain index. -
Page 18: Setting Travel Limits - Transmitter
Setting limits NOTE: If the status LED is already illuminated when the Inch open button 1 door is half way up then turn the datum adjust screw until the LED goes off then turn back one notch to illuminate again. Inch close button 4 16.2. -
Page 19: Safety Obstruction Force Test
Setting safety obstruction force Step 17. Safety obstruction test Please take care when testing the Safety Obstruction Force. Excessive force may cause SERIOUS PERSONAL INJURY and/or PROPERTY DAMAGE can result from failure to follow this warning. fig 17.1. Testing close cycle 1. -
Page 20: Coding Transmitters
Coding transmitters 18.3. Setting the transmitter to operate pet (pedestrian) mode 1. Press and hold Door Code button and the Close button (Fig. 26). 2. Press the button on the transmitter you would like to use to control pedestrian mode for two seconds, pause for two seconds. -
Page 21: Storing Transmitter From Remote Location
Coding transmitters Step 19. Storing transmitter(s) from a remote location Using this method you don’t need to have access to the control panel on the Door Opener. However, you do need a transmitter that is pre coded to the controller’s receiver. Coding hole IMPORTANT NOTE: The Door or Courtesy... -
Page 22: Accessories
P.E. Beam and auto close 21. Fitting the safety photo electric beam sensor (optional) Locate the Photo Electric Beam (P.E.) normally closed Remove P.E. Shunt contact type in a strategic location within doorway. We recommend 150mm above the floor level and as close as possible to the door opening, inside the garage. -
Page 23: Final Set Up
Final set up 23. Setting of courtesy light time The preset courtesy light time on the door opener is 3 minutes. This time can be changed by the following: 1. Press in and hold both the Auto Close Time button and Force Margin Set button (Fig. -
Page 24: Parameters
Parameters Door Status Indicators Door Opener State Open LED Close LED Door Status Beeper Green LED yellow Open Close Opening Flashing Closing Flashing Door travel stopped Flashing Door obstructed when Flashing opening Door obstructed when closing Flashing Beeps while door is moving Opener overloaded Alternating flashes... - Page 25 Parameters Door Status Indicators Buttons Function Operate Opens/Stops/Closes the door Door code Codes a transmitter button for operate function Light code Codes a transmitter button for light function Door code & Minus (-) Codes a transmitter button for pet (pedestrian function Light code &...
-
Page 26: System Specification
Default settings and specifications Factory Default Settings Default Step Maximum Maximum motor run time 30 secs Courtesy light time 4 mins 10 secs 10 mins Obstruction force margin Auto close time 0 secs 5 secs 4 mins GDO-7V1 SecuraLift® Owner Installation Instructions... - Page 27 System specifications Technical Specifications Maximum residential overhead garage door area 16.5m Door Load Door Load Rated Load: 150N (15kg) Push pull force 600N (60kg) Short term peak load 700N (70kg) Supply voltage: 230 - 240 V AC 50Hz Motor type 1/3 H.P.
-
Page 28: Trouble Shooting Guide
Trouble shooting Symptom Possible cause Remedy Door will not operate Mains power not switched on. Switch on mains power. Door is obstructed. Remove obstruction. Door is locked or motor jammed. Unlock door or remove jam. Door tracks/hardware damaged. Door requires service/repair by qualified technician. -
Page 29: Maintenance Record
Maintenance record Record any maintenance in the following table to assist in any warranty service. Date Maintenance performed by Signature Amount Invoive No. Owner Installation Instructions GDO-7V1 SecuraLift®... -
Page 30: Parts List
Spare parts list When ordering spare parts please quote the order code Number to your installer/dealer Item/description order code Item/description order code 1 Base plate sub assembly 02152 38 Pan serration head screw m4x12 10380 2 Bush 127id 18 04261 39 Pan head screw w/washer m4x10 10340 3 Ac motor it 0.24Kw... - Page 31 Owner Installation Instructions GDO-7V1 SecuraLift®...
-
Page 32: Warranty
Trade Practices Act 1974 (Cth). 2. Subject to all of the matters set out below, Automatic Technology Australia Pty Ltd (“ATA”) warrants: (a) swing and sliding gate opener drive units for twelve (12) months or 2500 cycles, whichever occurs first;... -
Page 33: Warranty And Exclusion Of Liability
©October 2006 Automatic Technology Pty Ltd. All Rights Reserved. SecuraCode® and SecuraLift® are registered trademarks of Automatic Technology. In an ongoing commitment to product quality ATA reserve the right to change specifications without notice. E&OE. Printed For Export. P/N: 13228 Owner Installation Instructions GDO-7V1 SecuraLift®... - Page 34 Automatic Technology Pty Ltd ABN 11 007 125 368 6-8 Fiveways Boulevard Keysborough, Victoria 3173 P 1300 133 944 E sales@ata-aust.com.au www.ata-aust.com.au GARAGE DOOR OPENERS | GATE OPENERS | REMOTE CONTROL ACCESS SOLUTIONS...
